THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 25
Jun 1/03
2H1
24-30-00
(12) Clean the acid recovery sump jar as follows:
(a) Unscrew the bottom of the recovery jar and separate from the top. Remove jar pad.
Observing environmental regulations, empty jar contents into a suitable container for safe
disposal.
(b) Thoroughly wash and neutralize the jar, pad, top (including bracket), and the short length
of manifold overflow/vent line still attached to the jar top with soda solution and clear
water rinse.
(c) Thoroughly dry all components and recharge the jar with 0.75 bicarbonate of soda. Place
dry jar pad in the jar on top of the soda charge.
(d) Screw jar back together and keep it in a vertical position.
(13) Install jar in aircraft, reattach fuselage vent line to sump jar top.
(14) Reinstall battery.

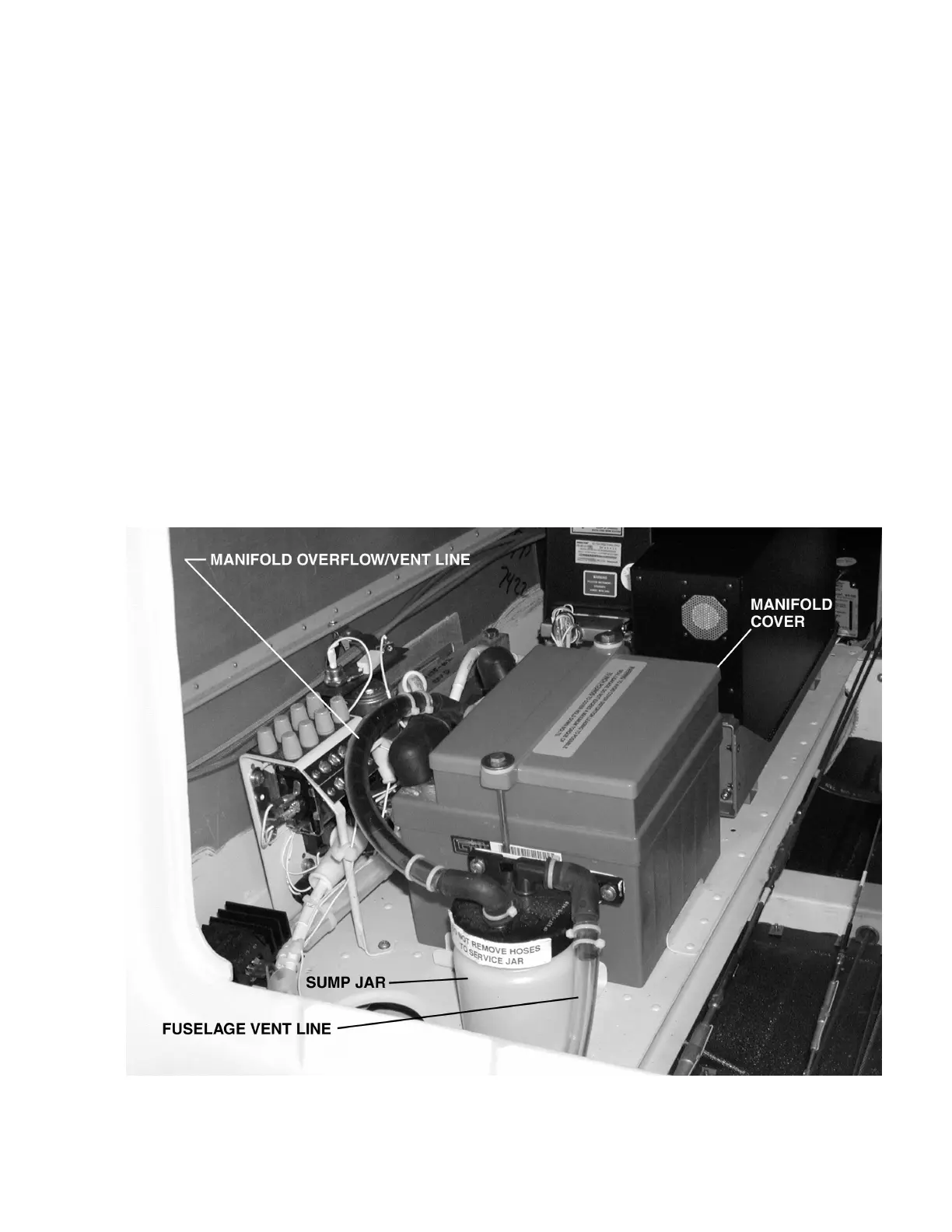

Battery Installation
Figure 22
