THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 8
Jun 1/03
3K2
37-00-00
NO. 1
(UPPER)
OVERBOARD
OVERBOARD
NO. 2
(LOWER)
FIREWALL
VACUUM PUMP
(DRY AIR)
NO. 2
FWD
BULKHEAD
INSTRUMENT
PAN EL
VAC
VENT
GAUGE
FILTER
DIRECTIONAL GYRO
ATTITUDE INDICATOR
STANDARD INSTALLATION
MANIFOLD
VACUUM
SWITCH
REGULATOR
NO. 2
NO. 1
NO. 1
PLUG

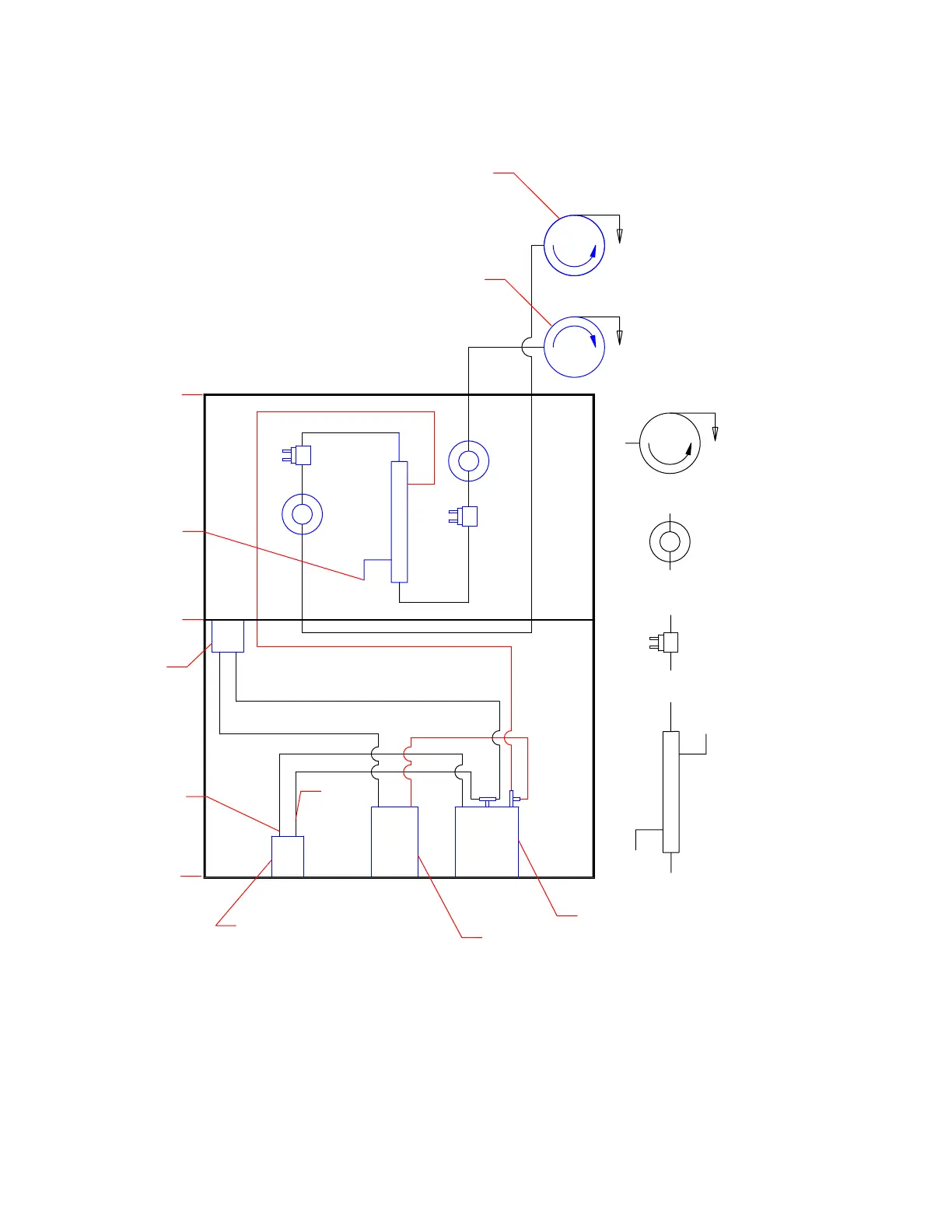

Vacuum System Schematic
Figure 2 (Sheet 1 of 2)
