THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 8
Feb 19/04
3L16
APPENDIX 2

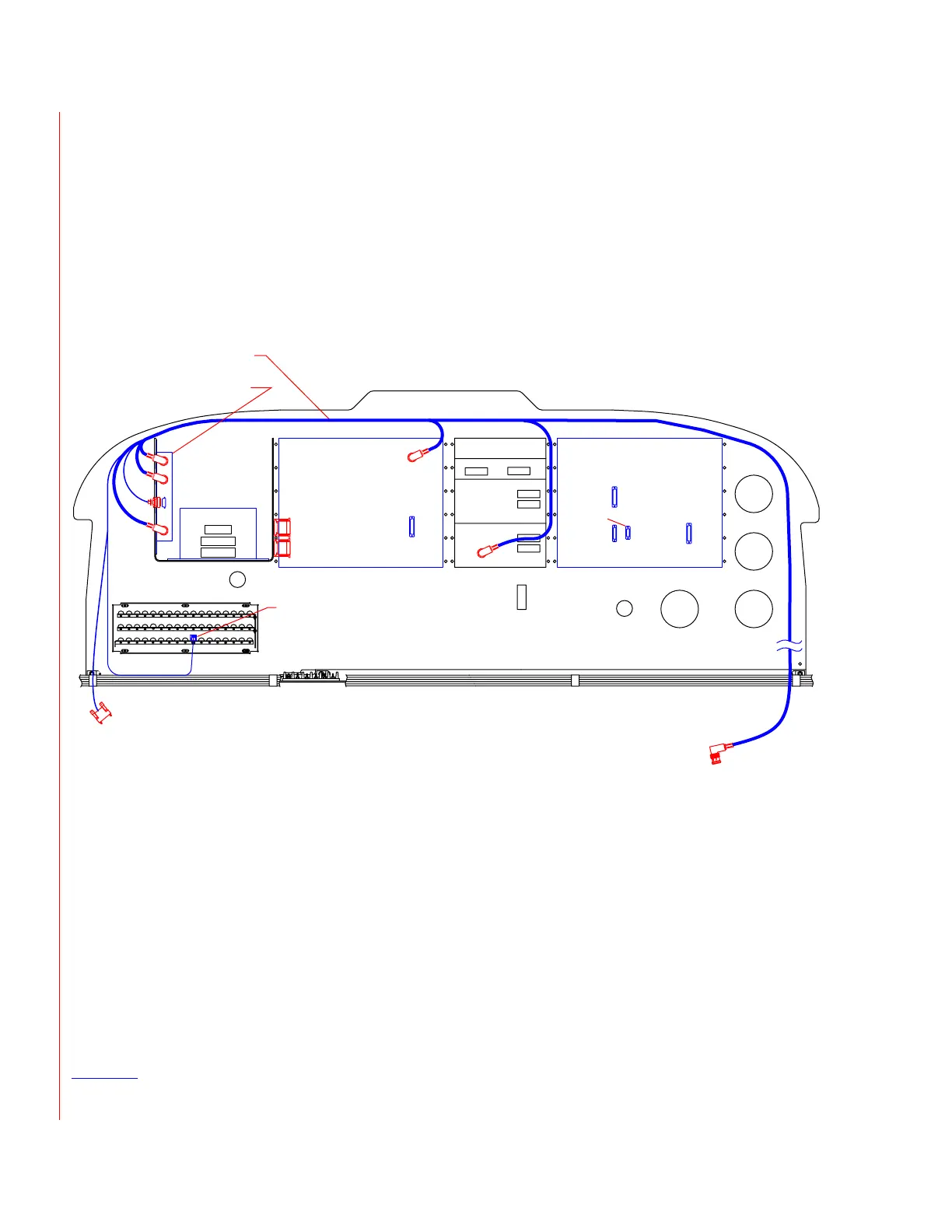

Wiring Harness Installation
Figure 3 (Sheet 2 of 2)
Effectivity
3232014 & up
3255015 & up
CB42
COM 2
ADI
ASI
ALT
GI
106
A/P SWITCH
J530
55X
GMA-340
PFDMFD
GNS 430 #2
GNS 430 #1
COM ANT
TO COM2 / DATALINK ANT
J730
J731
J733
J732
ANTENNA COUPLER WIRING HARNESS INSTALLATION
(LOOKING AFT)
P505
P503
P502
P501
TO GROUND BLOCK
P531
AVIONICS SYSTEM HARNESS ASSY
DAU
J903
J902
J901
DC-50 ANTENNA COUPLER
