THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 3
Jun 1/03
4C13
39-20-00

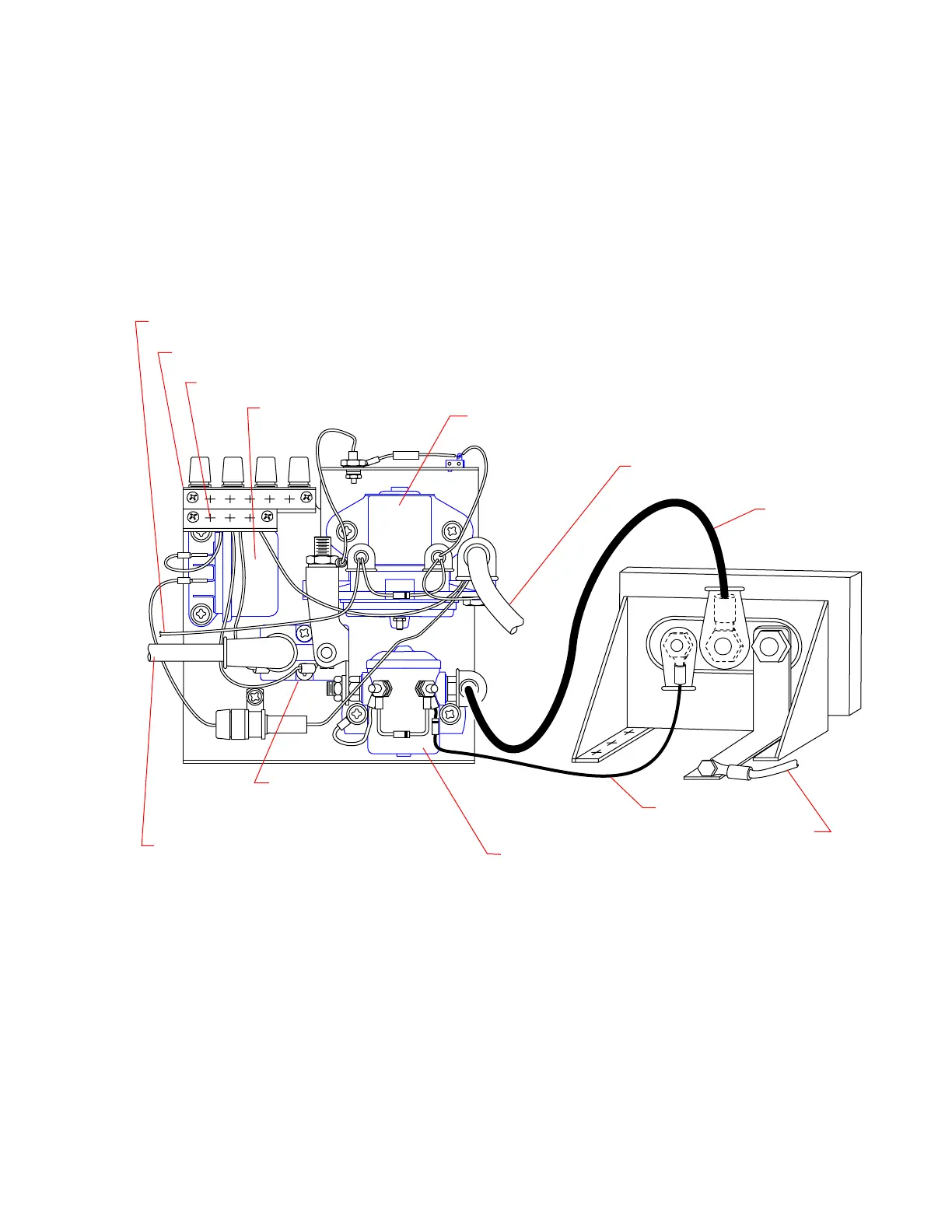

Electrical/Electronic Component Locator
Figure 1 (Sheet 2 of 8)
M1A20 TO COURTESY LIGHTS, CLOCK, HOUR METER
BATTERY MASTER SOLENOID
P1D4 TO BATTERY (+) POSITIVE
P22A20
X1 X2
EXTERNAL POWER CONTACTOR
P4A18 TO BATTERY MASTER SWITCH
P1B4 TO STARTER SOLENOID
P1E4N TO BATTERY (-) NEGITIVE
P20A4
BATTERY SHUNT
BATTERY BUS
RELAY
AFT OF CABIN CLOSEOUT PANEL
RIGHT SIDE, LOOKING OUTBOARD
