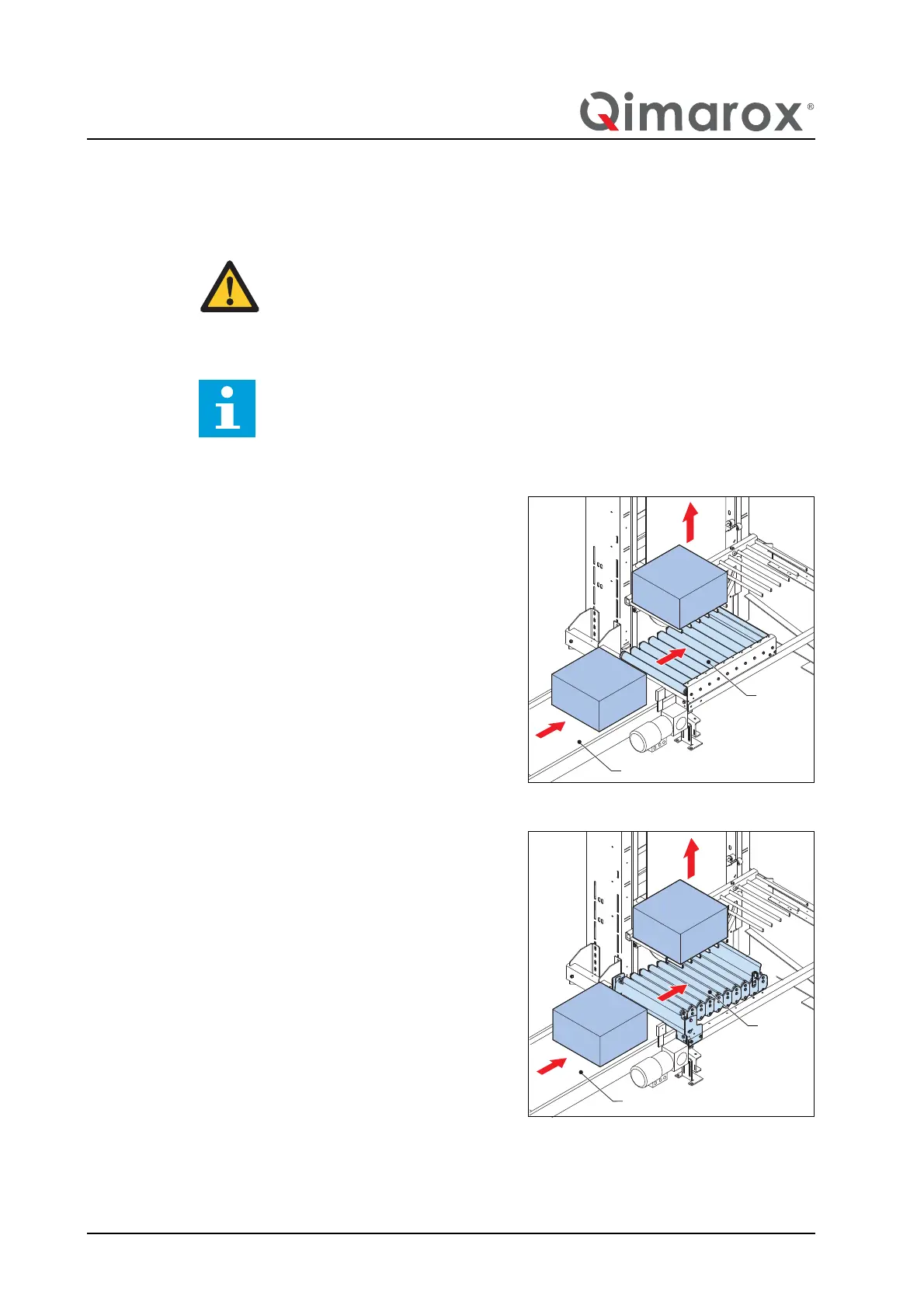

4.2.2 Product infeed configurations
There are various product infeed configurations that can be used, including mirrored
configuration setups. Below are some examples.
Product infeed with 2 driven conveyors
Product infeed with 1 driven and 1 gravity conveyor
DANGER
When the machine has 1 product carrier, the lift has a failure when:
• There is a product on the outfeed conveyor AND
• The product carrier reaches the sensor B3 (D, refer to section 4.1).
Note
In the configurations illustrated below, the count photocell S1 must be mounted
so the opening between products can be detected.
V2
V2 > V1
V1
V2
V1
ZW > V1
