Keeping the product carriers horizontal
Rear side

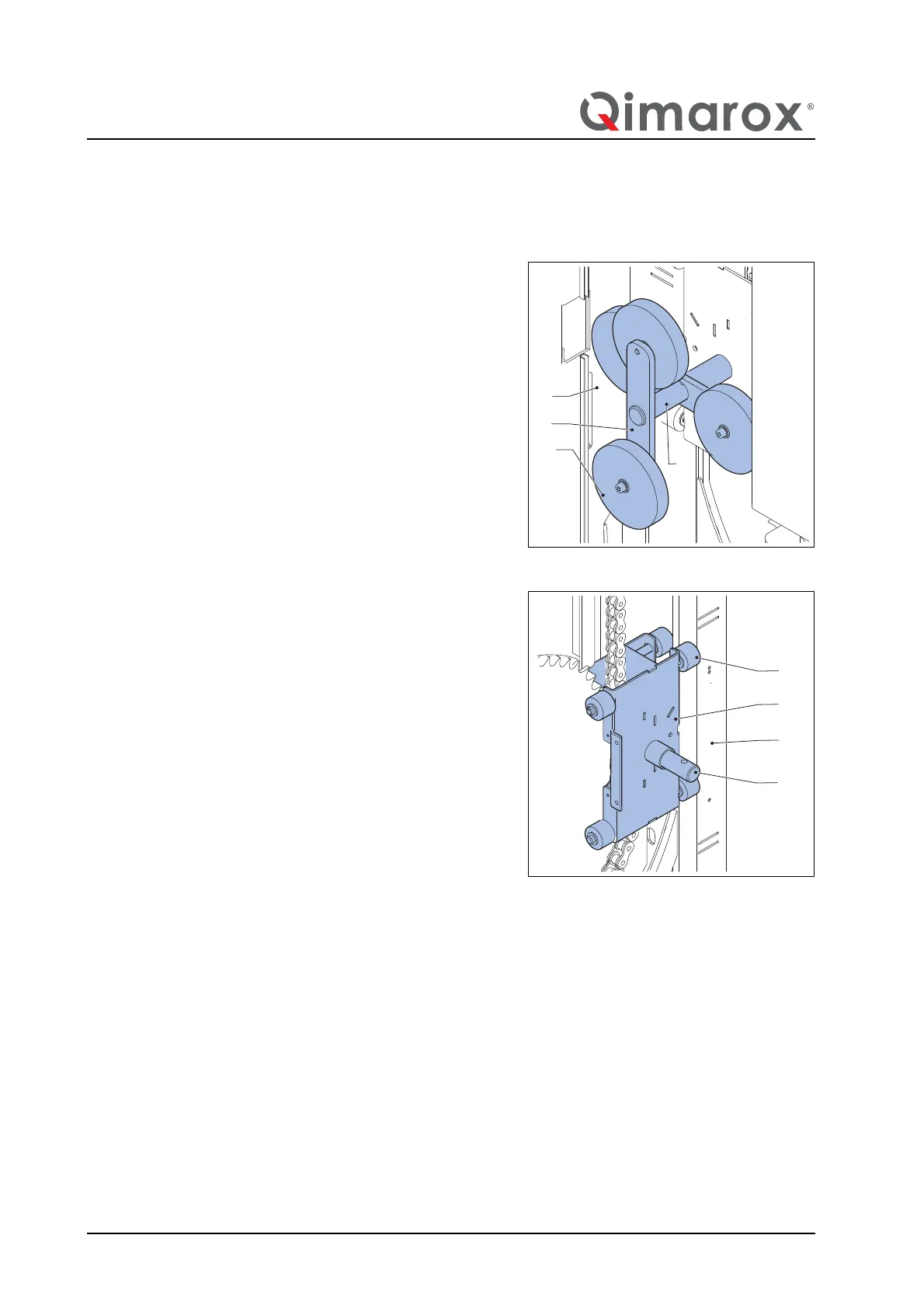

During transport, the product carriers are kept horizontal by a (patented) circulation
system.
AShaft
BGuide
C Wheels of the guide
D Guide bars
The product carrier has been mounted to a
shaft (A) that has been coupled to a guide (B)
with 4 wheels (C). The wheels of the guide run
below and above along guide bars (D) that
keep the product carrier horizontal as seen
from the front of the machine.
Front side
AShaft
B Trolley
C Wheels of the trolley
D Frame
Between the product carrier and the guide
there is the trolley (B) with wheels (C) on both
sides of the frame (D). The trolley keeps the
product carrier horizontal as seen from the
side of the machine.
4.2.4 Product outfeed
The product must be taken from the outfeed conveyor in time to ensure a continuous
running of the machine. This places demands on the outfeed speed and the outfeed
acceleration. See the layout drawing.
The available outfeed time depends on:
• The speed of the product carriers.
• The dimensions of the product carriers.
• The dimensions of the products.
• The speed of the conveyors.
