Application information
40 UM-PRORUNNER_Mk5-1.2-EN-US
Gravity wheel conveyor
Tilting wheel conveyor
The tilting wheel conveyor can be used to
allow for infeed and outfeed at different levels.
5.2.2 Driven roller conveyor
Make sure that the product carriers cannot touch anything during pickup and placement,
as well as while they make their circular movement in the machine. A minimum distance of

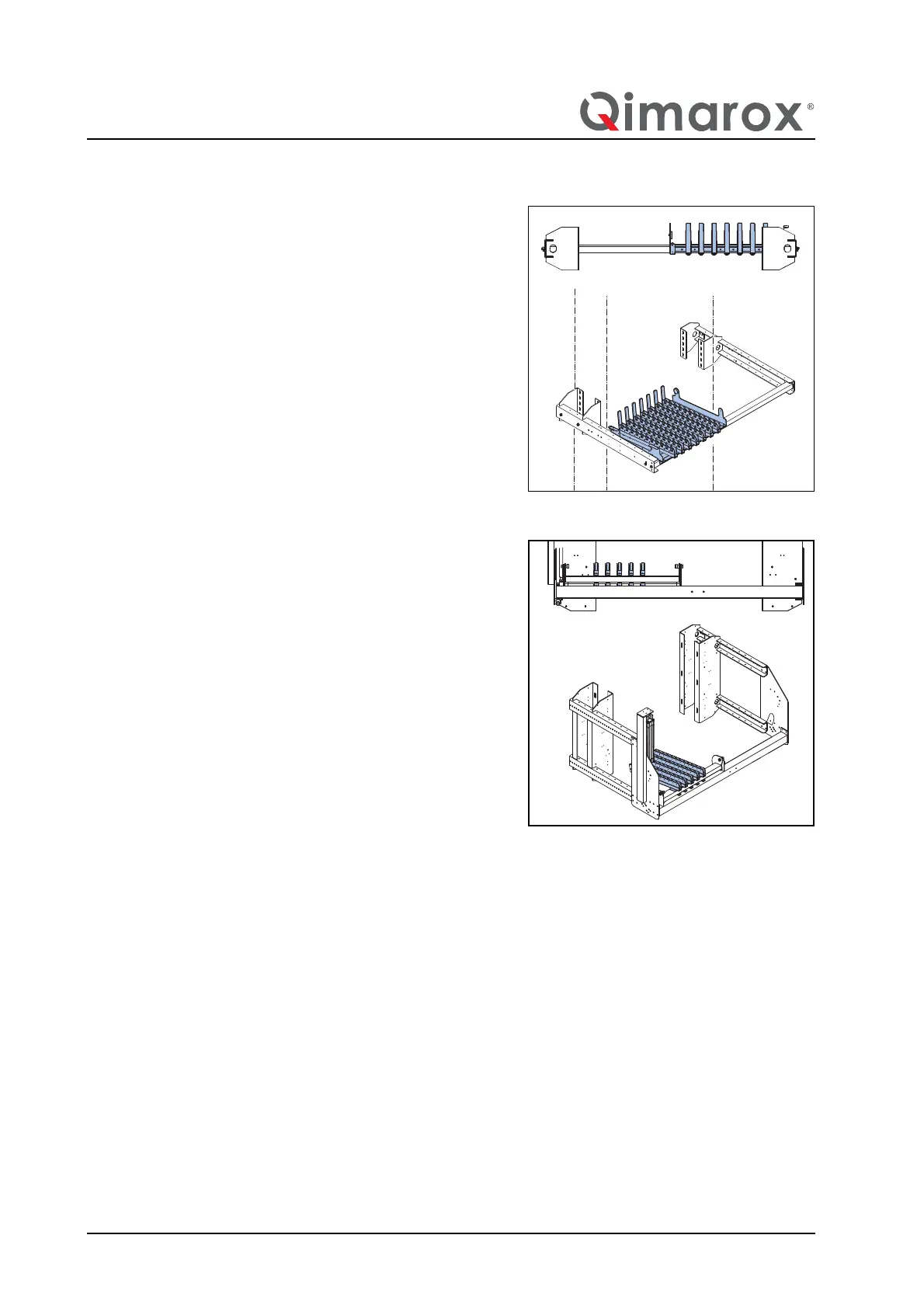

5 mm is required between the moving and fixed parts. See the layout drawing for the pitch
and the position of the fingers.
The drawing below gives examples. A mirrored version is possible as well.
