5.3 Fenced area
Qimarox strongly advises to protect the
machine with a fenced area to avoid persons
accessing the danger zone of the machine.
The fenced area must comply with EN ISO
13857 and EN 619 standards.

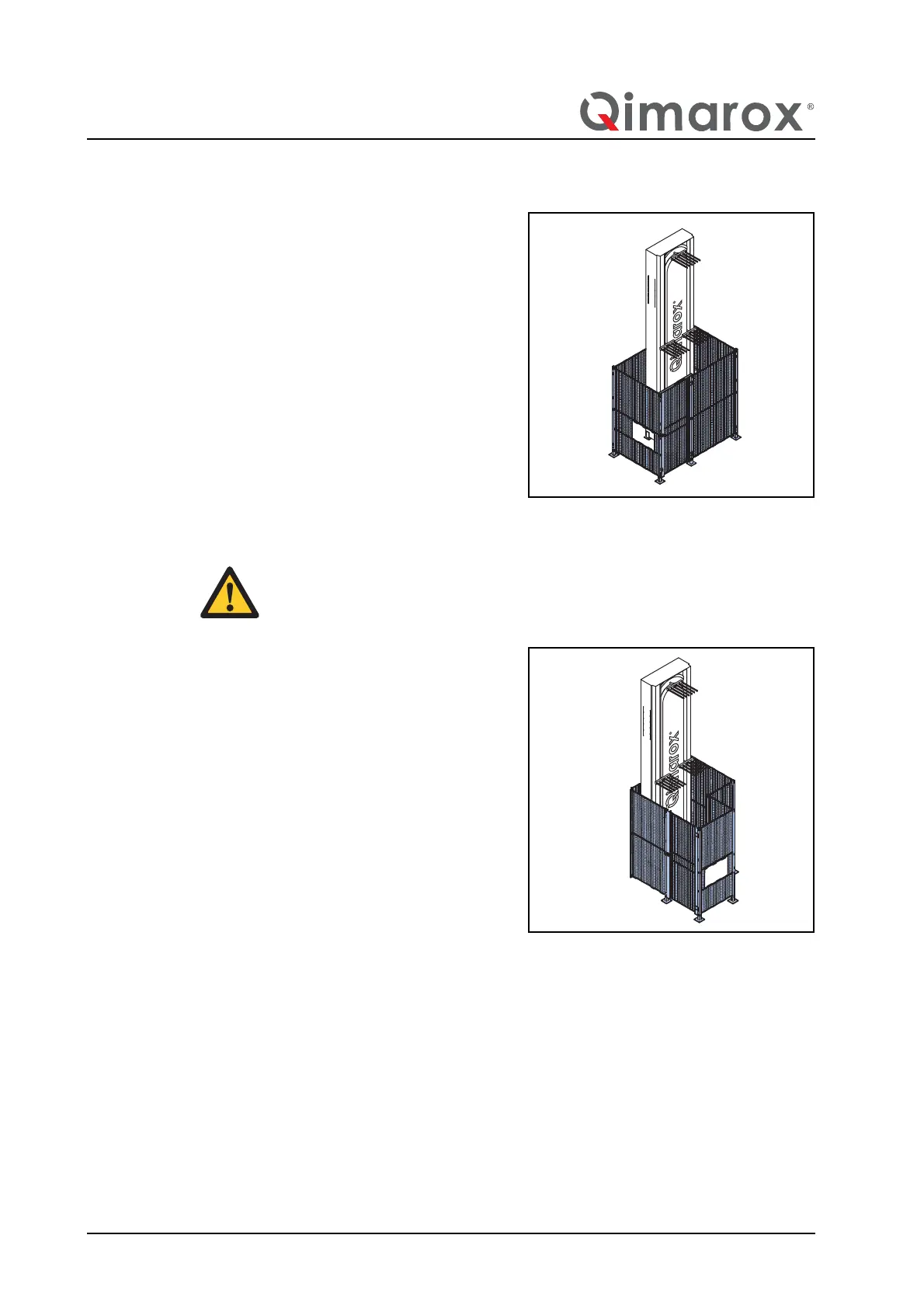

Refer to the figures as examples.
The infeed and outfeed openings of the
machine must be designed such, that they
protect persons against accessing the danger
zone. When this is not possible, these
openings must be provided with a so-called
tunnel guard or blocking device. A tunnel
guard must be designed in accordance with
EN-ISO 13857:2008. A blocking device must
be designed in accordance with EN-ISO
1088:1996.
If the fenced area is fitted with a door, it must
have a safety switch to shut down the system
when opened. Refer to 5.4.2.
The maximum dimensions of the mesh of the
fenced area is 40 x 40 mm (width x height).
If Qimarox supplies the fenced area, the
specifications will be included in the machine
layout drawing.
5.4 Control
The control of the machine should be done from a central control system.
The conditions for the control are included in the technical specifications. When these
control conditions are not met, the emergency stop circuit of the machine must be
activated.
5.4.1 Electrical components
This section describes the sensor and motor electrical components.
DANGER
Make sure that the fenced area complies with local law and rules for protection
against danger.
