Qimarox PRORUNNER Mk5 User Manual

UM-PRORUNNER_Mk5-1.2-EN-US 81
Maintenance vertical conveyor
7.8.11 Replace the drive - helical gear unit
Uninstall the drive
1. Remove the cover at the backside.
2. Disconnect the cables.
3. Remove the bolts (B).
4. Remove the clamping bush (C).
5. Remove the drive (A).
Install the drive
1. Place the drive.
2. Place the clamping bush.
3. Place the bolts and tighten them.
4. Connect the cables.
5. Place the cover at the backside.
DANGER
Before replacing the drive, the drive sprocket wheel must be clamped onto the
frame. If the drive sprocket wheel can turn, this may cause injury. An auxiliary
tool is required for this. You can order this auxiliary tool through Qimarox.
See the illustration in the section 7.8.1.

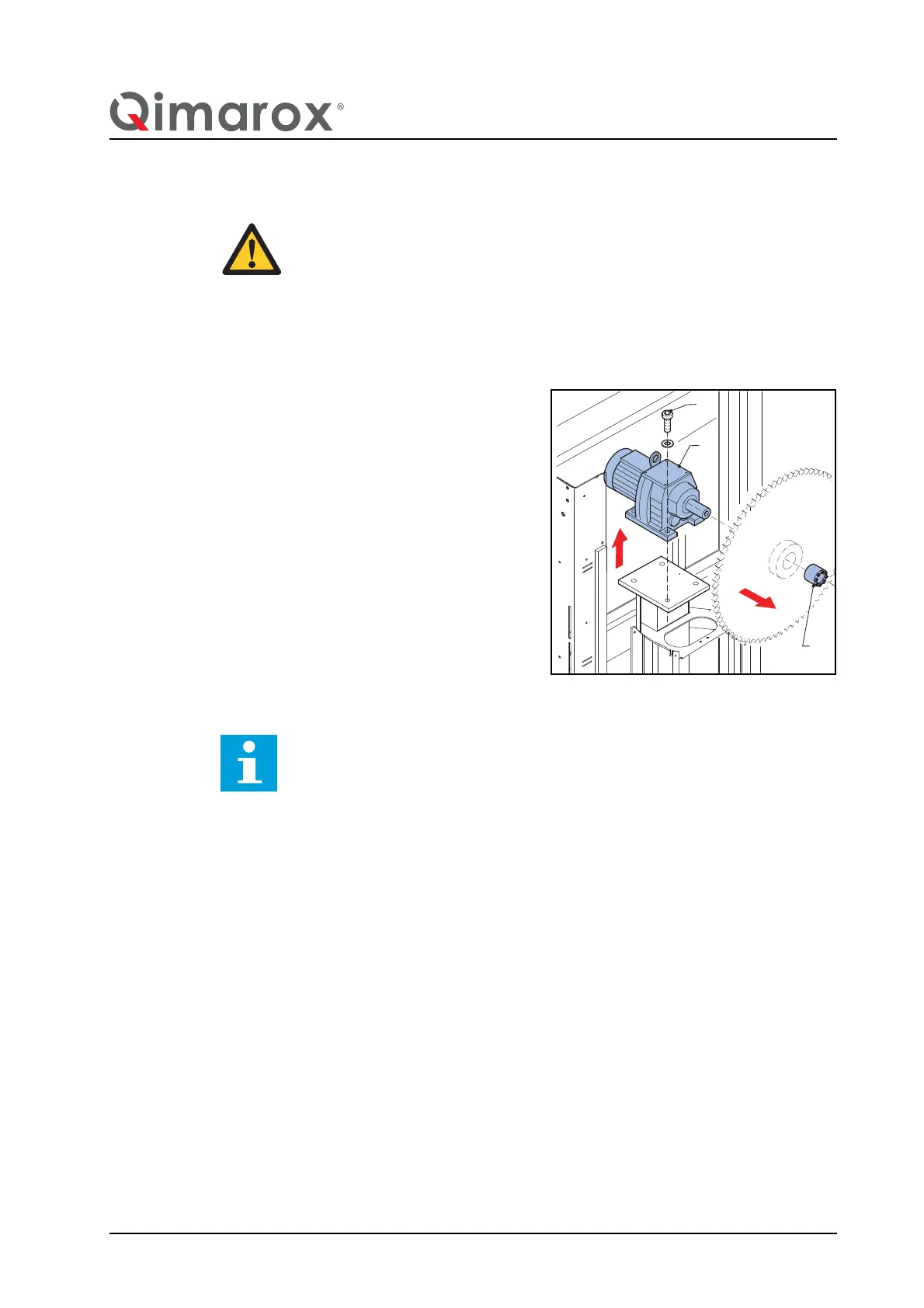

A
B
C
Tip
Illustrations for installing: see the illustrations above for uninstalling.
