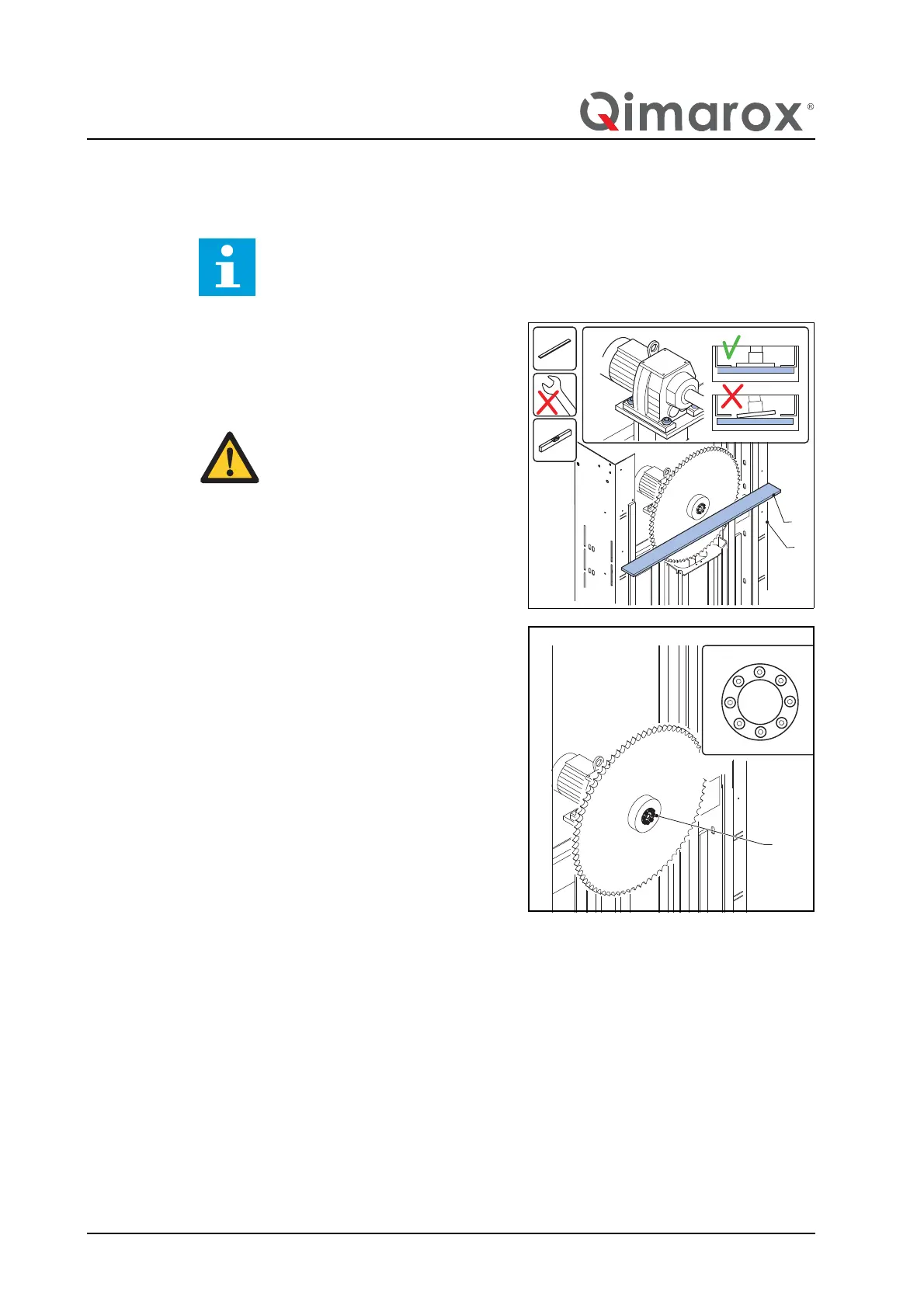

Install the sprocket wheel
1. Install the sprocket wheel with clamping
bush onto the shaft.
2. Align the sprocket wheel. Use a ruler (A)
to align the sprocket wheel with the side
guides (B) of the chain.
3. Fix the clamping bush in the indicated
sequence.
4. Fix the clamping bush.
Use the following torques:
• shaft diameter ≤ 40 mm: 17 Nm
• shaft diameter ≤ 65 mm: 41 Nm
• shaft diameter ≤ 95 mm: 83 Nm
5. Install the chain. Refer to section 7.4.1
6. Install the guard. Refer to section 7.8.1.
Tip
Illustrations for installing: see the illustrations above for uninstalling.
WARNING
A poorly aligned sprocket wheel
will damage the chain.
B
A
1
65
4
3
2
7
8
I
