Measurement setups
R&S
®
LCX Series
52User Manual 1179.2260.02 ─ 02
6 Measurement setups
Measuring components requires the use of suitable measurement adapters, referred to
as test fixtures.
6.1 About test fixtures
Test fixtures provide precise measurements of electronic components, such as passive
components, either with lead wires or SMD modules. They are designed to hold or
directly connect the measurement samples.
All test fixtures provided for connecting to the R&S LCX feature the 4 terminal pair
measurement method.
● Test fixture for axial/radial lead type components................................................... 52
● Kelvin clip lead........................................................................................................ 53
● Test fixture for SMD components............................................................................54
● Test tweezers for SMD components....................................................................... 54
● Test fixture with cables for transformer components...............................................55
● BNC-to-BNC extension........................................................................................... 57
6.1.1 Test fixture for axial/radial lead type components
This test fixture R&S LCX-Z1 is a 4-terminal THT (through hole) test fixture for mea-
surements of both, axial or radial wired components.

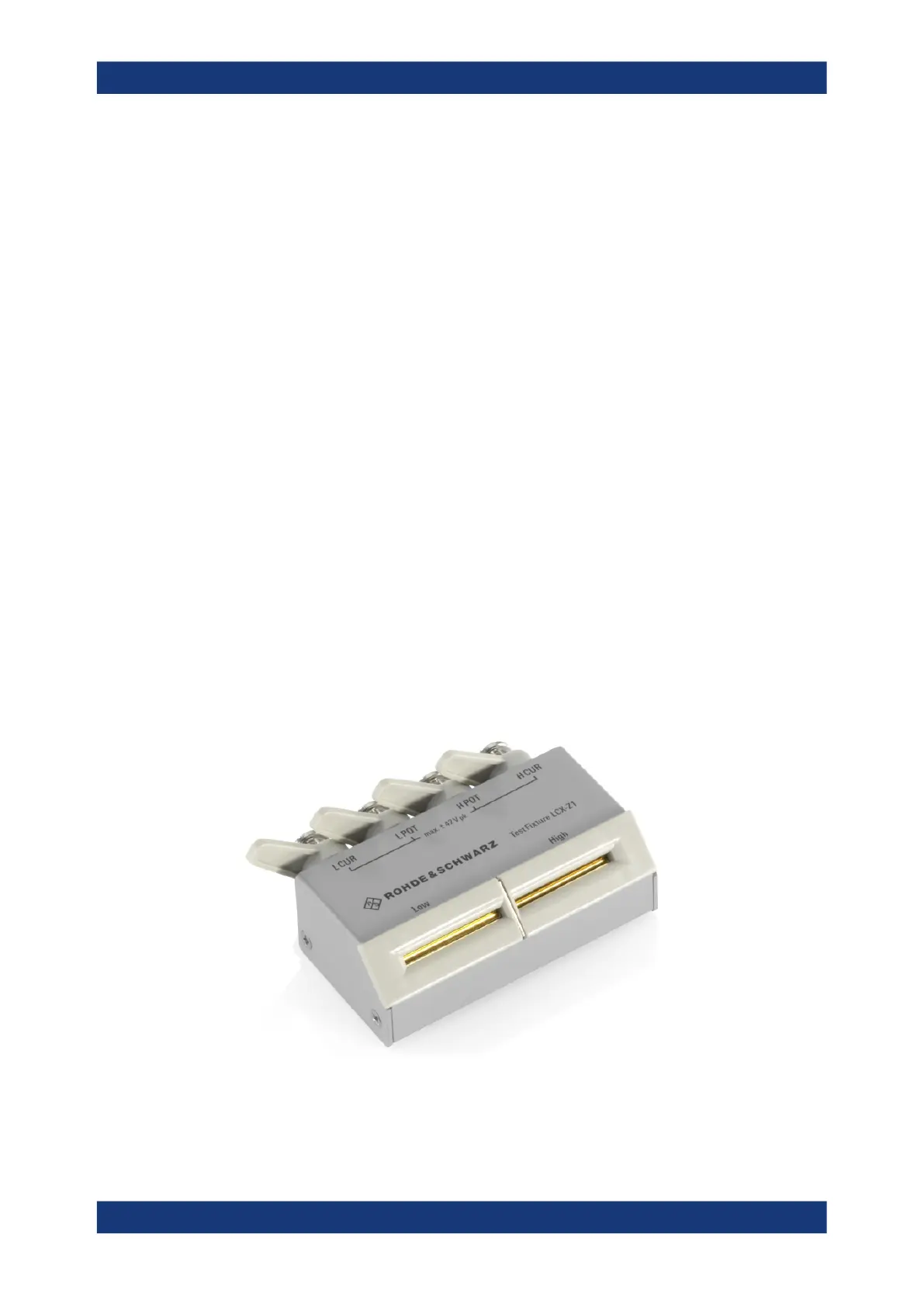

Figure 6-1: R&S
LCX-Z1 test fixture for axial/radial lead type components
About test fixtures
