Instrument functions

R&S

LCX Series

102User Manual 1179.2260.02 ─ 02

4. Depending on the selected interval type, configure the value for the step size or the

number of points to set the values of the sweep parameter within the range.

To start the dynamic impedance measurement process, turn "Enabled".

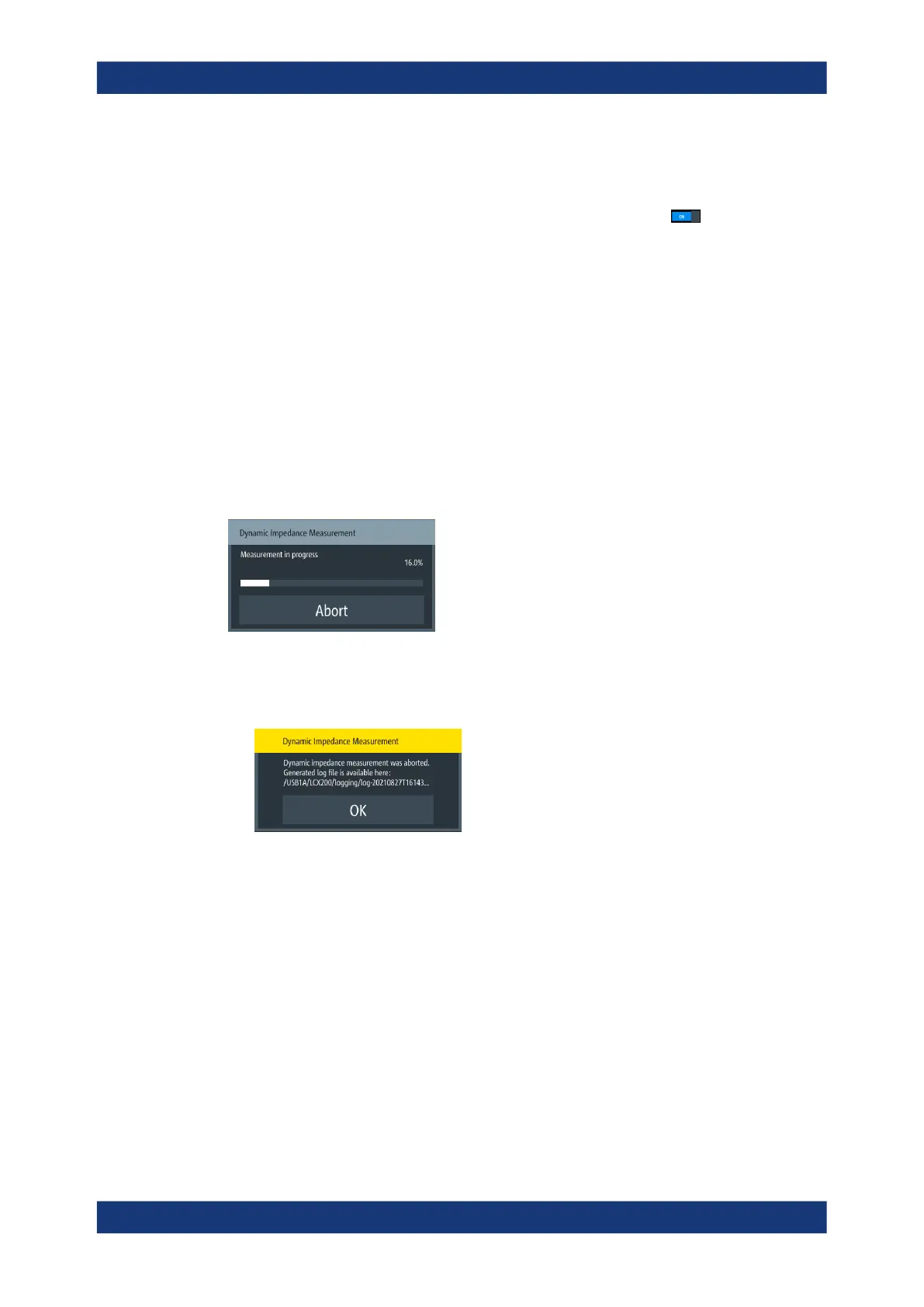

A dialog box appears that shows the progress of the dynamic impedance measure-

ment.

Note: Do not press any buttons on the instrument while the process is running.

Tip: As a dynamic impedance process can take a long time, you can abort the

measurement with "Abort" on page 101.

When completed, the R&S LCX displays a graphical view of the acquired measure-

ment data. It saves the generated log file with the file name indicated on the upper

left side of the screen.

Canceling a dynamic impedance measurement

Once you have started the process, you can cancel the measurement in the progress

dialog displayed.

1. Select "Abort".

The R&S LCX displays a message informing you on the recorded log file and its

storage location.

2. Confirm with "OK".

3. To evaluate the report in the log file:

a) If necessary, connect a USB memory device at the front panel "USB" connec-

tor.

b) Use the file manager to copy the log file to the memory device, see Chap-

ter 9.1.1, "File manager settings", on page 113.

c) Upload the file on a PC.

For evaluation, you can use any application that supports *.csv file format.

8.8.5 Binning

Option: R&S LCX-K107
