8.6.1 Measurement parameter settings
The "Measurement" parameters define additional settings that relate, e.g., to the mea-
surement conditions.
Access:
1. Press the [settings] key at the front panel.
2. Select the "Measurement" tab.

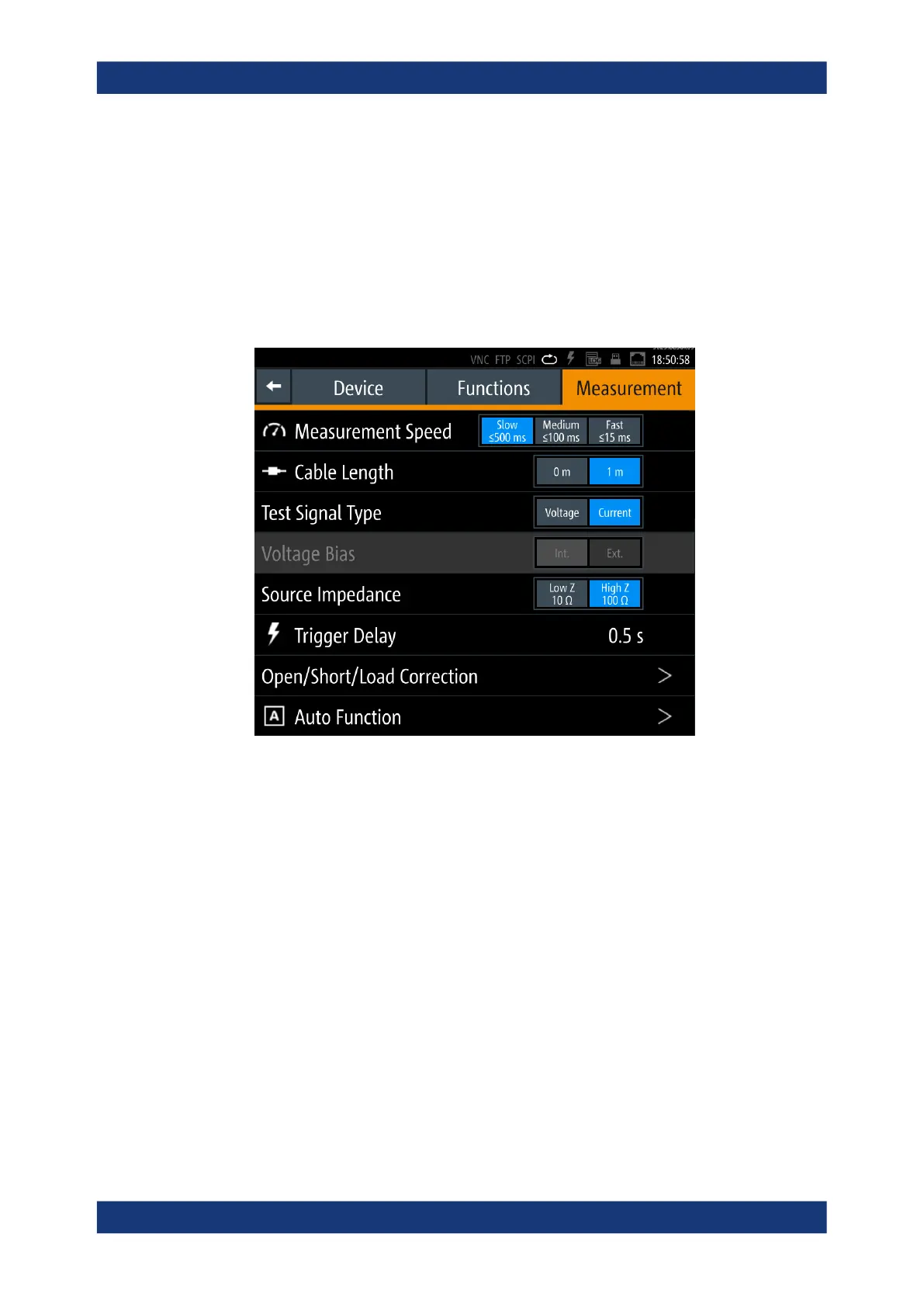

Figure 8-2: Measurement settings dialog
The dialog enables you to configure, measurement conditions, e.g. cable length
from the connected test fixture, external bias of impedance measurement range.
The required remote commands are described in:
● Chapter 11.5, "BIAS subsystem", on page 178
● Chapter 11.6, "CORRection subsystem", on page 180
● Chapter 11.10, "FUNCtion subsystem", on page 194
How to: see Chapter 8.6, "Measurement parameters", on page 73
Measurement Speed.....................................................................................................76
Cable Length.................................................................................................................76
Test Signal Type............................................................................................................76
Voltage Bias.................................................................................................................. 76
Source Impedance........................................................................................................76
Trigger Delay.................................................................................................................77
Open/Short/Load Correction......................................................................................... 77
