R&S LCX Series User Manual

Network operation and remote control
R&S
®
LCX Series
154User Manual 1179.2260.02 ─ 02
Access:
1. Press the [settings] key at the front panel.
2. In the device settings menu, select "Interfaces".
3. Select "Network".
4. Select "VNC".

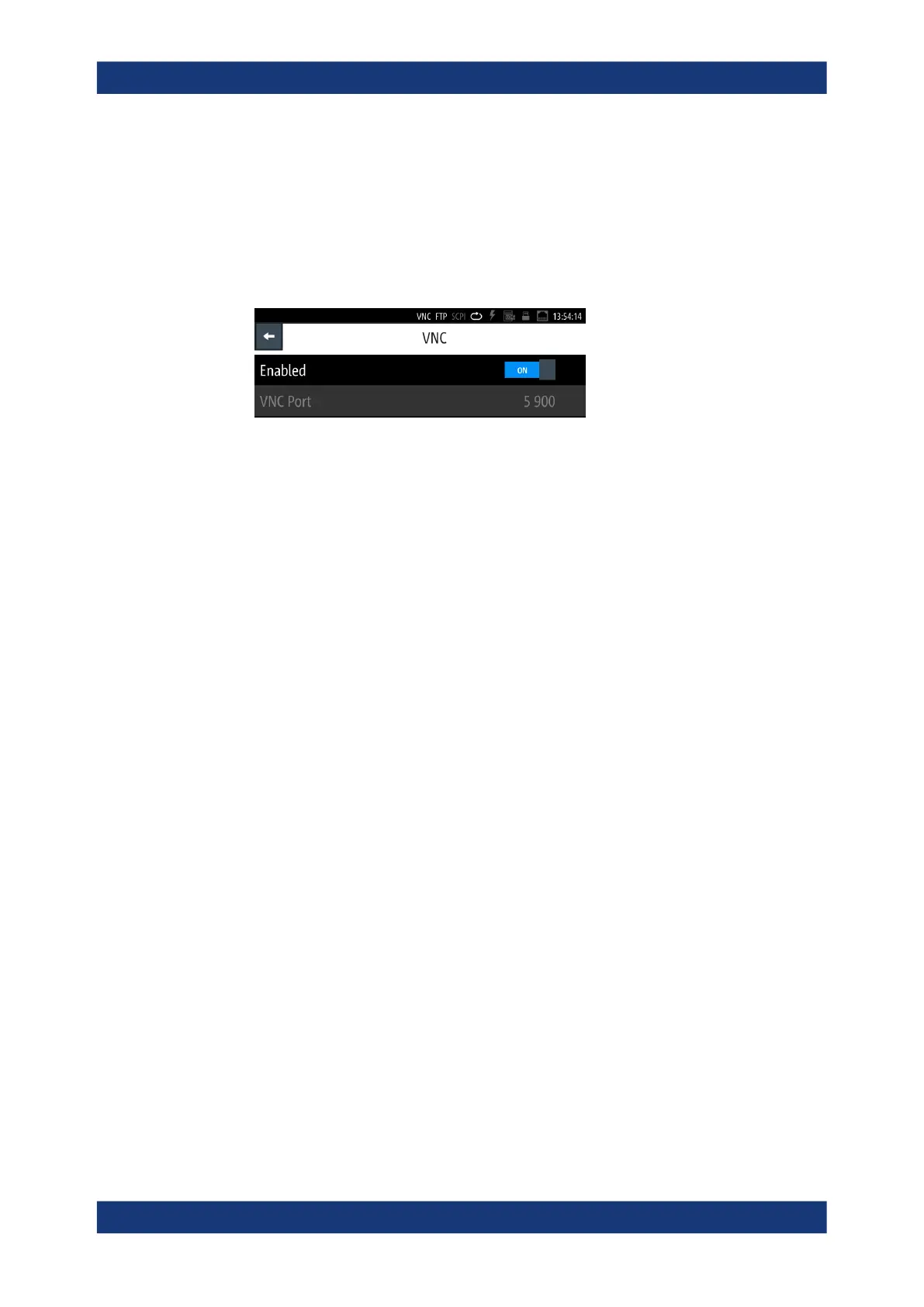

Figure 10-5: VNC settings dialog
The "VNC" dialog enables you to assign a port address for accessing the R&S LCX
over VNC and activate the access.
The remote commands required to configure the network remotely are described in
Chapter 11.15, "SYSTem subsystem", on page 211.
How to: "Assigning the LAN interface addresses manually" on page 159.
Enabled
Activates remote access over the VNC port.
Remote command:
SYSTem:COMMunicate:NETWork:VNC[:STATe] on page 219
VNC Port
Sets the port number for remote control using a VNC client tool.
How to: see "Assigning the VNC port manually" on page 160.
Remote command:
SYSTem:COMMunicate:NETWork:VNC:PORT on page 218
10.3.4 FTP settings
The file transfer protocol (FTP) provides remote access to the file system of an instru-
ment over LAN.
FTP supports the following operations:
●
Upload files from the remote PC (host) to the instrument.
●
Download files from the instrument to the host.
●
Browse the file system on the instrument remotely.
Establish a connection between the computer and R&S LCX in the network, see
"Establishing the LAN connection" on page 21.
Remote access settings
