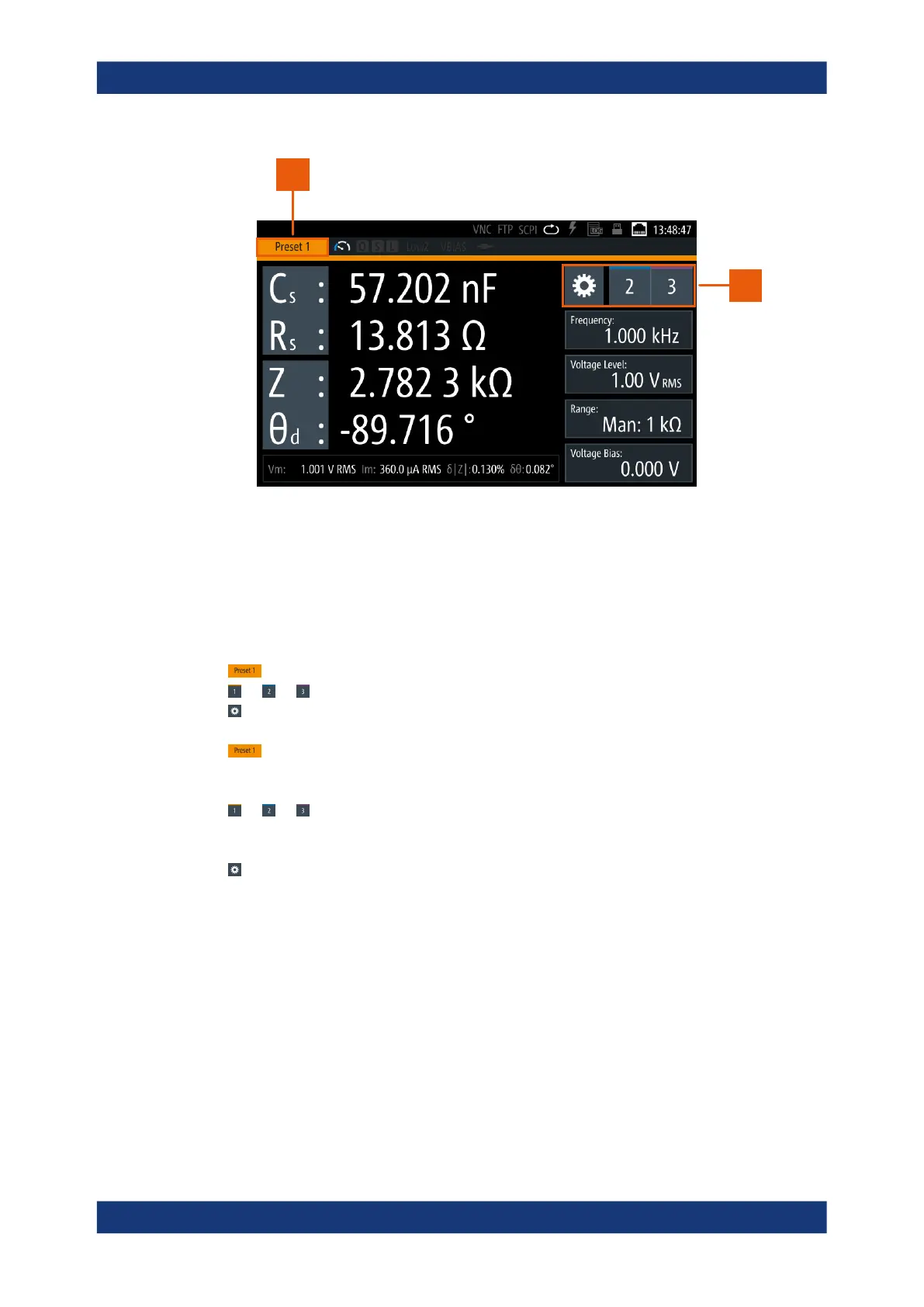

Figure 8-7: Configuration preset indication
1 = Configuration preset indicator
2 = Settings softkey and configuration preset softkeys
The configuration preset softkeys enable you to assign up to three different mea-
surement configurations for quick access.
How to: see Chapter 8.7.2, "Using the configuration preset function", on page 84
Preset 1, Preset 2, Preset 3..................................................................................84
1, 2, 3.................................................................................................................84
(measurement settings).............................................................................................84
Preset 1, Preset 2, Preset 3
Indicates the active configuration preset.
1, 2, 3
Selects one out of three configuration preset memory slots.
(measurement settings)
Accesses a dialog for configuring the parameters that are relevant for the measure-
ment.
See Chapter 8.6, "Measurement parameters", on page 73.
8.7.2 Using the configuration preset function
You can assign up to three configurations relevant for a measurement as favorites, to
skip quickly between different settings, or to repeat tests with the same settings.
Configuration preset
