Instrument functions

R&S

LCX Series

80User Manual 1179.2260.02 ─ 02

Remote command:

CORRection:OPEN[:EXECute] on page 184

CORRection:SHORt[:EXECute] on page 184

Start Load Correction (Spot)

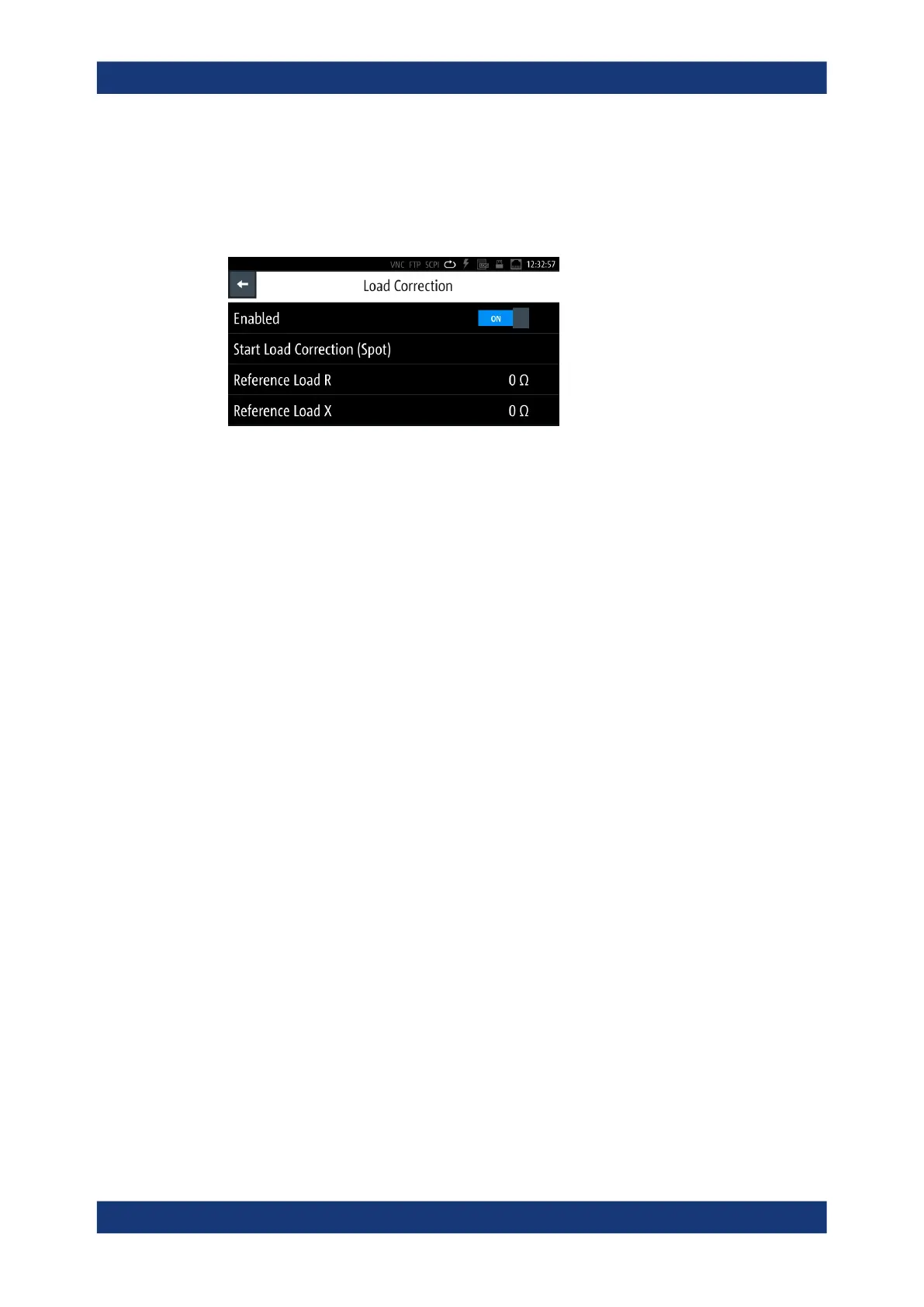

Figure 8-6: Start load correction at one working point with specified reference value

Executes the load correction at a defined working point.

The function requires that you have activated the state, see "Open/Short/Load Correc-

tion Enabled" on page 79 and specified the real resistance and the complex reactance

of the reference component. The R&S LCX, prompts you to connect the specified load.

How to: see "Aligning the instrument using load correction" on page 82.

Remote command:

CORRection:SPOT<Spot>:LOAD[:EXECute] on page 185

Reference Load R

Sets the resistance value as refence for the load correction.

Reference Load X

Sets the impedance value as refence for the load correction.

8.6.3 Setting measurement parameters

The following procedures provide a brief overview of the steps required to perform the

corrections. They point out special features, such as load correction.

Previous steps

We assume that you have prepared the measurement as follows:

1. You have set up and turned on the R&S LCX, see Chapter 4.1, "Preparing for use",

on page 16.

2. You have set the R&S LCX to an initial state, see "Setting the initial state"

on page 32.

3. You have connected the test fixture, see Chapter 4.1.9, "Connecting a test fixture",

on page 23.

Tip: For information on how to handle the connection pins of the individual test fix-

tures during correction, see Chapter 6.1, "About test fixtures", on page 52.

Measurement parameters
