Instrument functions
R&S
®
LCX Series
79User Manual 1179.2260.02 ─ 02
Start Load Correction (Spot)......................................................................................... 80
Reference Load R.........................................................................................................80
Reference Load X......................................................................................................... 80
Open/Short/Load Correction Enabled
Enables the corresponding correction function.
To start a correction process, select the corresponding Start Short/Open Correction
(Full) or Start Short/Open Correction (Spot) entry of the respective correction.
Remote command:
CORRection:SHORt:STATe on page 184
CORRection:OPEN:STATe on page 183
CORRection:LOAD:STATe on page 183
Start Short/Open Correction (Spot)

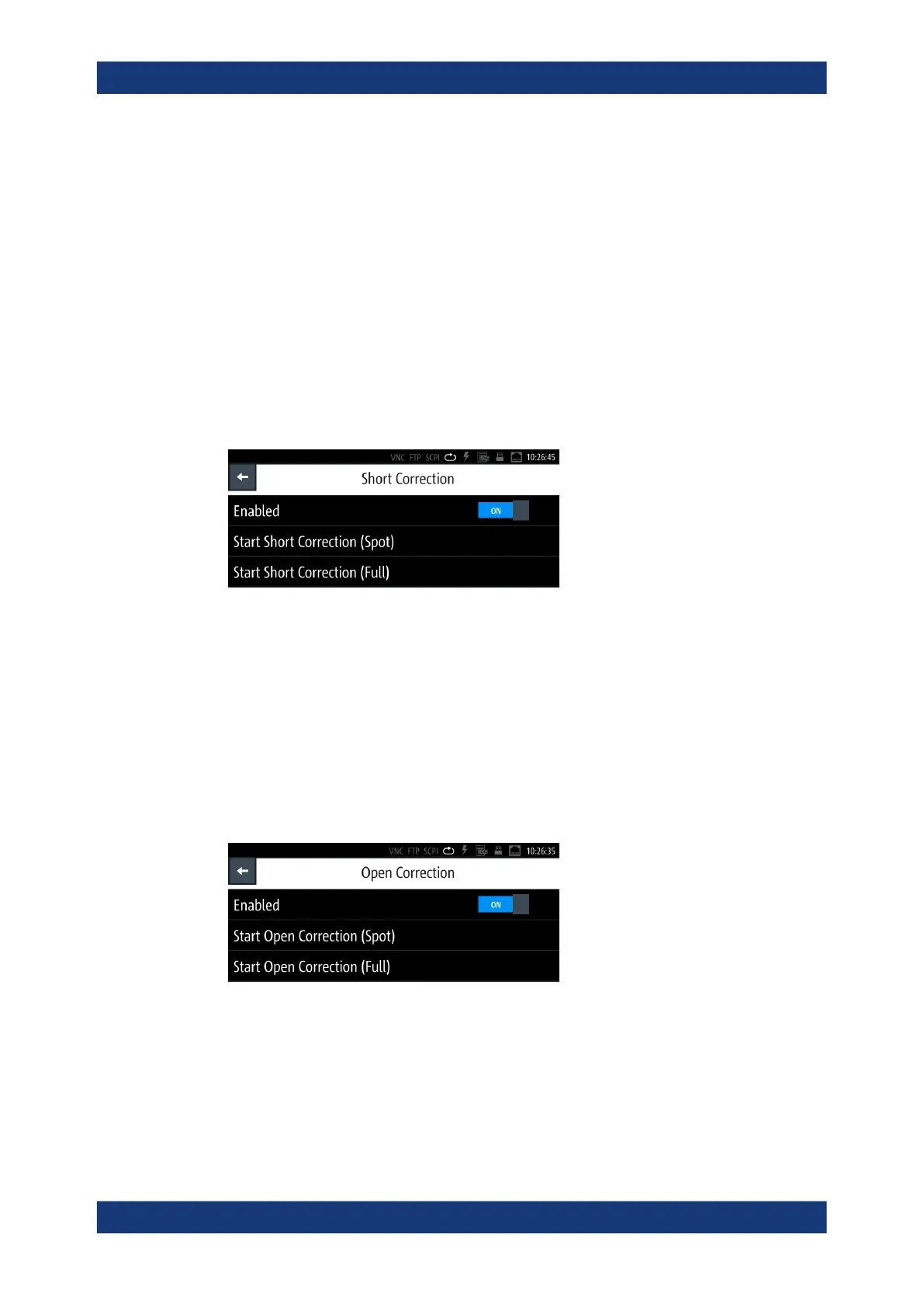

Figure 8-4: Start correction at one working point by the example of the short correction dialog
Executes the correction at a defined working point.
The function requires that you have activated the state, see "Open/Short/Load Correc-
tion Enabled" on page 79, and set the test fixture to open, or short accordingly.
How to: see "Aligning the instrument on a dedicated working point" on page 81
Remote command:
CORRection:SPOT<Spot>:OPEN[:EXECute] on page 182
CORRection:SPOT<Spot>:SHORt[:EXECute] on page 185
Start Short/Open Correction (Full)
Figure 8-5: Start correction on all frequencies by the example of the open correction dialog
Executes the corresponding correction over the entire measurement range.
The function requires that you have activated the state, see "Open/Short/Load Correc-
tion Enabled" on page 79, and set the test fixture to open, or short accordingly.
How to: see "Aligning the instrument on all frequencies" on page 81
