R&S LCX Series User Manual

Instrument functions
R&S
®
LCX Series
88User Manual 1179.2260.02 ─ 02
TB
Indicates the time scaling of the x-axis in the chart.
<measurement parameter>
Indicates the selected measurement parameter with the specified unit per division.
Back
Returns to the "Functions" tab.
Clear
Resets the chart and restarts graphical display of the measurement.
8.8.1.2 Displaying the readings in the live chart
Displaying the results graphically
To display the measurement progress and the readings in the graphic view:
1. Press the [settings] key at the front panel.
2. In the "Functions" tab, select "Live Chart".

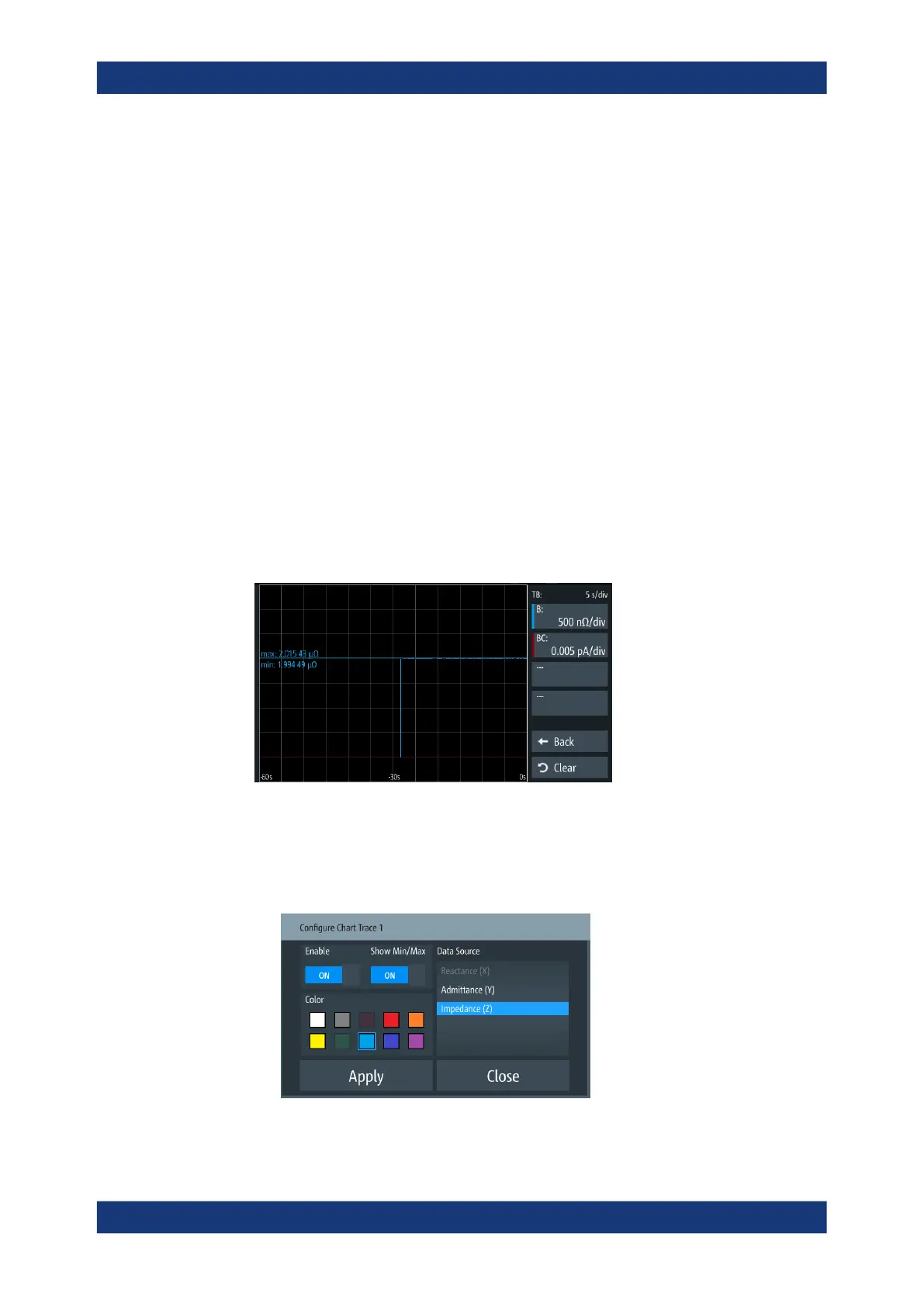

Figure 8-11: Graphic view
3. To configure a parameter for display:
a) Select a parameter softkey on the right of the screen.
The "Configure Chart Trace <n>" dialog opens.
Figure 8-12: Configure live chart dialog
Specific instrument functions
