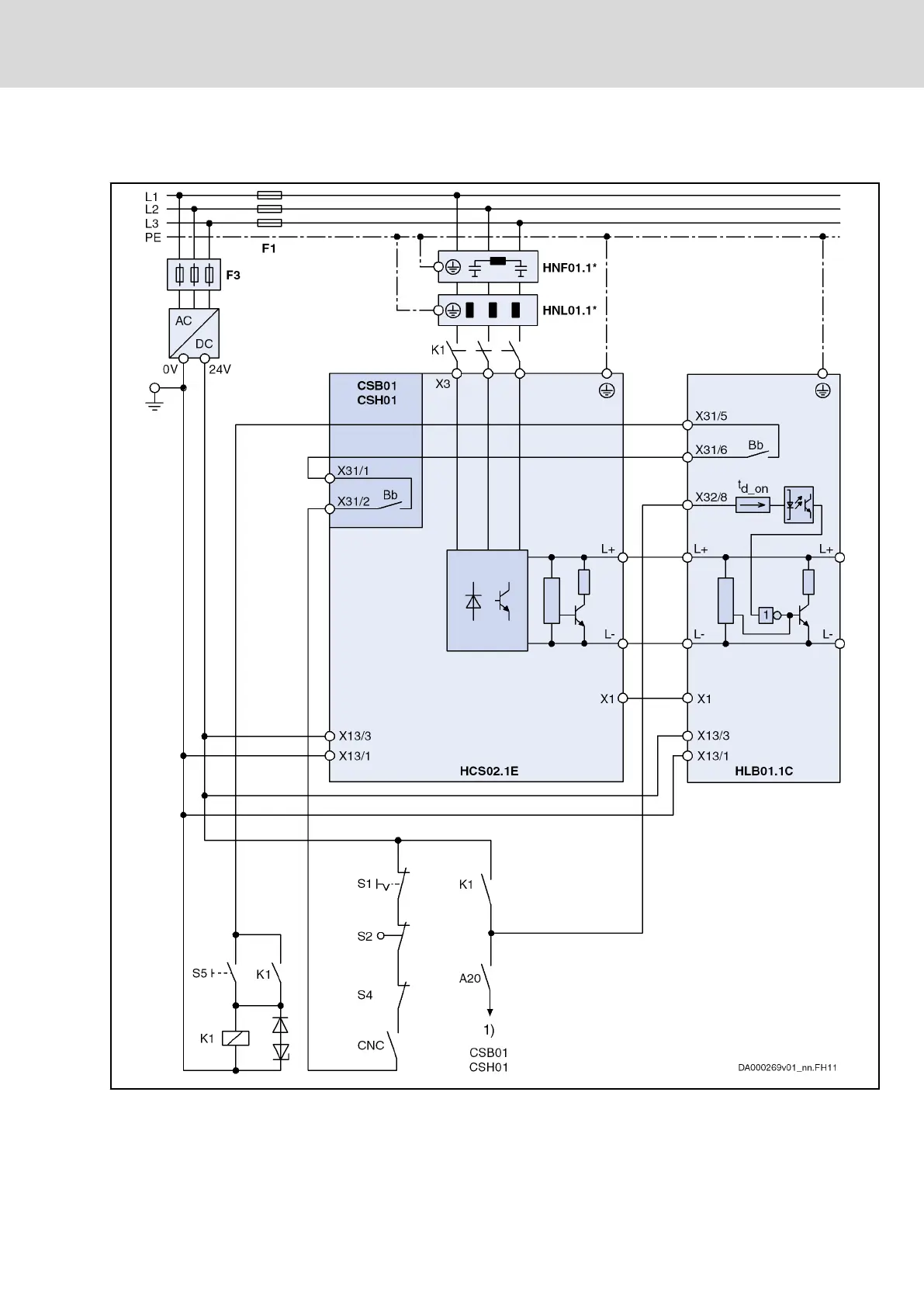

Suggestion for Control Circuit for the Mains Connection of HCS02 Converters and DC Bus Resistor Units
HLB01.1C
* Optional
1) Drive enable (via input at control section or via master communica‐
tion); depending on parameter "P-0-4028, Device control word"
A20 Optional contact for drive enable
DOK-INDRV*-SYSTEM*****-PR06-EN-P
Rexroth IndraDrive Drive Systems with HMV01/02 HMS01/02, HMD01, HCS02/03
Bosch Rexroth AG 149/309
Circuits for the Mains Connection
