HMV* HMV01.1E-W…; HMV01.1R-W…
HMS*; HMD* HMS01.1N-W…; HMD01.1N-W…
K1 External mains contactor K1 required only for HMV01.1R-W0120
HNL Optional mains choke (HNL) for HMV01.1E, required for HMV01.1R
HNF Optional mains filter (HNF); depends on EMC requirements

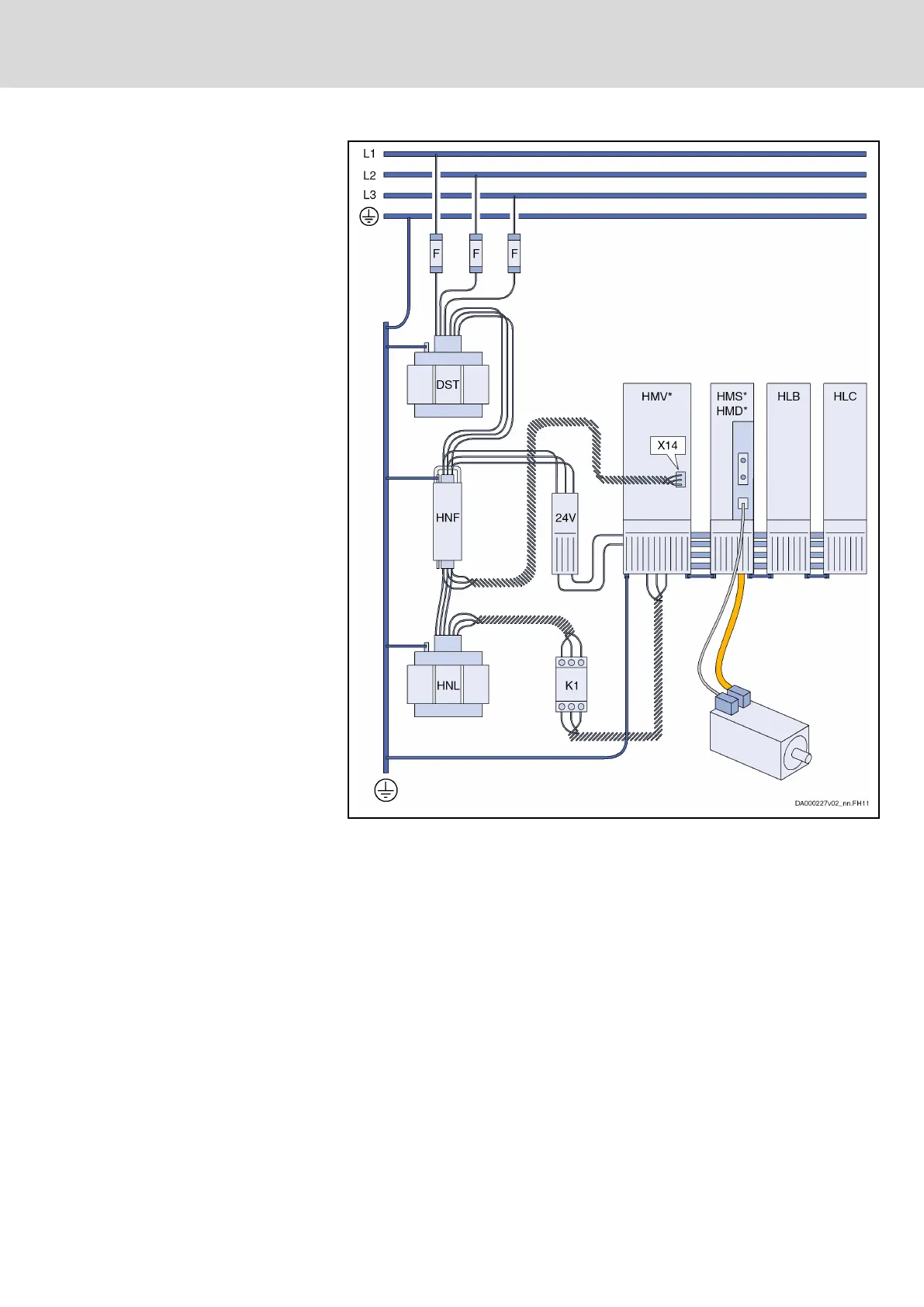

Fig.1-2: Drive System Rexroth IndraDrive M (Series 01)
DOK-INDRV*-SYSTEM*****-PR06-EN-P
Rexroth IndraDrive Drive Systems with HMV01/02 HMS01/02, HMD01, HCS02/03
Bosch Rexroth AG 15/309
