REXROTH IndraDrive - Page 18

HMV02* HMV02.1R-W…
HMS02* HMS02.1N-W…
HLB* HLB01.1C (optional)
HLC* HLC01.1C (optional)

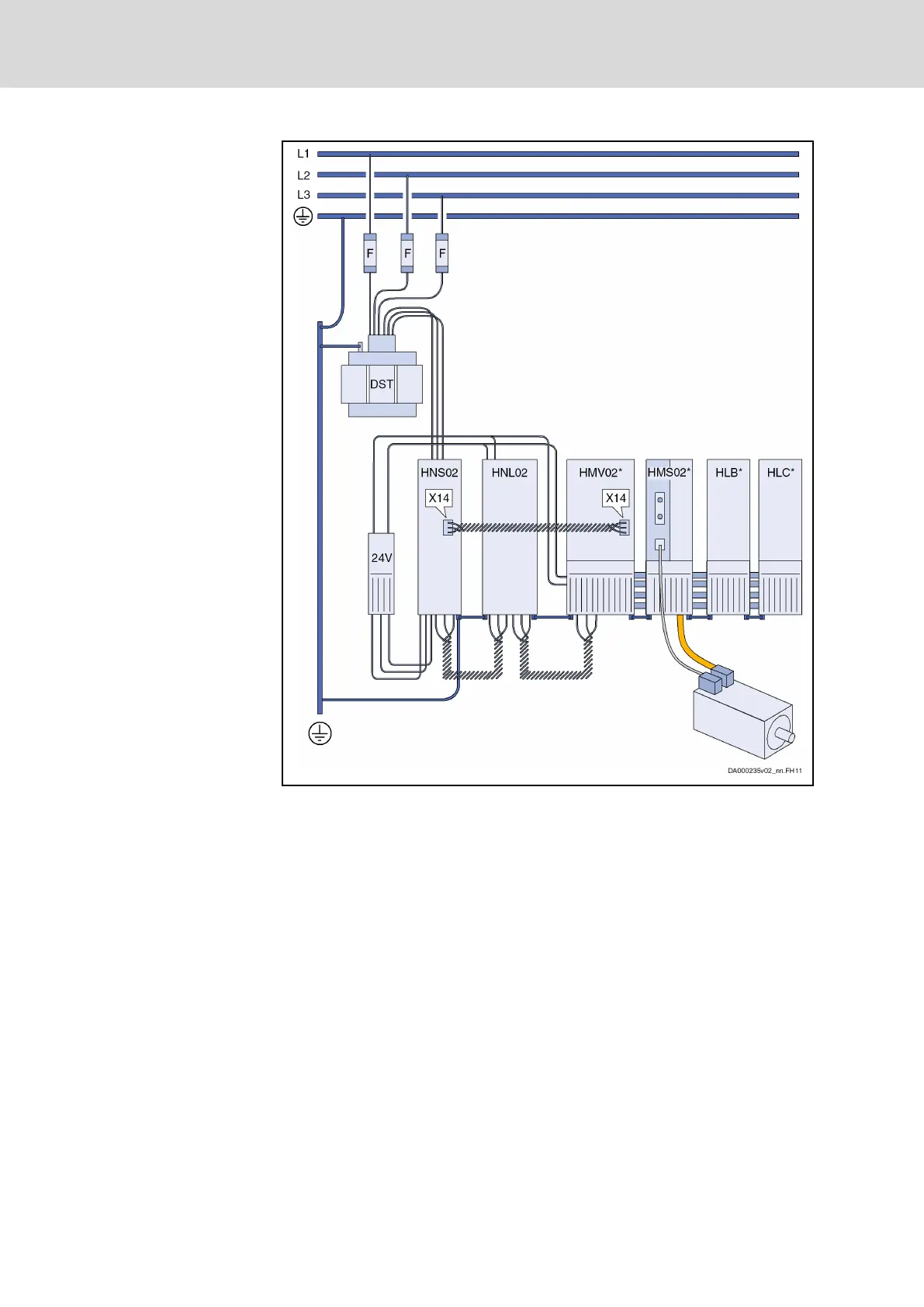

Fig.1-3: Drive System Rexroth IndraDrive M (Series 02)
Bosch Rexroth AG DOK-INDRV*-SYSTEM*****-PR06-EN-P
Rexroth IndraDrive Drive Systems with HMV01/02 HMS01/02, HMD01, HCS02/03
16/309
System Presentation
