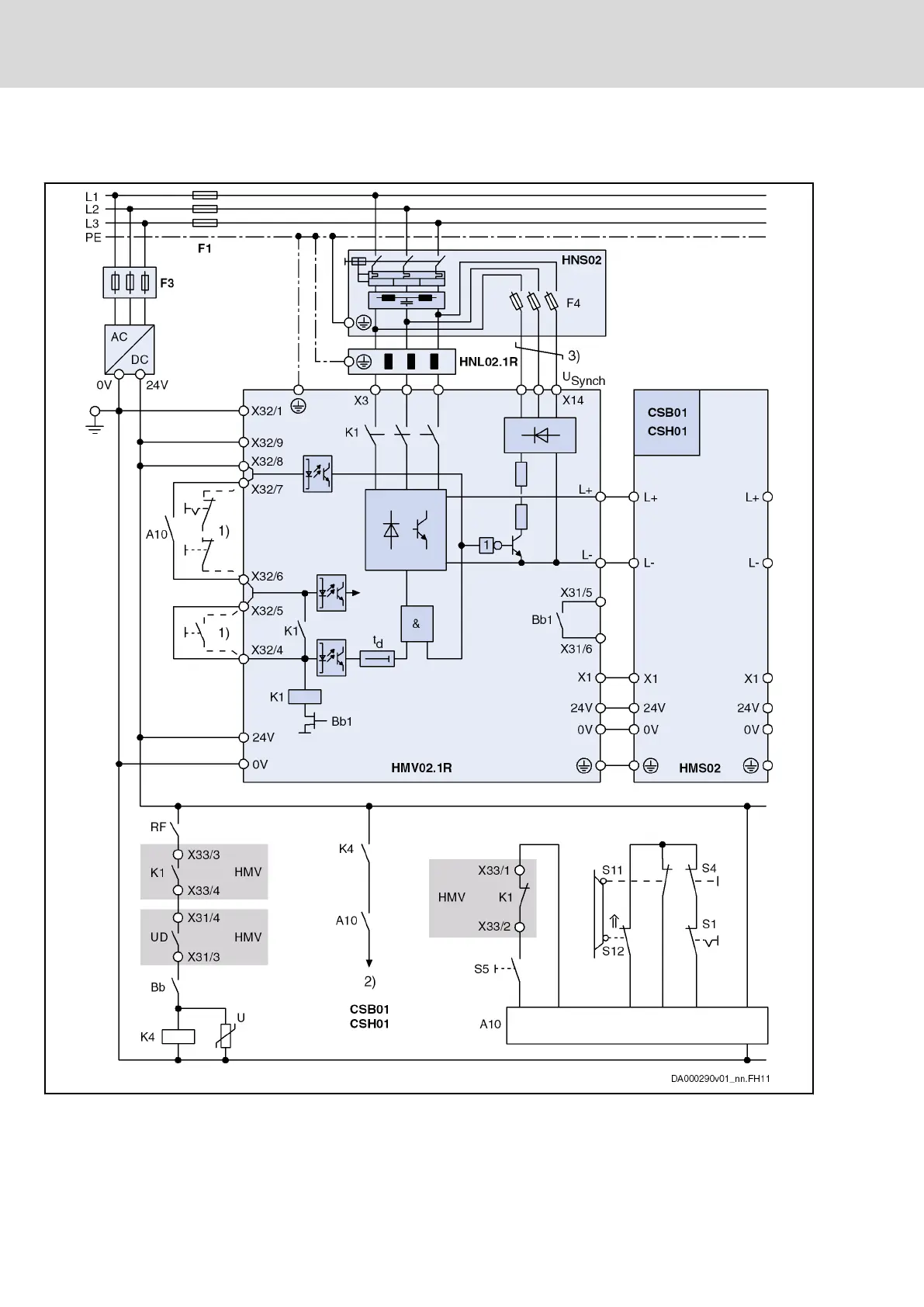

Example Control Circuit "Without DC Bus Short Circuit (ZKS)" for the Mains Connection of HMV02.1R Supply
Units With Integrated Mains Contactor (e.g. HMV02.1R-W0015)
F1 Fuse of power supply
F3 Fuse of 24V power supply unit
F4 Fuse of synchronization connection X14 (integrated in HNS02 mains
filter)
