5.8. Clock

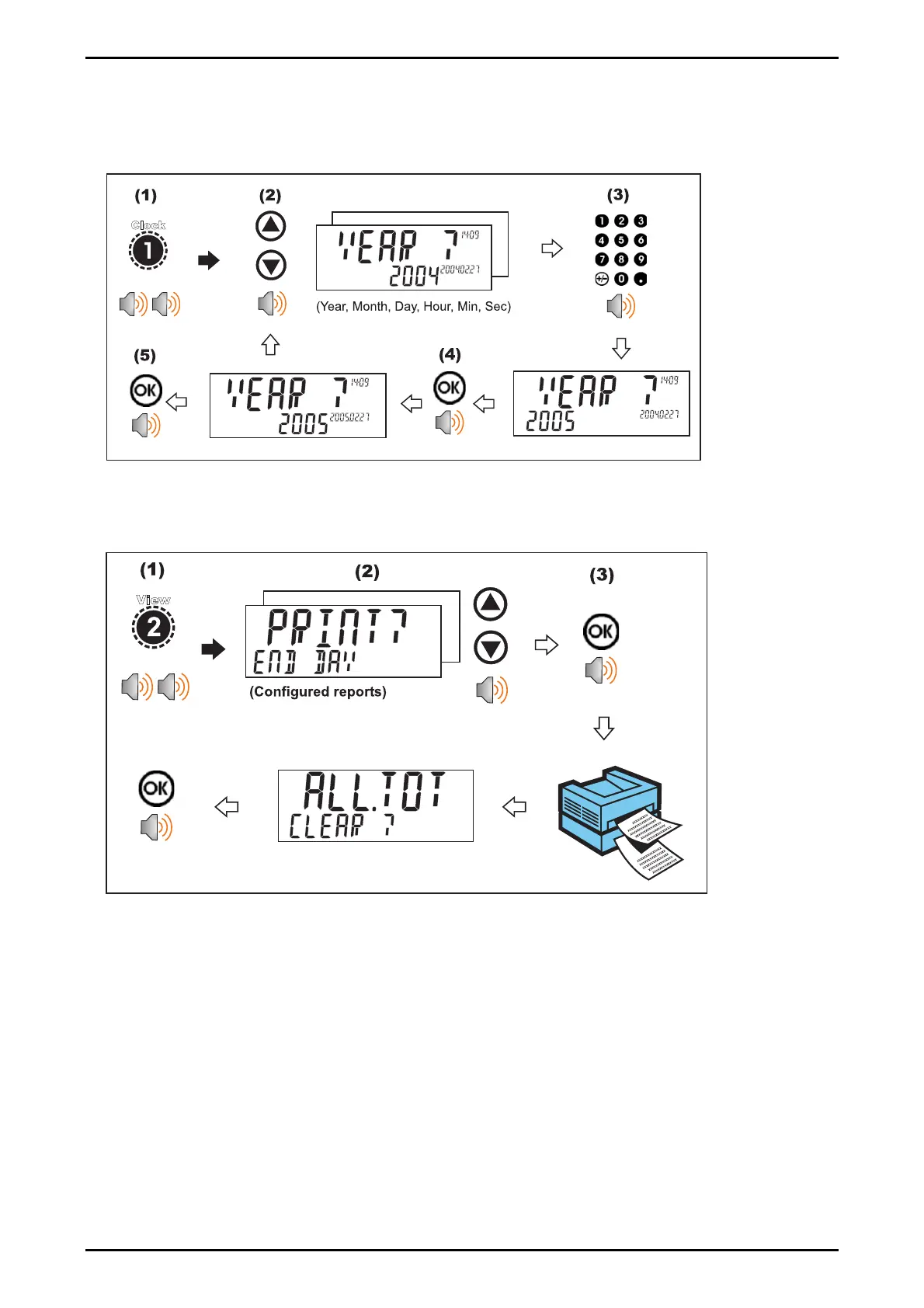

A long press of the 1 key (Clock) allows the system time and date to be viewed and

changed

5.9. Report

A long press of the 3 key (Report) allows reports to be printed.
