3.9.1. RS-232 Serial
Direct Personal Computer Link (RX, TX, GND)

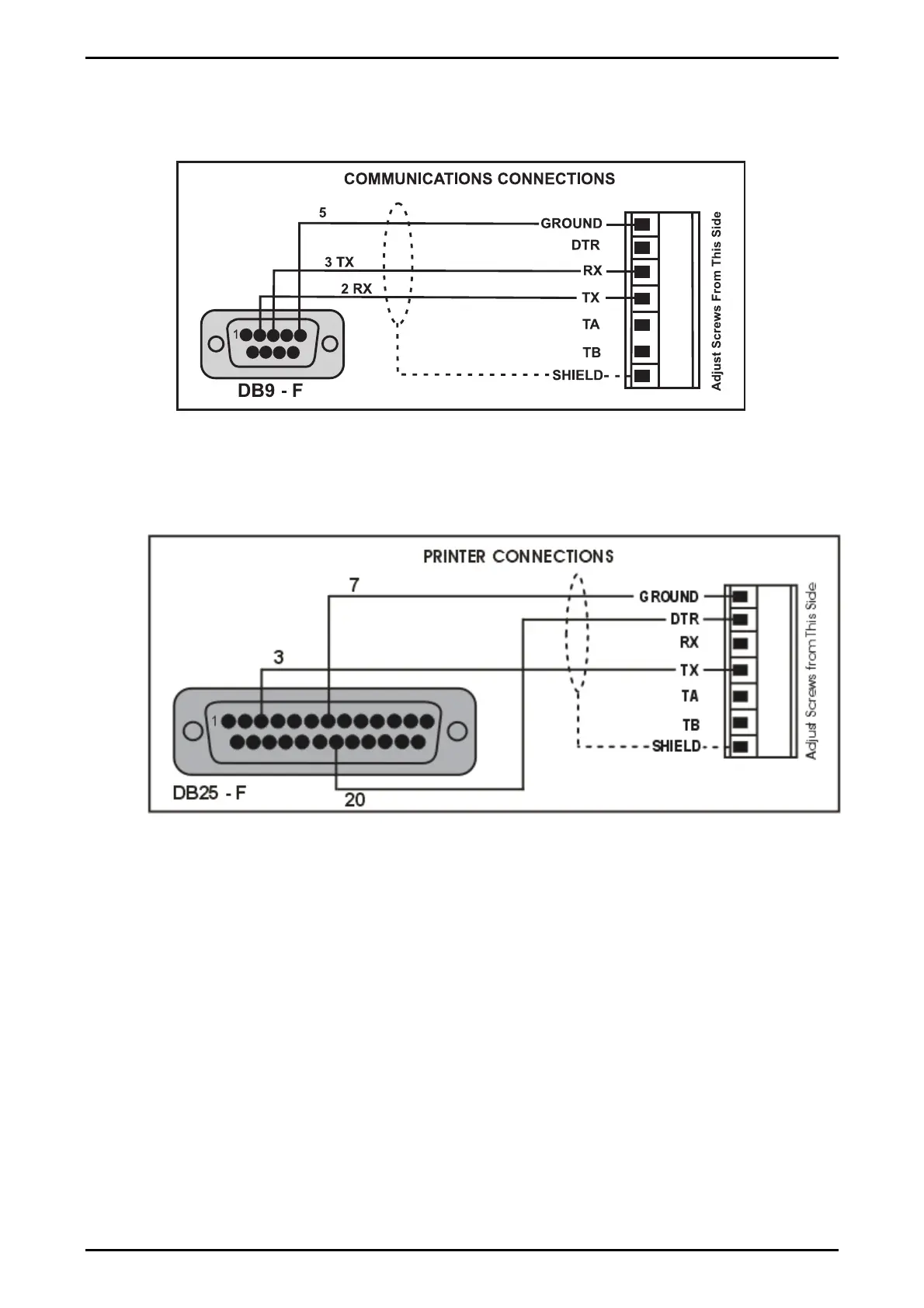

Figure 5: RS-232 - Instrument to PC using COM Port (DB9)
Printer Connections (TX, DTR and GND)
Figure 6: RS-232 – Instrument to Printer (DB25)
Remote Display (TXD, GND)
Refer to documentation supplied with the Remote Display for connection
details. Connect RX on the Remote Display with TX on the instrument and
connect the RS232 GND signals together.
Ring Networks: Multiple Instruments to PC (RXD, TXD, GND)
Instruments with software revision V2.31+ can be configured in a Ring Network
via a M42xx module (software revision 1.01+). This feature is not available on
the inbuilt serial port. This also requires an enhancement in the PC software.
The Short Ring Network layout (Figure 7) can be used in situations up to a total
cable run length of about 150 m (500 ft) at 9600 baud in a clean EMC
environment. If there are communications errors, or for longer cable runs, lower
the baud rate to 4800 or 2400, and/or use the Long Ring Network in Figure 8,
which uses a separate return path from the ‘Last Instrument’ to the PC.
For DB25 connections at the PC connector, refer to Figure 6.
