Reference Manual Rev 1.13
004R-646-113
Page 37
6.1.4.

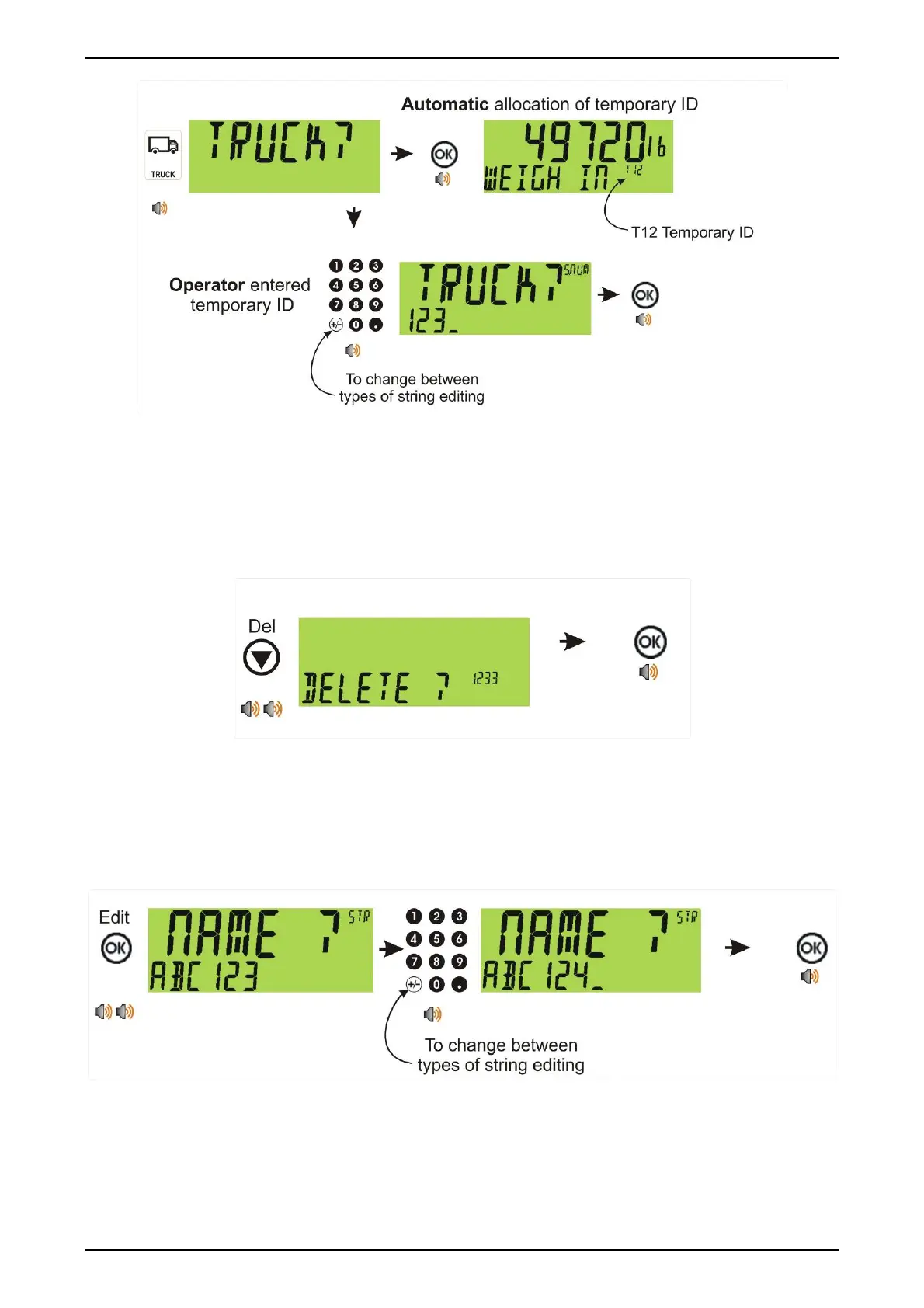

Delete a Truck ID - Long
Press of the Down Key (Del)
A
long
press
of
this
key
allows
the
user
to
delete
a
truck.
Trucks
can
only
be
deleted
if
the
total weight
is
0.
Truck
totals
can be
cleared
using a
long press
of
the
4 key (Total).
6.1.5.
Edit a Truck ID - Long Press of the OK Key (Edit)
A long press of this key allows the user to change the name of
a truck.
36
38
Table of Contents
Table of Contents
1
Introduction
6
Overview
6
The Manuals Set
7
Document Conventions
7
Software Comparison K404, K405 and K422
7
Specifications
8
Installation
9
Introduction
9
General Warnings
9
Electrical Safety
9
Cleaning
9
Panel Mount Template
9
Cable Connections
9
DC Power (DC PWR + , DC PWR -)
10
Load Cell Connection
10
Load Cell Signals and Scale Build
10
4-Wire Connection
10
6-Wire Connection
11
Auxiliary Connections
11
Serial
12
Serial
14
Optical Communications
14
Connecting Shields
15
Cable Shield Connection and Earthing
16
Regulatory Sealing Requirements
16
Accessory Module Connection
17
Setup Menus
18
Accessing Setup Menus
18
Setup Display Prompts
19
Exiting Full or Safe Setup
19
Menu Navigation
19
Changing Data
20
Numeric Entry
20
Selections and Options
21
Strings
21
Normal String Editing
21
Numerical String Editing
22
ASCII String Editing
22
IP Addresses
22
Basic Operation
23
User Interface Display and Controls
23
Overview
23
Display
24
Primary Annunciators
24
Keypad
25
Operation Keys
26
Turn Instrument on - Short Press <Power
26
Turn Instrument off - Long Press <Power
26
Additional Power Information
26
Zero Key
26
Tare Key
27
Setting Preset Tare on a Permanent Truck ID
27
Setting Preset Tare on a Temporary Truck ID
27
Gross/Net Key
28
Truck Key
28
Truck Key to Enter an ID
28
Truck Key to Select a Truck ID
28
Print Key
29
Print (K404)
29
PRINT (K405 and K422)
29
Function Key 3 - Programmable
29
Clock
31
Report
31
Total
32
User ID
32
Target
33
Lock
33
Alibi
34
Switching to Alibi Mode
34
Returning from Alibi Mode
34
Viewing DSD Records in Alibi Mode
34
Acc
35
Stability Considerations
35
Select/Add/Delete Truck Ids
36
Select a Truck ID - Short Press of up and down Keys
36
Add a Permanent Truck ID - Long Press of the up Key (Add)
36
Add a Temporary Truck ID - Truck Key
36
Delete a Truck ID - Long Press of the down Key (Del)
37
Edit a Truck ID - Long Press of the OK Key (Edit)
37
Special Functions and External Keys
38
Overview
38
None
38
Single
38
Test
38
Units
39
Hold
40
Hi.res
40
Sc.exit
41
Truck Weighing Operation-Static (K404)
42
Static Truck Weighing Summary
42
Weighing in
42
Weighing out with Preset Tare
42
Weighing out with First Weight
42
Print Current Weight of Truck
43
Single Pass - Permanent Truck ID with Preset Tare
43
Single Pass - Temporary ID (Operator Entered) with a Preset Tare
44
Single Pass - Automatic Temporary ID Allocated with a Preset Tare
44
Two Pass
45
Two Pass - Automatic Temporary ID Allocated
45
Truck Weighing Operation-Static Axle (K405)
46
Print Current Weight of Truck
46
Single Pass - Permanent Truck ID with Preset Tare
46
Single Pass - Temporary ID (Operator Entered) with a Preset Tare
47
Single Pass - Automatic Temporary ID Allocated with a Preset Tare
47
Two Pass
48
Two Pass - Automatic Temporary ID Allocated
48
Truck Weighing Operation-Dynamic Axle (K422)
49
Print Current Weight of Truck
49
Single Pass - Permanent Truck ID with Preset Tare
49
Single Pass - Temporary ID (Operator Entered) with a Preset Tare
50
Single Pass - Automatic Temporary ID Allocated with a Preset Tare
50
Two Pass
51
Two Pass - Automatic Temporary ID Allocated
51
Configuration
52
General Setup Information
52
Correct Loadcell Selection
52
Filtering Techniques
52
Industrial Vs Trade Modes
53
Calibration Counter
53
Passcodes
53
Full Setup Passcode
54
Safe Setup Passcode
54
Operator Passcode
54
Setup Lock-Out
54
Setup Menus
55
GEN.OPT (General Options)
55
LANG (Operator Language)
55
DATE.F (Date Format)
55
PCODE (Security Passcodes)
55
KEY.LOC (Key Function Access Control)
56
DISP (Display Options)
56
ID.NAME (User Defined Strings)
57
POWER (Power Options)
57
STR.EDT (String Edit Mode)
57
USR.DEF (Set All Non-Calibration Settings to Defaults)
57
H.WARE (Hardware Configuration & Test)
59
Lc.hw
59
Ser1.Hw, Ser2.Hw
60
Eth.hw
61
ETH.DEF (Set the M4221 Ethernet Module to Defaults)
61
Io.hw
62
Dsd.hw
62
SCALE (Loadcell Options and Calibration)
63
BUILD (Scale Parameters)
63
OPTION (Scale Options)
64
CAL (Scale Calibration)
65
QA (QA Alarm)
65
FUNC (Special Functions)
66
NUM (Number of Special Functions)
66
Sfn: TYPE (Function Types)
66
Sfn: KEY (Function Key / Remote Input)
67
Sfn: PRINT (Printing Functions)
67
Sfn: SINGLE (Single Serial Output Functions)
68
Sfn: BLANK (Blanking Functions)
68
Sfn: UNITS (Unit Switching Functions)
69
Sfn: HOLD
69
Sfn: REM.KEY (Remote Key Functions)
70
Sfn: REPORT (Report Printing Functions)
70
Sfn: HI.RES (High Resolution)
70
Sfn: SC.EXIT (Scale Exit)
71
Sfn: TRUCK (Truck Selection)
71
Ser.net
72
SER.AUT (Automatic Transmit)
73
NUM (Number of Automatic Transmissions)
73
Auto.n (Automatic Output Configuration)
73
PRINT (Printouts)
74
NUM (Number of Printouts)
74
HEADER (Print Header)
74
FOOTER (Print Footer)
74
SPACE (Print Blank Space Options)
75
Print.n
75
SETP (Setpoints)
77
NUM (Number of Setpoints)
77
SETP16 (K404 and K405) (Setpoint Options) ............... 77
77
Axle (K405)
80
MIN.WGT (Minimum Weight)
80
IDLE (Idle Time)
80
MODE (Capture Mode)
80
Axle (K422)
81
MIN.WGT (Minimum Weight)
81
HYS (Hysteresis)
81
WINDOW (Window Size)
81
MIN.TIM (Minimum Time)
81
IDLE (Idle Time)
81
OFFSET (Window Offset)
81
ED (Dynamic Reading Count-By)
82
MODE (Capture Mode)
82
IN.STRT (Capture Start Input)
82
IN.MID (MID Capture Input)
82
IN.END (End Capture Input)
82
GROUP (Axle Group Time)
82
DYN.SCL (Dynamic Reading Scaling Factor)
83
I/LOCK (Truck Weighing Interlock)
83
IL.TIME (Truck Weighing Interlock Time)
83
Use Io
83
End (Save and Exit)
83
Calibration
84
Performing a Digital Calibration with Test Weights
84
ZERO (Zero Calibration Routine)
85
SPAN (Span Calibration Routine)
86
Performing a Calibration with Direct MV/V Entry
86
DIR.ZER (Direct Zero Calibration Entry)
86
DIR.SPN (Direct Span Calibration Entry)
86
Using Linearisation
88
ED.LIN (Edit Linearisation Points)
89
CLR.LIN (Clear Linearisation)
89
Calibration Errors
90
Network Communications
91
Introduction
91
Network Protocol RINCMD
91
Basic Message Format
91
Termination
92
Error Handling
93
Ring Network Enhancement
93
Calibrating an Instrument over a Network
93
Network Protocol SIMPLE
94
Network Protocol BARCODE (K404 and K405 Only)
95
Network Protocol LUA BUFFER (K422 Only)
95
Rincmd Examples
96
Automatic Weight Output
98
Overview
98
Auto Weight Format String
98
Printing
100
Overview
100
Print ID
100
Docket Printouts
100
Docket Formats
100
Custom Docket Events
103
Report Printouts
104
Custom Printing
104
Page Tokens
106
Setpoints
107
Overview
107
Outputs
107
Common Settings
107
Weigh in (OVER) Setpoints and Weigh out (UNDER) Setpoints
108
Additional Settings
109
Status Based Setpoint Types
109
Logic Setpoint Types
109
Scale Entry/Exit Setpoint Types
112
Appendix 1: Dimensions
113
Trade Label
115
Lead Seals
115
Destructible Sticker Seals
115
Electronic Seal
115
Appendix 2: Print and Automatic Transmission Tokens
116
ASCII Codes
116
Use of Characters in the Extended ASCII Table
116
Tokens
117
Non-Paged Generic Tokens
117
Page Tokens
117
Tokens: Weight Information
118
Tokens: Product Information
118
Tokens: Miscellaneous Weight Data
119
Tokens: Default Print Strings
120
Format Tokens
121
Appendix 3: Communications Registers
123
Appendix 4: Setup Menu Quick Reference
132
Appendix 5: Error Messages
135
Overview
135
Weighing Errors
135
Axle Weighing Errors (K405 and K422)
135
Setup Errors
136
Diagnostic Errors
136
Appendix 6: M4221 Ethernet Module
138
Overview
138
Network Configuration
138
Viewing the Current Configuration
138
Services
138
TCP Sockets
138
Web Interface
138
Appendix 7: M4501 Dsd Module
139
Overview
139
Writing Records
139
Reading Records
139
Glossary
140
Glossary of Terms
140
List of Figures
141
List of Tables
141
Index
142
