Reference Manual Rev 1.13
004R-646-113
Page 39
7.5.
UNITS

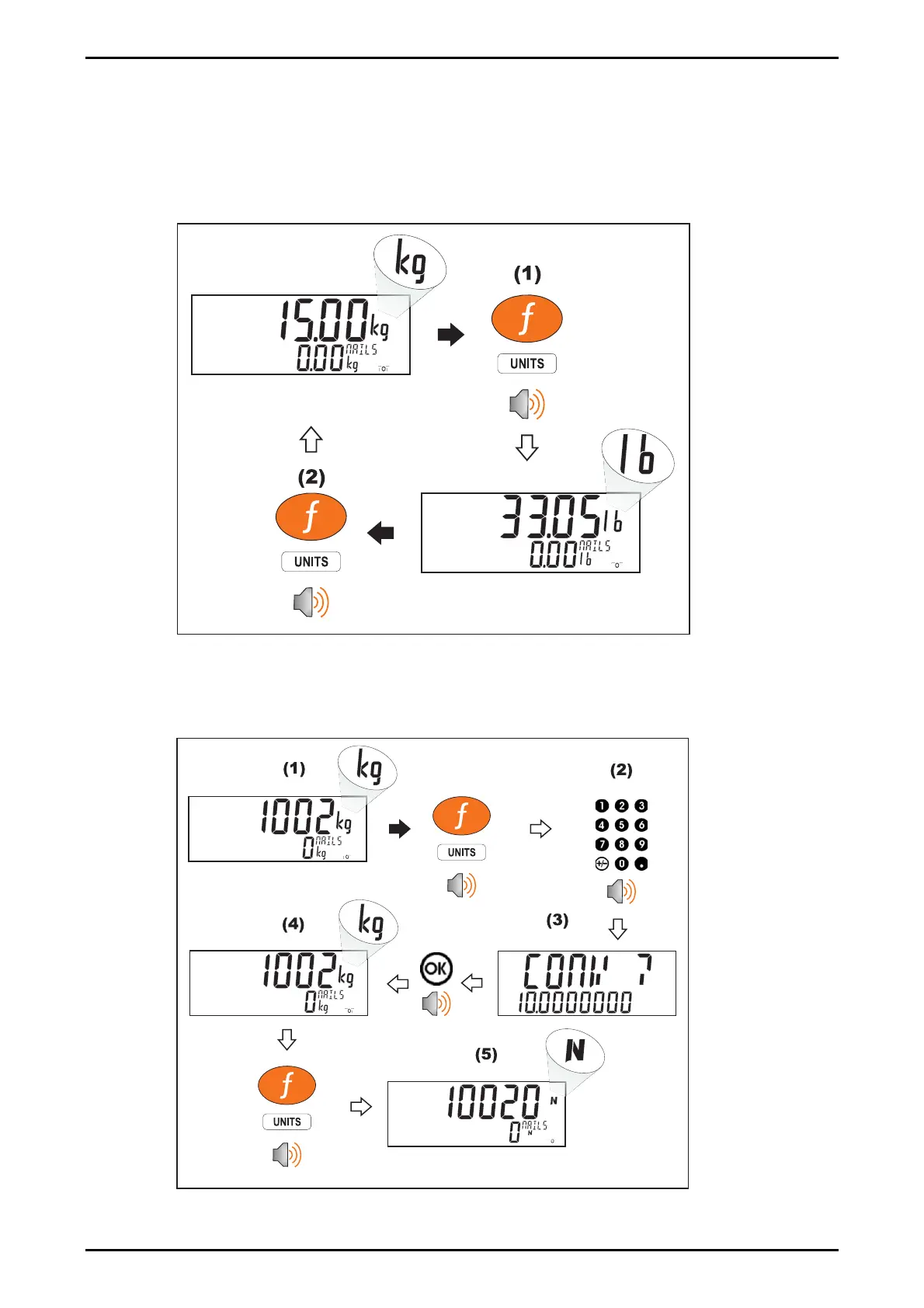

The units key is used to convert primary (calibrated) units to alternative units.
Short press
A short press switches between
primary and alternative units.
Long press
A long press allows the units conv
ersion factor to be entered.
If lb/kg switching
is chosen, this will be unavailable.
