14. PROGRAMMING EXAMPLE FOR FX-20 TRANSMIT-

TER EXAMPLE: 4 FLAP GLIDER

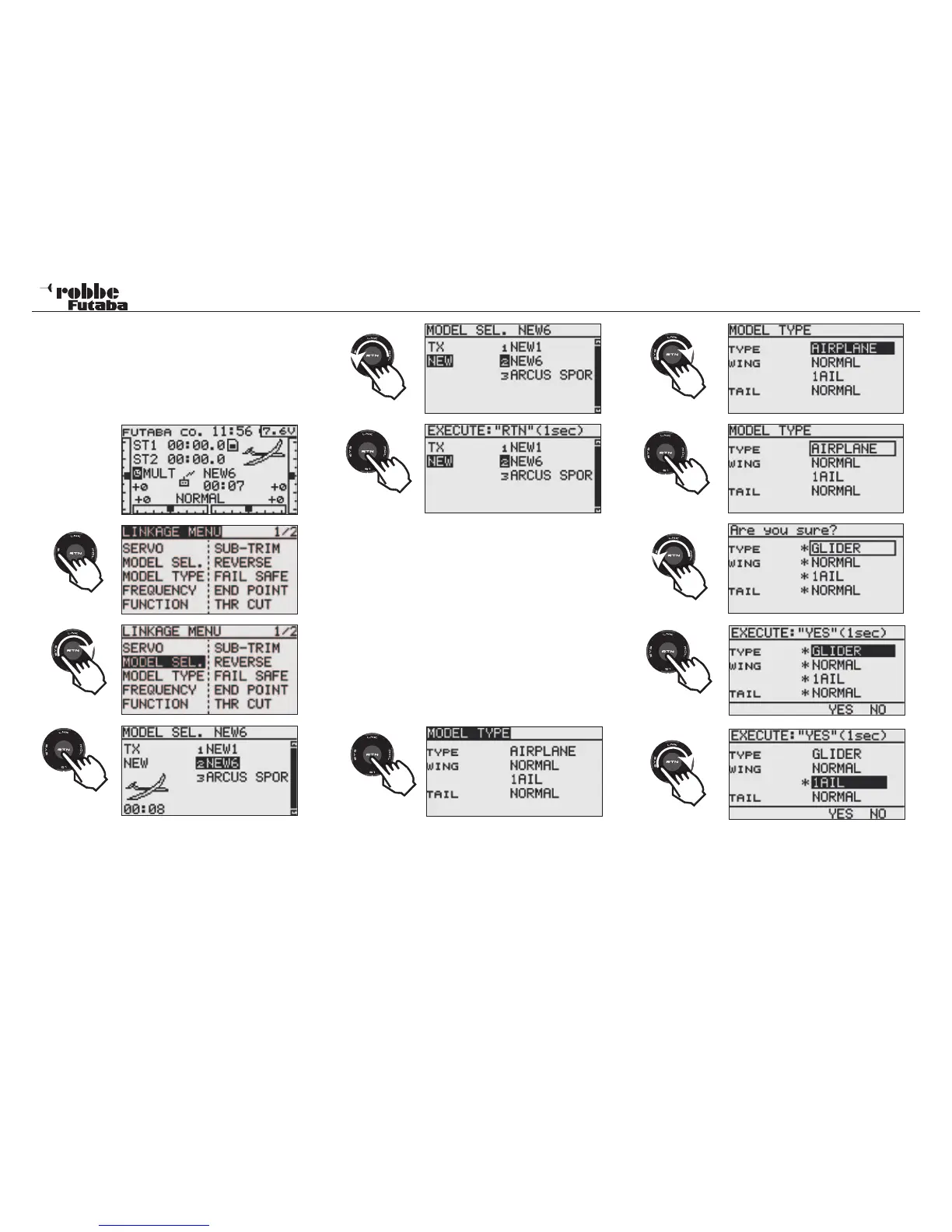

1. Create new model memory in Linkage Menu

Programming example

2 x

1Sek.

2. Assign Model Type

Main Page
