FX-20

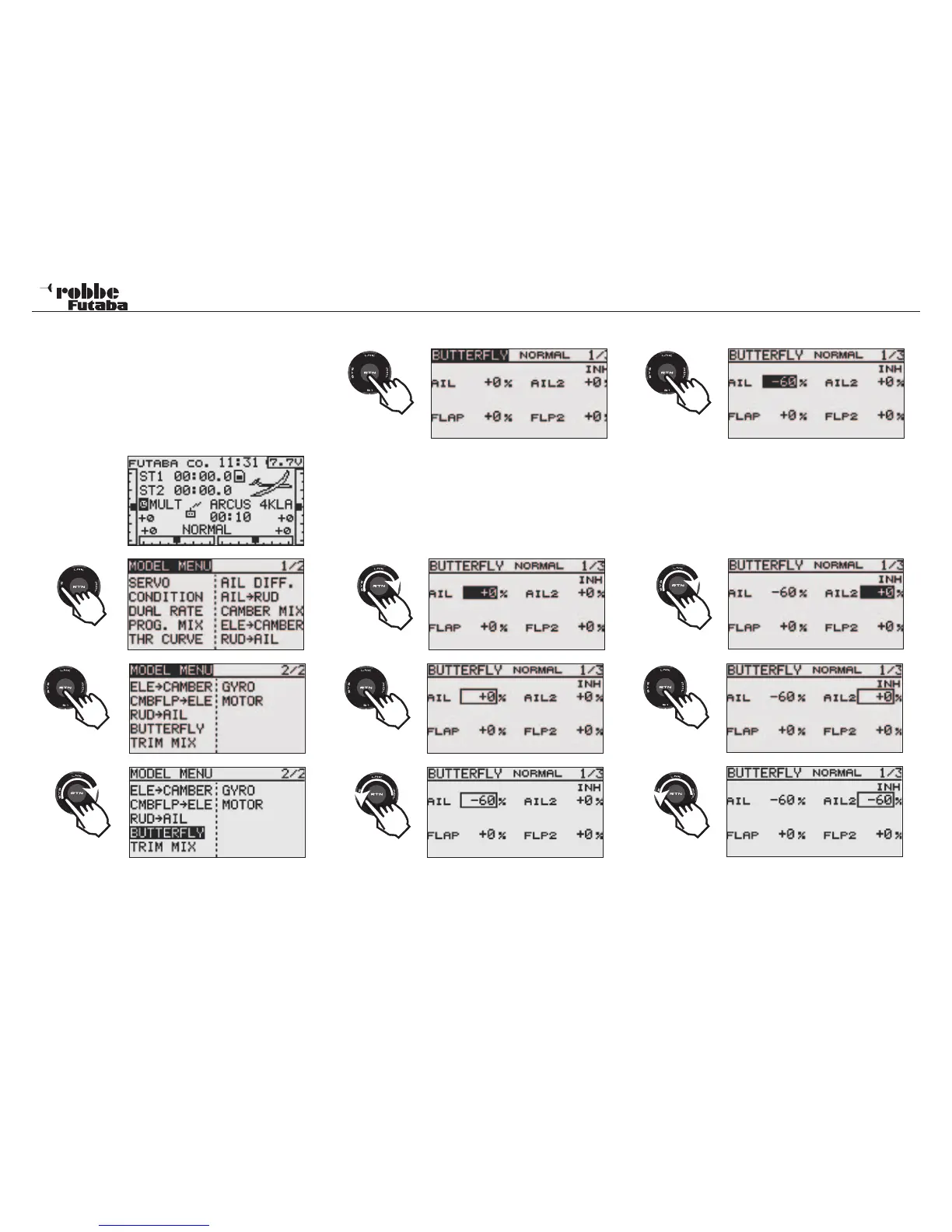

Butterfly Mixer Aileron and Flaps as Airbrake

The ailerons move upwards and the camber flaps move up to

90° downwards, which causes an enormous braking effect.

Adjust Left Aileron: Adjust Right Aileron:

Programming example

2 x
