FX-20
Adjust Left Flap: Adjust Right Flap:
I n
many cases when
using Crow Braking, the elevator position must be set slightly
up or down (elevator compensation).
The setting of the elevator compensation can be checked in
flight and remains initially unchanged. At a safe height, operate
the mixer and observe the flight path of the model.
If the nose pitches up, then some down elevator must be set.
If the model dives steeply, then up elevator is needed. A good
staring point for the compensation is 5-10%.

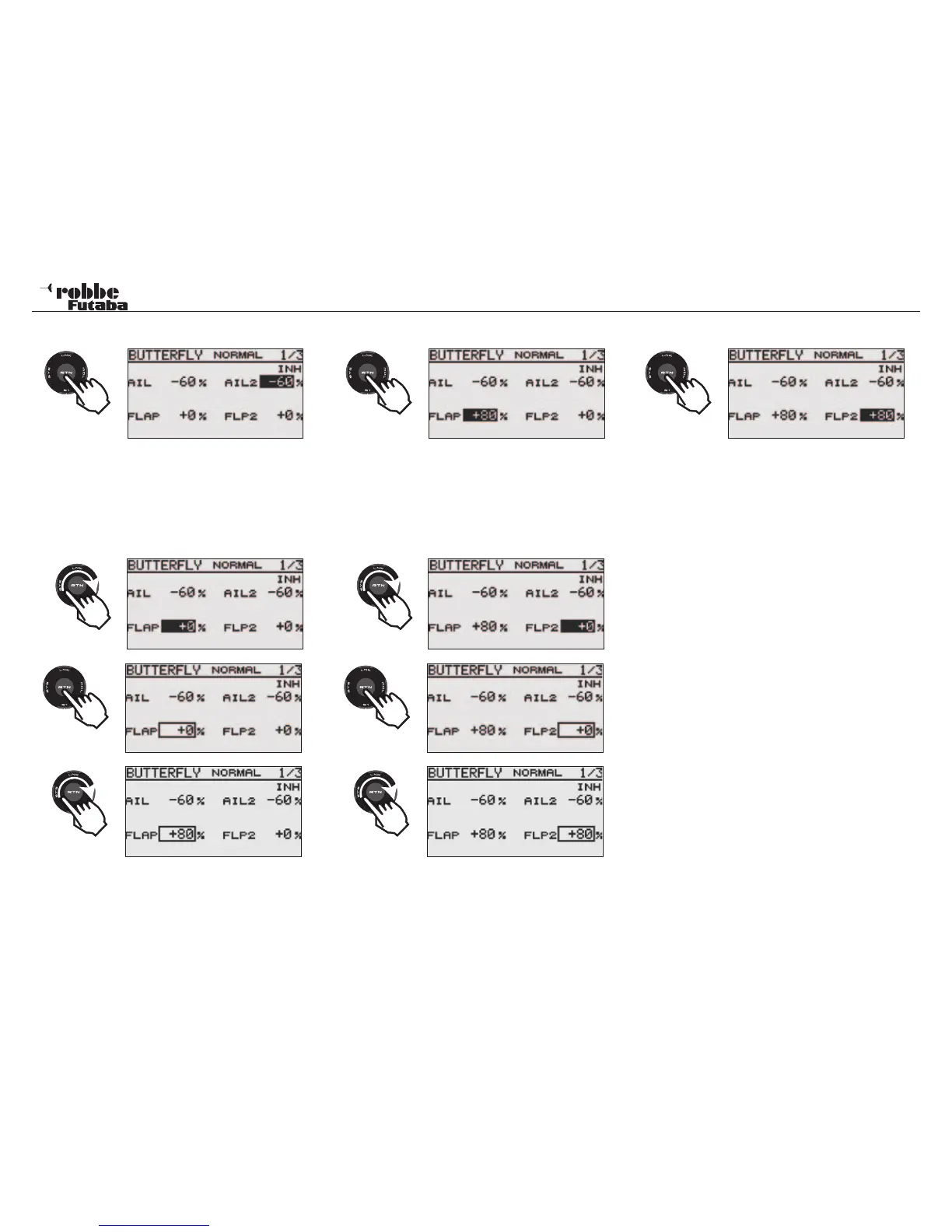

Programming example
75
1x
1x
1x 1x
1x
