Roland LEC-540 - Replacing the Separating Knife

4
Mainte- nance
Replacing Consumable Parts
115

Open the front cover.
Preparations are complete when this screen appears.

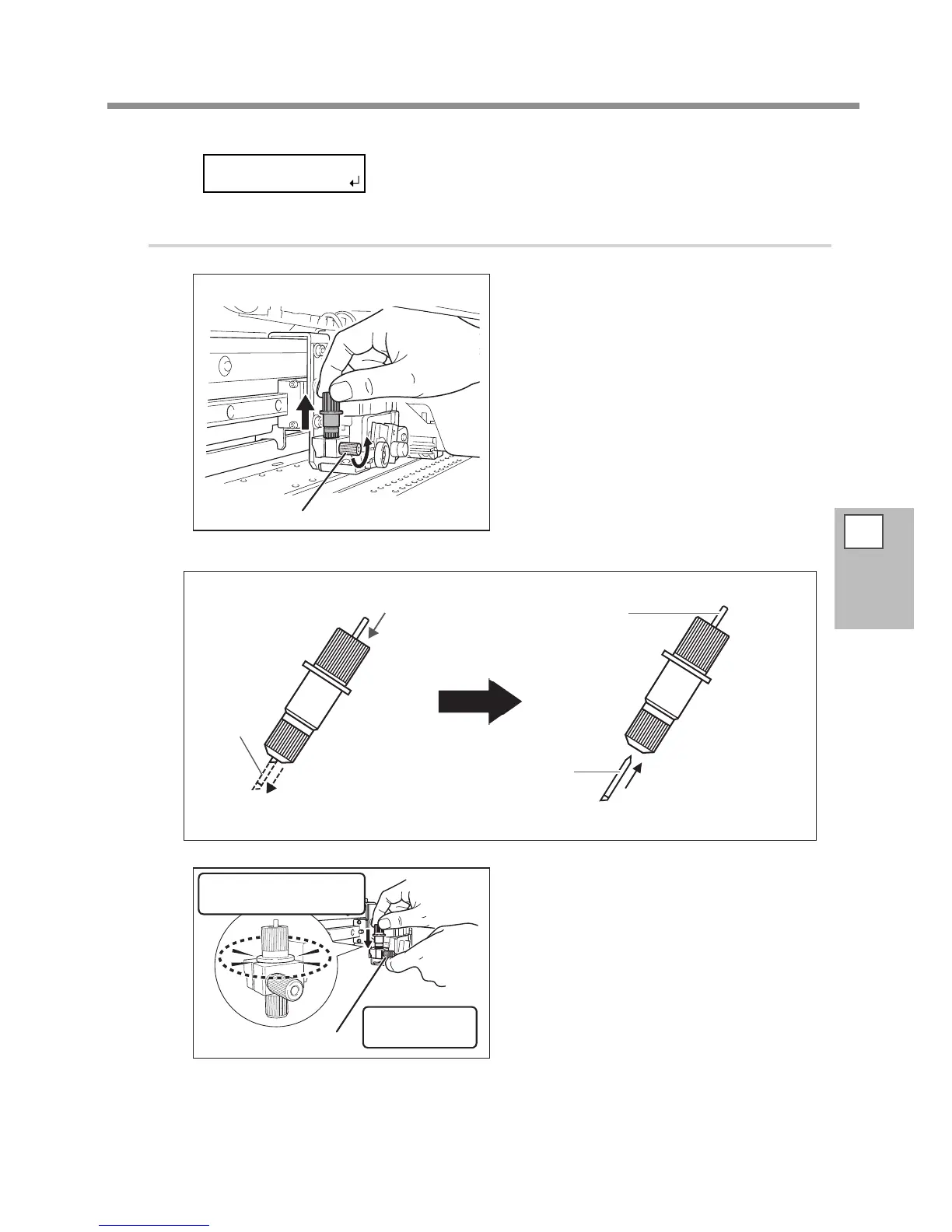

2. Replace the blade

Loosen the screw and remove the cutter
holder.

Replace the blade

Support the screw from below and insert
the blade holder.
If installed without supporting the screw in this way,
cutting quality may become poor.
Continued on the next page
FINISHED?
Screw
Insert until the collar is
ush with the surface.
Support it from
below.
Screw
Old blade
Pin
New Blade
Remove the old blade.
Press this pin.
Install a new blade.
