Roland LEC-540 User Manual

Loading Media
2
Basic Operation
38


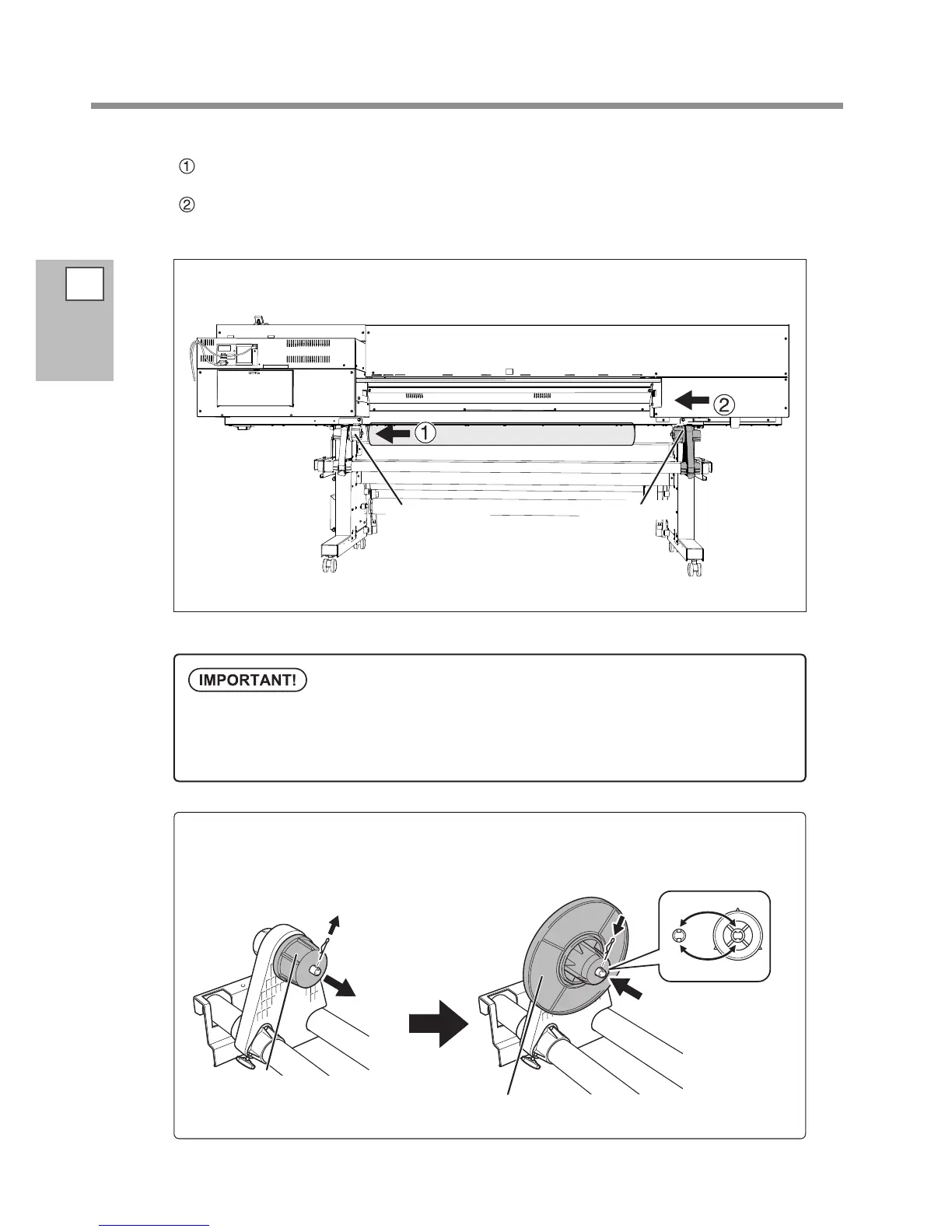

Fit the paper tube (core) onto the end cap of the media holder [Left].
Do not secure the media holder now.
Move the media holder [Right] and t the media cap onto the paper tube core of
the media.
Fit it securely to prevent the media from easy loose.
Install conforming to the procedures.
Load the media while the left media holder is positioned close to the left edge, as shown in the g-
ure. Also, never secure the media holder in place before loading the media. Loading media without
performing these steps in the proper order may make smooth media feed impossible or yield poor
printing results.
How to use the media anges for the paper tube inner diameter 2 inches
* The media anges for the paper tube inner diameter 2 inches are optional items.
Insert the clip.
Line up the ridges
and grooves
Pull out the clip.
If it is difficult to pull out, use
a pair of pliers or other such
tool.
End cap
Media anges for paper
tube inner diameter 2 inches
End cap
End cap
