Loading Media
2
Basic
Operation
41

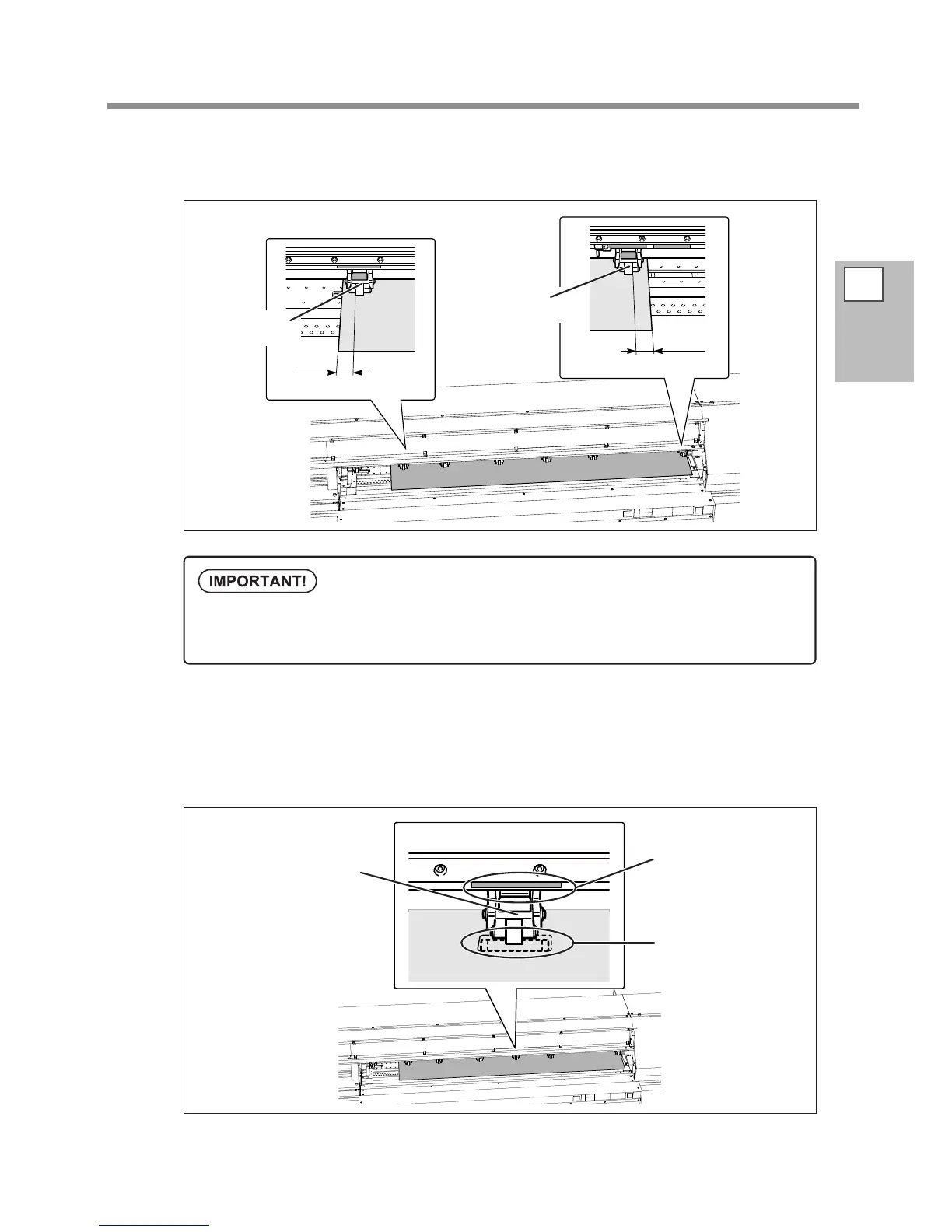

Place the left and right pinch rollers on both edges of the media.
Place them on the positions from the media edges by about 10 mm respectively.
Place the middle pinch rollers over the grid rollers.
The grit patterns can be found at the place where grit rollers are located.
When positioning the middle pinch rollers, choose locations where they are as equally spaced as pos-
sible above the grit roller that lie inside the left and right pinch rollers. The middle pinch rollers cannot
be lowered at any position other than above the grit rollers.
If you want to readjust the media position at this step, go back to the procedure 1 and redo the
procedure
1.
-
. Printing quality is aected due to skew media feed, if you hold the media only to
readjust the position
About 10 mm
About 10 mm
Left side pinch
rollers
Right side
pinch rollers
Grit patterns
Grit rollers
(It places under media.)
Middle pinch roller
