Basic Operation
Setup of Media
57

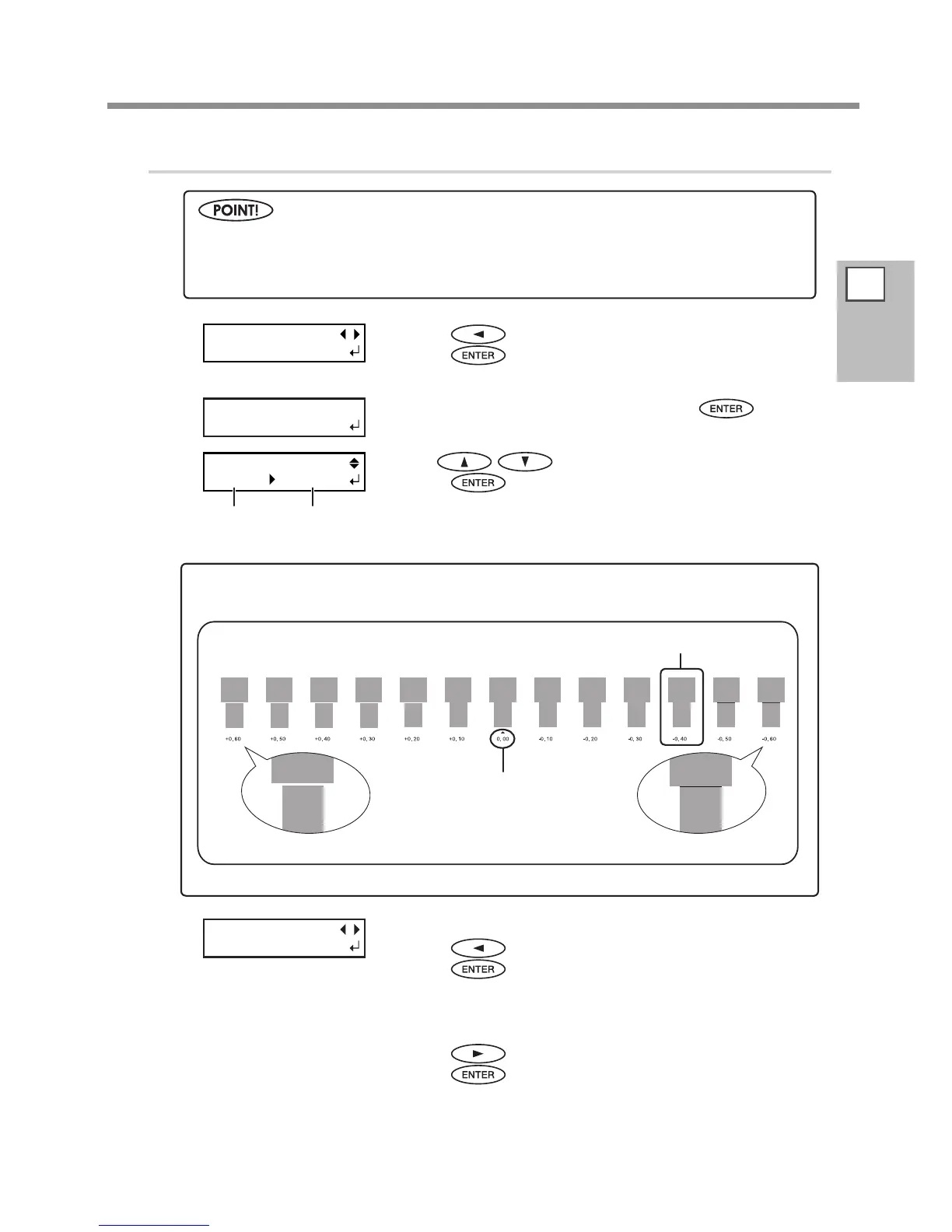

3. Perform the position correction of feed direction (Alleviate Horizontal Stripes).

Press to select [SET].
Press
to enable the setting.
The test pattern of feed correction is output.

When the left gure is displayed, press .

Use to set the correction value.
Press
to enable the setting.

[To conrm again / adjust again]
Press
to select [YES].
Press
to enable the setting.
The test pattern of feed correction is output again. Go back to the
procedure

and set again.
[To go to the next after correction is completed]
Press
to select [DONE].
Press
to enable the setting.
For the individual setting method of this setting item and the description, refer to page 126 "Alleviating Hori-
zontal Bands and the Like (feed correction function)."
Feed direction means the feed direction of the media. Perform the correction adjusting to the media
in advance because horizontal stripes are more likely to occur during printing when the movement
distance of the media changes subtly depending on the kind or thickness of the media.
CALIBRATION
[SET] NEXT
INPUT
ADJ. VALUES
CALIBRATION
0.10% -0.10%
To decide a Correction Value
Select the value to make the upper/lower rectangular gap and overlap smallest.
REDO ADJ. ?
YES [DONE]
Current correction
value
Value to be set
Gap present Overlap
Smallest gap and overlap
Current correction
value
