Setup of Media
58

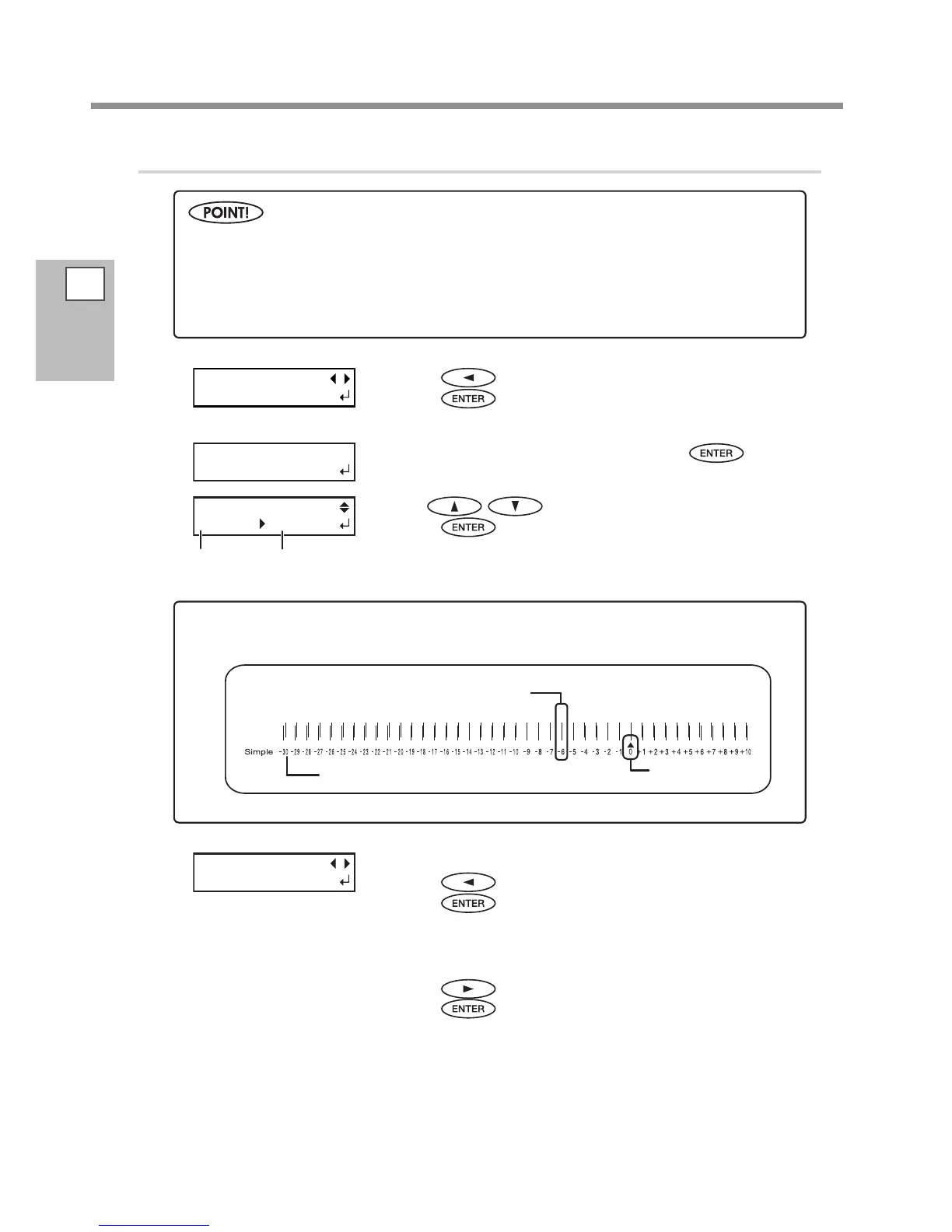

4. Performing the correction for misalignment in bidirectional printing

Press to select [SET].
Press
to enable the setting.
The test pattern of bidirectional correction is output.

When the left gure is displayed, press .

Use to set the correction value.
Press
to enable the setting.

[To conrm again / adjust again]
Press
to select [YES].
Press
to enable the setting.
The test pattern of bidirectional correction is output again. Go back
to the procedure

and set again.
[To go to the next after correction is completed]
Press
to select [DONE].
Press
to enable the setting.
For the individual setting method of this setting item and the description, refer to page 125 "Correcting for
Misalignment in Bidirectional Printing."
This machine prints by the bidirectional mode (in which the heads perform printing during both
their outbound pass and return pass). This printing method is called “Bidirectional Printing.” This
method oers the advantage of being able to shorten output times, but subtle misalignment occurs
during the outbound and return passes. The procedure to correct this and eliminate misalignment
is “Bidirectional Correction.”
ADJUST BI-DIR
[SET] NEXT
INPUT
ADJ. VALUES
ADJUST BI-DIR
0 -6
To decide a Correction Value
Choose the value that produces the least misalignment of 2lines.
REDO ADJ. ?
YES [DONE]
Current correction
value
Value to be set
Correction value scale
Current cor-
rection value
The least misalignment.
