External Control Overview
The External Control section describes the front panel REMOTE terminal
connection and the rear panel SIGNAL I/O port.
Remote Terminal Overview
Overview
The REMOTE terminal connector is a standard 5-pin DIN
terminal suitable for a remote controller.
WARNING
Keep any cables that are connected to the REMOTE terminal
away from the HIGH VOLTAGE and RETURN terminals.

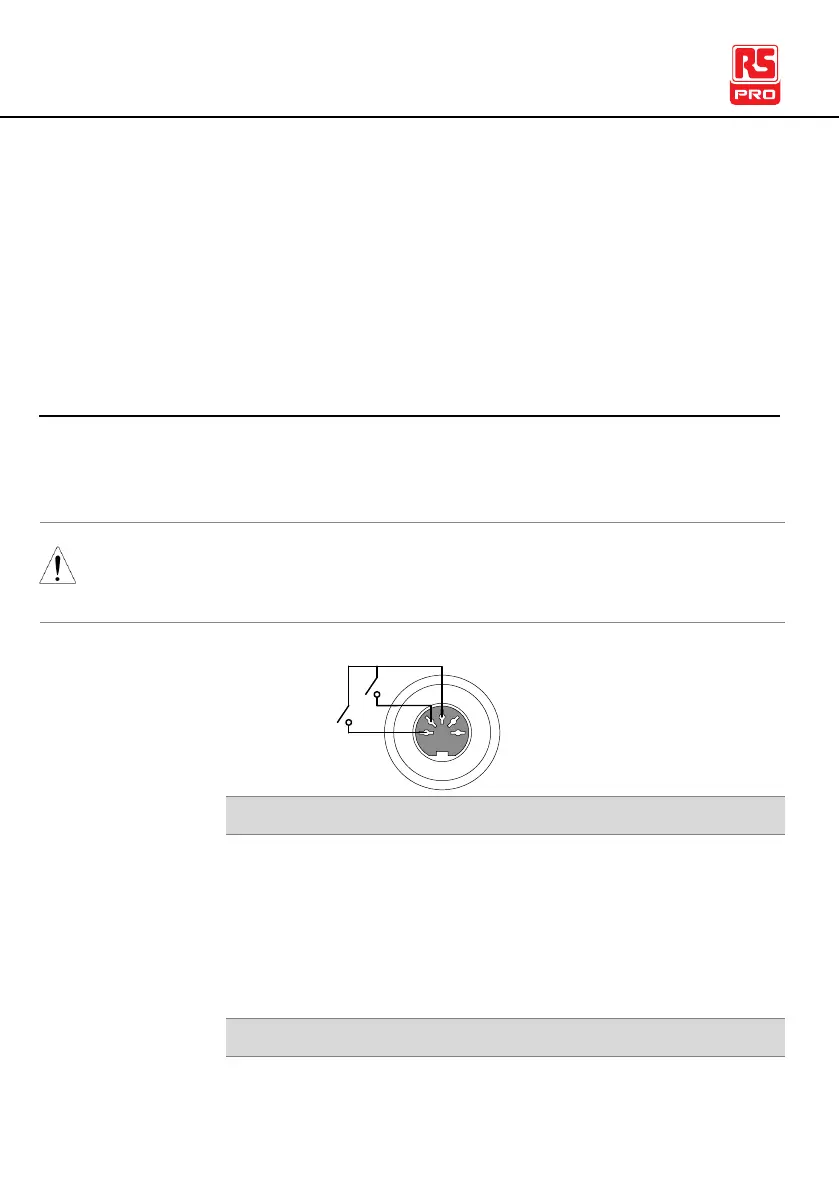

Pin Assignment
and Connection
REMOTE
1
4
2
5
3
RMT_START
RMT_STOP
Pin
Pin name
Description
1
RMT_STOP
Remote Stop signal
2
COM
Common line
3
Not used
4
RMT_START
Remote Start signal
5
Not used
Signal Properties
High level input voltage
2.4V~3.3V
