RS PRO IIT-2000 - Setting the Test Frequency

IIT-2000/2010/5000/5010 Instruction Manual/English
48 05/08/2015 Version No. 001
1
IIT-5010 includes a 125V test point.
Note
When setting the voltage, be aware that a maximum of 200VA
can be set for ACW and 50W for DCW (IIT-2000/2010) or
500VA and 100W, respectively for IIT-5010/5000.
The ground bond voltage (GBV) is calculated as the HI SET
limit x Test Current.

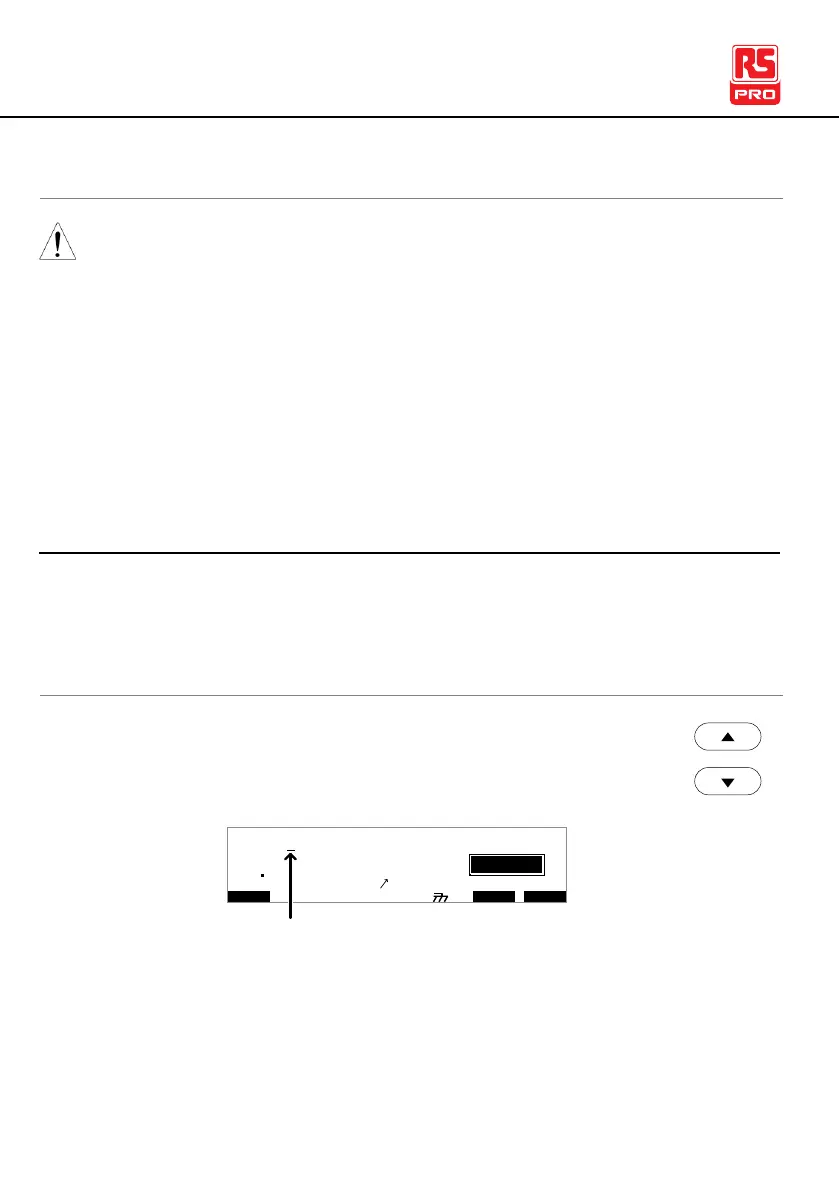

Setting the Test Frequency
Background
A test frequency of 60Hz or 50Hz can be set, regardless of the
input line voltage. The test frequency setting only applies to
ACW and GB tests.
Steps
1. Press the UP / DOWN arrow keys to bring the
cursor to the FREQ setting.
I R G B
m A
A CW D C W I / LH O I M ET R
E
F R E Q = 0 H z 6
0 100
k V
IDE
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MM A UN N A_
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
T
2M A N U = * * * - 0 0
cursor
