Setting the Test Time (Timer)
Background
The TIMER setting is used to set the test time for the current
test. The test time determines how long the test voltage or
current is applied to the DUT. This test time does not include
Ramp , initial start time or discharge time (note: GB does not
have Ramp or discharge times). The test time can be set
from 0.5 seconds to 999.9 seconds for ACW, DCW and GB
and 1.0 second to 999.9 seconds for IR, with a resolution of
0.1 seconds for all modes. The timer can be turned off when
in the special MANU test mode when using the ACW or DCW
test functions.
Each test has an initial test time of approximately 150ms and a
discharge time (except GB). The total discharge time depends
on the DUT and test voltage.

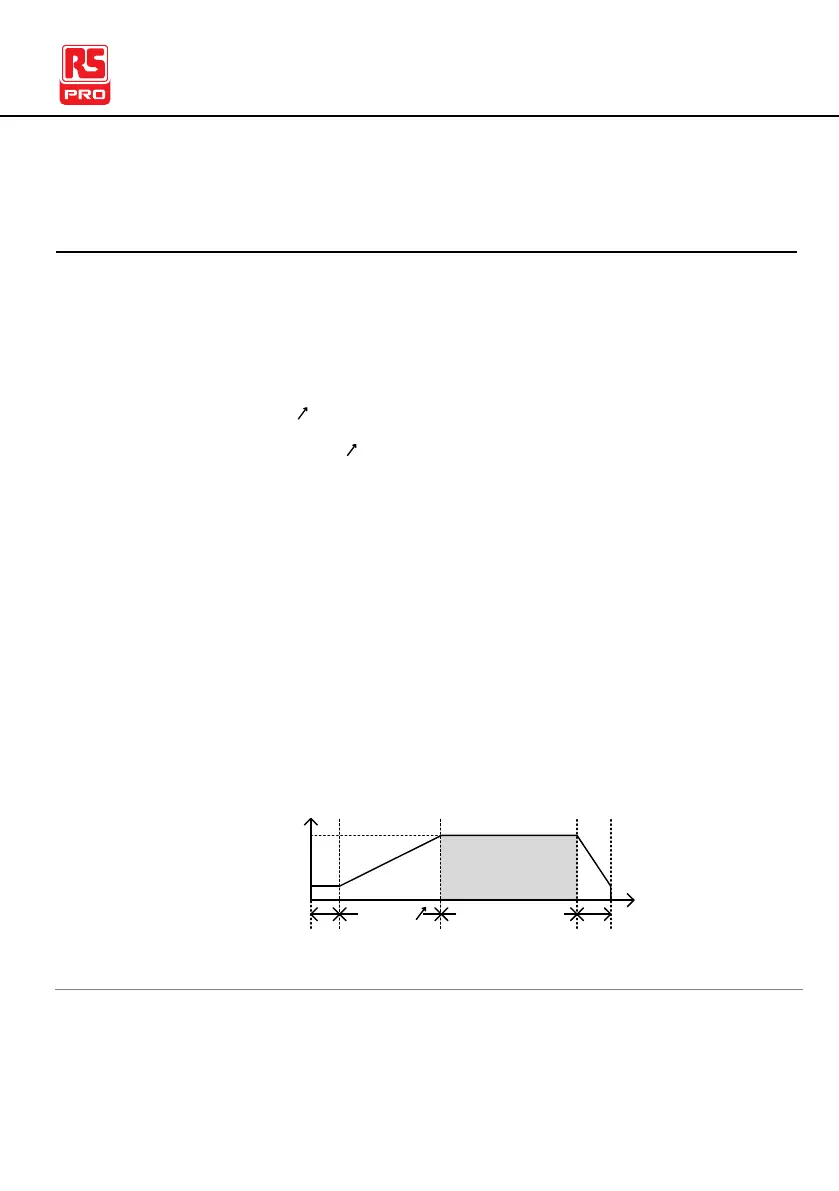

Discharge time
Test V
time
Start V
Initial time
TEST TIMERAMP
(Approximately 150ms)
