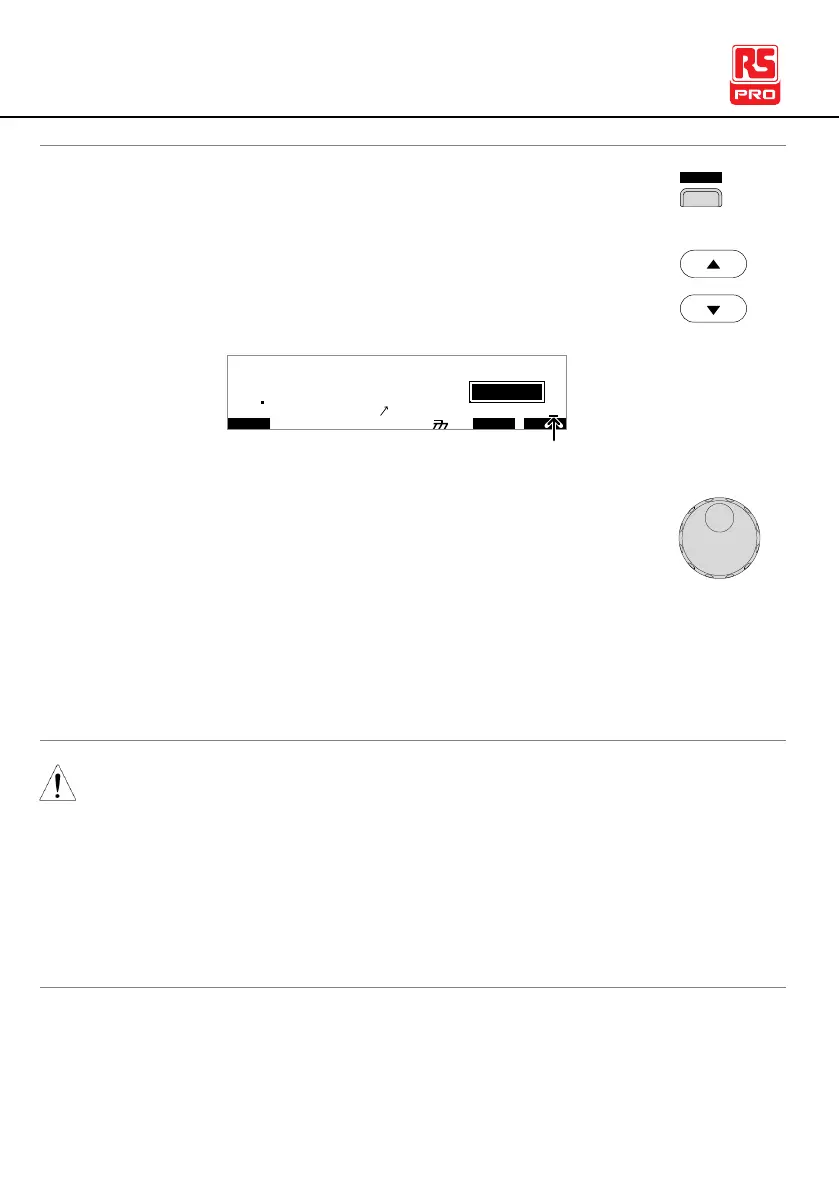

Steps
1. Press the TIMER soft-key or use the UP/DOWN
arrow keys to bring the cursor to the TIMER
setting.
I M ET R
OR
I R G B
m A
A CW D CW I / LH O I M ET R
E
F R E Q = 0 H z 6
0 100
k V
IDE
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MM A UN N A_
1 . 0 0 m A0L ES = 0T
0 0 . 1 S0A M P =R
T
2M A N U = * * * - 0 0
cursor
2. Use the scroll wheel to set the TIMER value.
ACW
DCW
IR
GB
000.5s~999.9s
000.5s~999.9s
001.0s~999.9s
000.5s~999.9s
Note
With the ACW test function, when the test current is between
30mA and 40mA (IIT-2000/2010) or 80mA and 100mA (IIT-
5010/5000), the ramp time + test time cannot exceed 240
seconds. At this current level, the tester also needs to pause
after a test for a time equal to or greater than the output time.
See the specifications on page 201 for details.
Special Manual
Mode
When in special MANU test mode (page 83) the Timer can be
turned off when using the DCW or ACW test function.
