RS PRO IIT-2000 - Zeroing of the Test Leads (GB Only)

IIT-2000/2010/5000/5010 Instruction Manual/English
05/08/2015 Version No. 001 83
Zeroing of the Test Leads (GB only)
Background
The Zeroing function is used to determine the resistance of
the test leads for GB tests. When a zero check is performed,
the reference is automatically set to the measured resistance
of the test leads.
This function is only available for GB testing.
Steps
1. Ensure the tester is in VIEW status for the
current GB test. Save the current test if
necessary.
Page 71
I R G B A CW D CW
E
F R E Q = 0 H z 6
EIV
G B V = V MT I E = 0 0 3 . 2 SR
. 0 m ΩER F =# 0 00
0 0 . 0 mΩIH ES = 3T
MM A UN N A_2M A N U = * * * - 0 0
W
m Ω
0 3 01
A

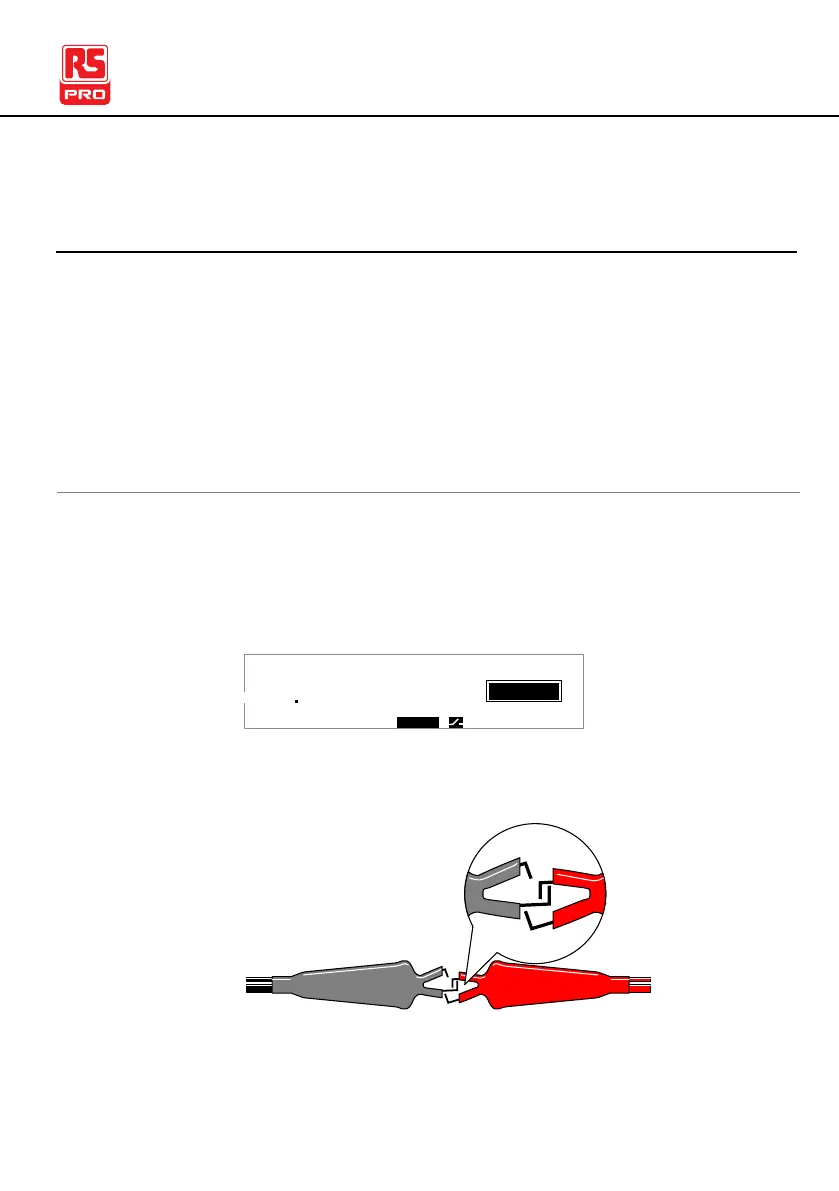

2. Short the positive and negative alligator clips as shown below.
