IIT-2000/2010/5000/5010 Instruction Manual/English
05/08/2015 Version No. 001 125
OUTPUT_FAIL
7
Indicates that a test has failed
OUTPUT_PASS
8
Indicates that a test has passed
OUTPUT_COM
9
Common output line

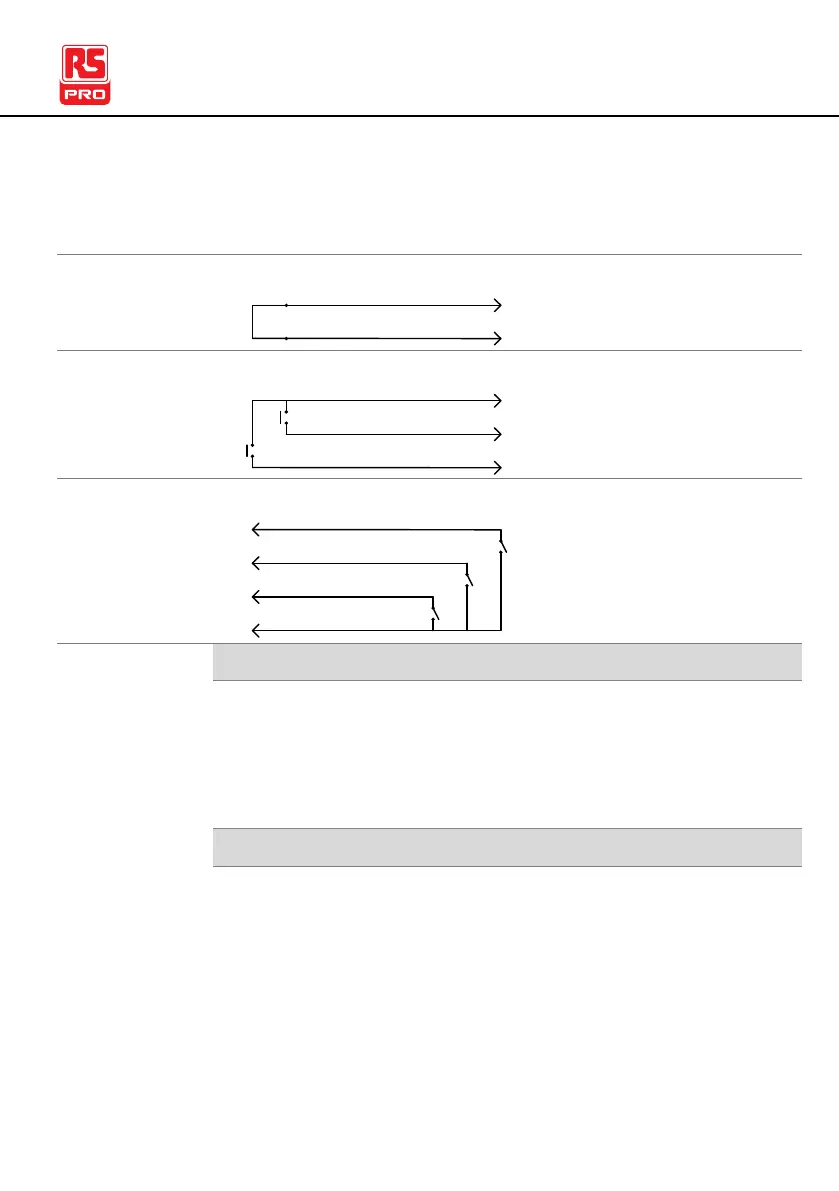

Interlock
connection
PIN 2 INTERLOCK2
PIN 1 INTERLOCK1
Input
Connection
PIN 5 INPUT_STOP
PIN 3 INPUT_COM
PIN 4 INPUT_START
Output
Connection
PIN 6 OUTPUT_TEST
PIN 9 OUTPUT_COM
PIN 8 OUTPUT_PASS
PIN 7 OUTPUT_FAIL
Signal
Properties
Input Signals
High level input voltage
5V ~ 32V
Low level input voltage
0V ~ 1V
Low level input current
Maximum of -5mA
Input period
Minimum of 1ms
Output Signals
Output Type
Relay form A
Output Rated Voltage
30VDC
Maximum output current
0.5A
