IIT-2000/2010/5000/5010 Instruction Manual/English
05/08/2015 Version No. 001 131
RS232 Remote Interface
RS232
Configuration
Connection
Null modem cable
Baud rate
9600, 19200, 38400, 57600, 115200
Parity
None
Data bits
8
Stop bit
1
Flow control
None

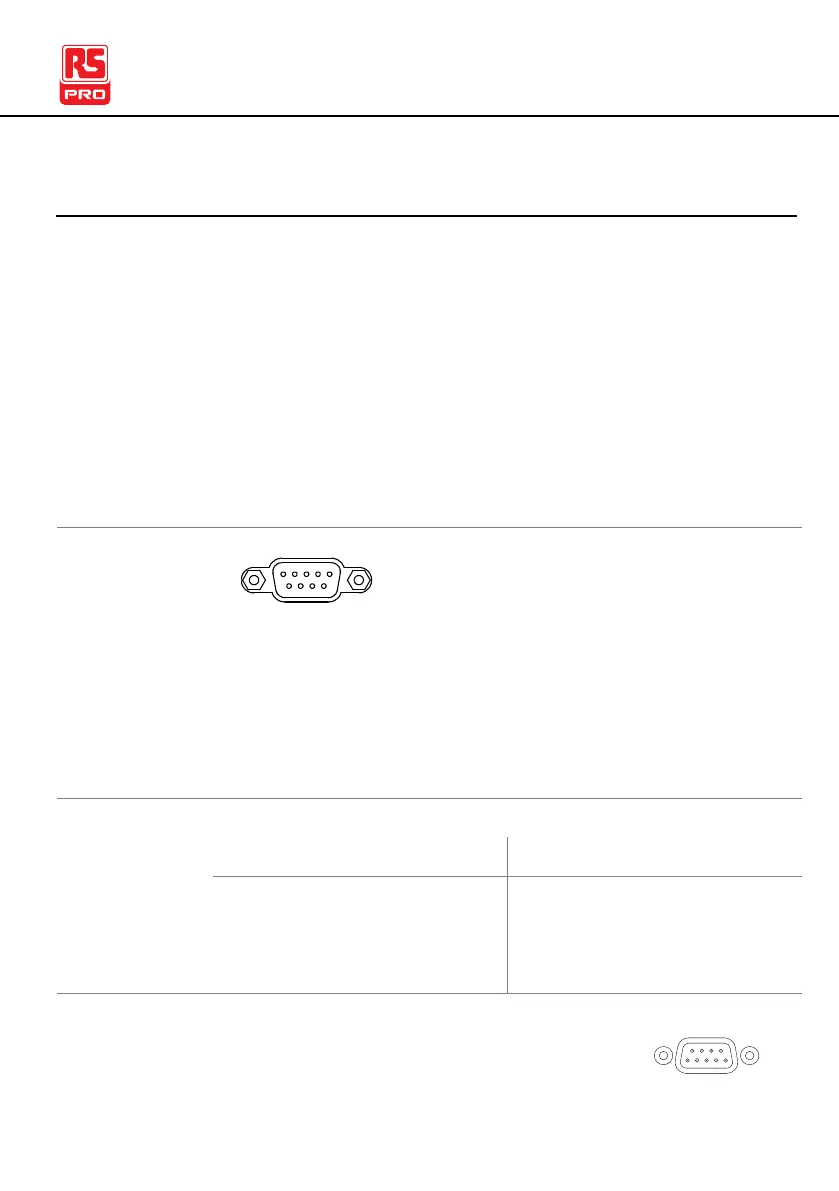

Pin Assignment
1 2 3 4 5
6 7 8 9
1: No connection
2: RxD (Receive Data)
3: TxD (Transmit Data)
4: No connection
5: GND
6-9: No connection
Connection
PC
Tester
DB9 Pin
Signal
Signal
DB9Pin
2
RxD
TxD
3
3
TxD
RxD
2
5
GND
GND
5
Panel operation
1. Connect the Null modem cable to the rear
panel RS232 port.
RS232
