Configuration Guide Voice VLAN Configuration
Voice Vlan dscp : 46
Current voice vlan enabled port mode:
PORT MODE
-------------------- ----------
Fa0/1 AUTO // Fa 0/1 enables Voice VLAN as
auto mode
# Viewing Voice VLAN OUI address of the equipment
Ruijie(config)# show voice vlan oui
Oui Address Mask Description
0012.3400.0000 ffff.ff00.0000
Voice VLAN Manual Mode
Networking requirements
1) Create VLAN 2 as Voice VLAN.
2) IP phones send untagged voice stream; and the access port is Hybrid-type
port Fa0/1.
3) Fa0/1 works in manual mode.
The equipment allows voice messages with OUI address of ―0012.3400.0000‖
and mask code of "ffff.ff00.0000" being transmitted through Voice VLAN. And
the descriptor is "Company A".
Networking topology

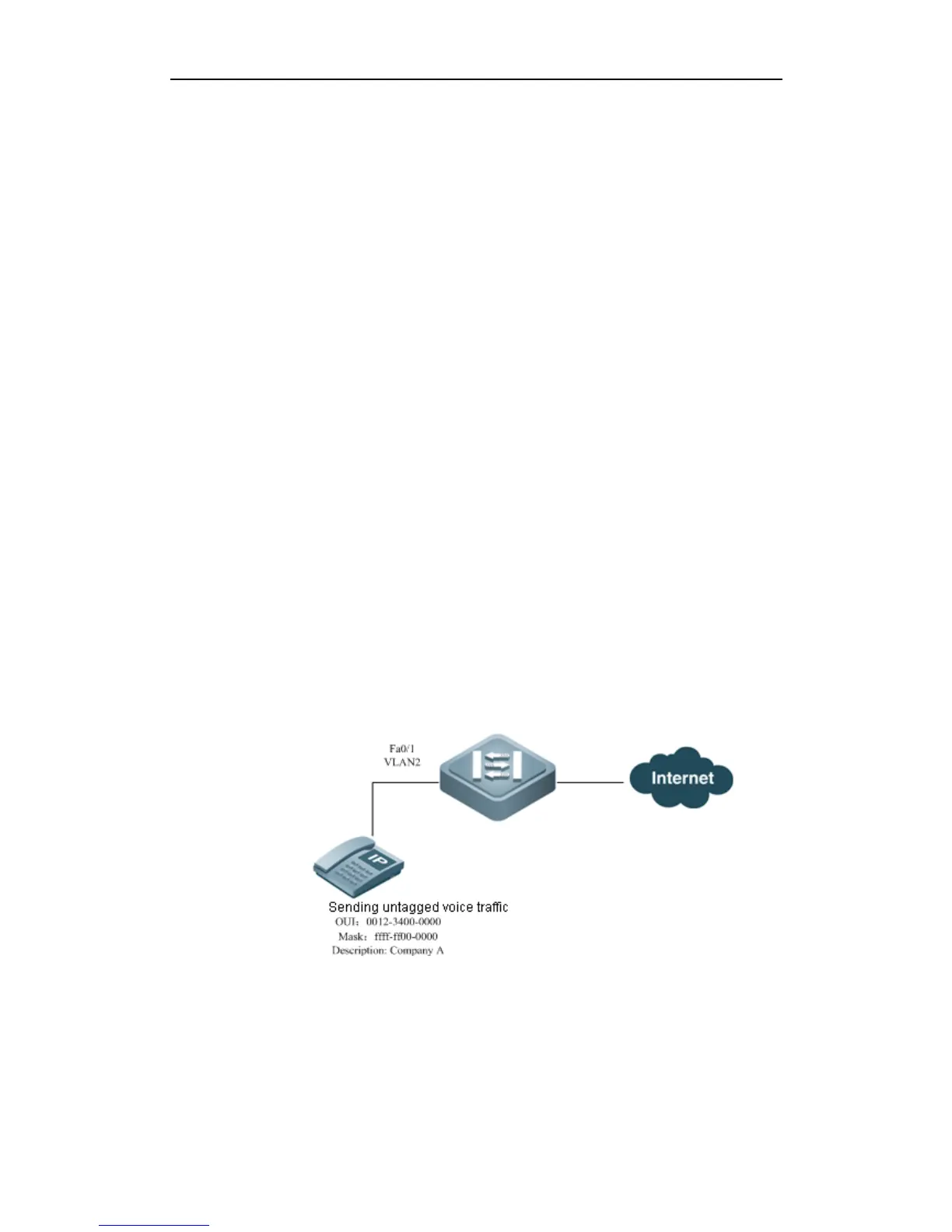

Figure 3 Networking topology for configuring Voice VLAN manual mode
Points for configuration
According to networking requirements, followings should be paid attention to
during Voice VLAN configuration of the equipment: Since Fa 0 / 1 connects
beneath with Hybrid Port sending untagged voice stream, and Voice VLAN
To Next Page
