Configuration Guide 802.1x Configuration
Complete data isolation shall be achieved between VLANs corresponding to three user groups, namely the
members of one group cannot exchange data with members of another group.
Network topology is shown below:

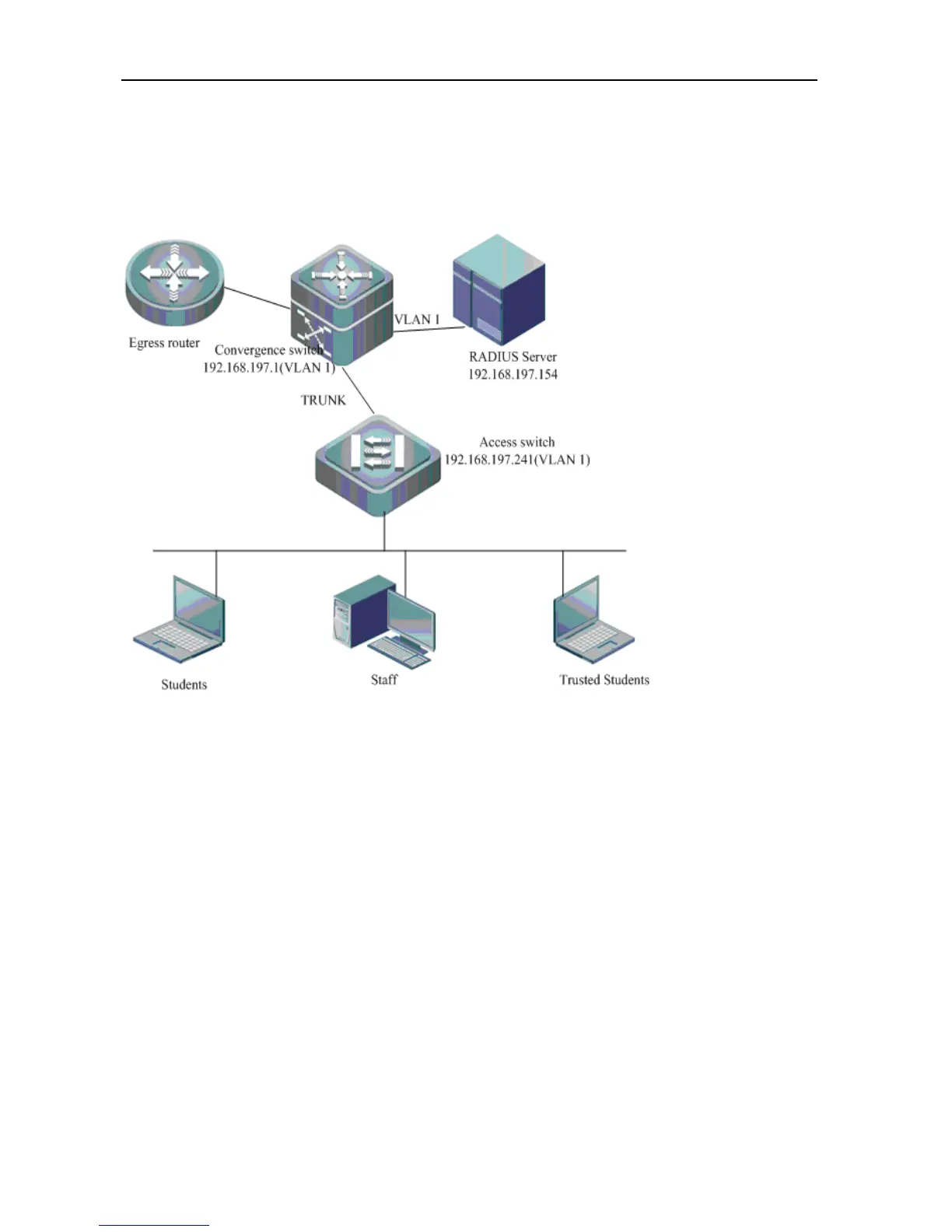

Figure 11 Typical topology of dynamic VLAN assignment
Configuration example is shown below
5) Configure RADIUS server
Include a managerial access device of 192.168.197.241, which uses the default authentication and accounting ports of
1812 and 1813 and the shared key of "shared".
Configure the vlan for users of user group "students"
Tunnel-Type = "VLAN",
Tunnel-Medium-Type = "IEEE-802",
Tunnel-Private-Group-ID = "students"
Configure the vlan for users of user group "trusted_students"
Tunnel-Type = "VLAN",
Tunnel-Medium-Type = "IEEE-802",
Tunnel-Private-Group-ID = "trusted_students"
Configure the vlan for users of user group "staff"
Tunnel-Type = "VLAN",
