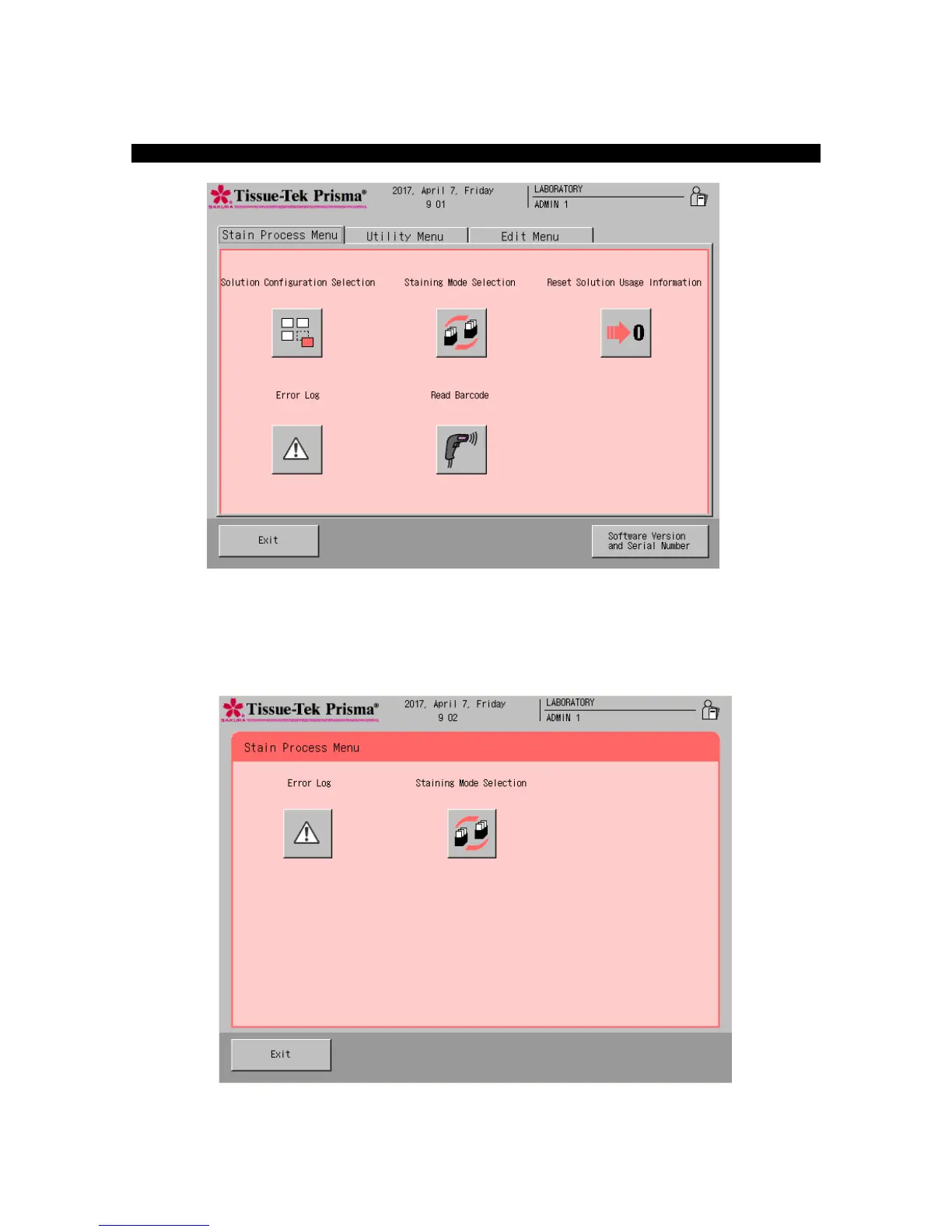

Explanation of
Menu Screens
Stain Process M
enu
This menu scr
een appears whi
le the instrum
ent is standing by after logon.
This menu scr
een appears during stain process
.
[4]
[2]
[1]
[2]
[3]
[4]
[5
]
51
53
Table of Contents
Default Chapter
3
Table of Contents
3
Safety Precautions
7
Explanation of Terms
18
Chapter 1 Basics of the System
20
Installation Method
21
Installing the Instrument
21
Flow of Installation
21
Required Tools
21
Installation Environment
21
Checking the Installation Conditions
22
Transportation
23
Unpacking Procedure
24
Unpacking the System
24
Removing the Securing Members Inside the Instrument
26
Switching the Power-Supply Voltage Setting
27
Checking the Accessories
27
Checking the Installation (Securing the Instrument)
29
Installing the Parts Around the Instrument
29
Installation of Accessories
34
Turning on the Power
36
Specification
37
Name of each Part
40
Standard Accessories/Options
42
Basics
44
Basics on this Instrument
44
Instrument Overview
44
Stain Process Modes
44
User Management by Password
44
Logon/Logoff Function
45
Safety Mechanism of the Instrument
45
How to Open and Close the Cover/Door
45
Handling the Touch-Panel Display
46
Various Gateways
47
Relationship of Solution Configurations and Station Numbers
49
Explanation of Menu Screens
52
Stain Process Menu
52
Explanation of Icons in the Stain Process Menu
53
Utility Menu
54
Explanation of Icons in the Utility Menu
54
Edit Menu
55
Explanation of Icons in the Edit Menu
55
System Setup
56
Setting Date and Time
58
Entering Year
58
Entering Month
58
Entering Day
58
Entering Hours and Minutes
58
Am/Pm
58
Setting User Ids, Passwords and Accessible Functions
59
Setting an ID
59
Setting a Password
59
Setting Accessible Functions
60
Stain Process
60
Utility
60
Edit
60
Fume Filter Management
61
Whether or Not to Use Fume Filter Management
61
Setting a Time Limit
61
Resetting the Actual Time
61
Adjusting the Water Flow
62
Export Data
63
Names of Files Exported to a CF Card
64
Chapter 2 Operating Procedure
65
Flow of Stain Process Operation
67
Preparation for Stain Process
68
Opening the Water Supply
68
Logging on to the Instrument
68
Selecting and Saving a Solution Configuration and Setting Solutions
69
Setting Slides into Baskets
70
Start of Stain Process
71
Operations Permitted During Stain Process
73
Adding a Basket
73
Setting Priority Start
74
Checking the End Station Status
74
Checking the Staining Status
75
Menu Operations Permitted During Staining Process
76
Pausing and Aborting Stain Process
77
Removing a Basket During Stain Process
78
End of Stain Process
78
Removing Stained Baskets
78
End of Operation
78
How to Start Stain Process by Specifying the Start and End Steps
79
Setting a Solution Configuration
81
Creating a New Solution Configuration
81
Setting up a Solution Configuration
82
Setting an Edit Solution Configuration
83
MIX Parameter Setup
86
Enhanced Wash Parameter Setup
86
Basket Lifting Speed and Water Wash Cycle Time Parameter Setup
87
Temperature Settings
87
Editing a Solution Configuration
88
Copying a Solution Configuration
88
Editing a Solution Name
89
Creating and Editing a Solution Name
89
Copying a Solution Name
90
Setting a Staining Program
91
Creating a New Staining Program
91
Saving a Staining Program Name
91
Creating a Staining Program
92
Editing a Staining Program
97
Copying a Staining Program
98
Checking a Staining Program
99
How to Use the Bar Code Reader, and It's Function (Options)
100
Overview
100
Applicable Solutions
100
How to Use Sakura Staining Solutions
100
Editing a Solution Configuration
100
How to Enter Sakura Solution Bar Code Data
101
How to Use Sakura Staining Kit
102
Editing a Solution Configuration
102
How to Enter Kit Component Solution Bar Code Data
103
Resetting the Solution Usage Information
105
Outputting Process Report
106
Solution Usage Information Report
106
Process Report
107
Solution Configuration Report
108
Barcode History Report
109
Deleting a Solution Configuration/Staining Program/Solution Name/Process Report
110
Deleting a Solution Configuration
110
Deleting a Staining Program
111
Deleting a Solution Name
111
Deleting a Process Report
111
Action to be Taken Upon Power Outage
112
Power Recovery Operation
112
Action to be Taken Upon Error
113
Error Handling
113
Errors with a Number
113
Other Errors
113
Chapter 3 Maintenance and Inspection
114
Daily Inspection and Cleaning
115
Inspection and Cleaning Methods
115
Cleaning the Solution Reservoirs and Baskets
115
Cleaning the Drying Stations
115
Cleaning the Heating Stations
115
Replacing Activated Carbon Filters
116
Cleaning the Arm Holder and Basket Adapter
116
Cleaning the Water Supply Strainer
117
Cleaning the Cabinet
117
Cleaning the Wash Station Nozzle
118
Cleaning the Drain Hose
118
Chapter 4 Troubleshooting
119
Error Codes Displayed During System Operation
121
Instrument Conditions and Recovery Actions
127
