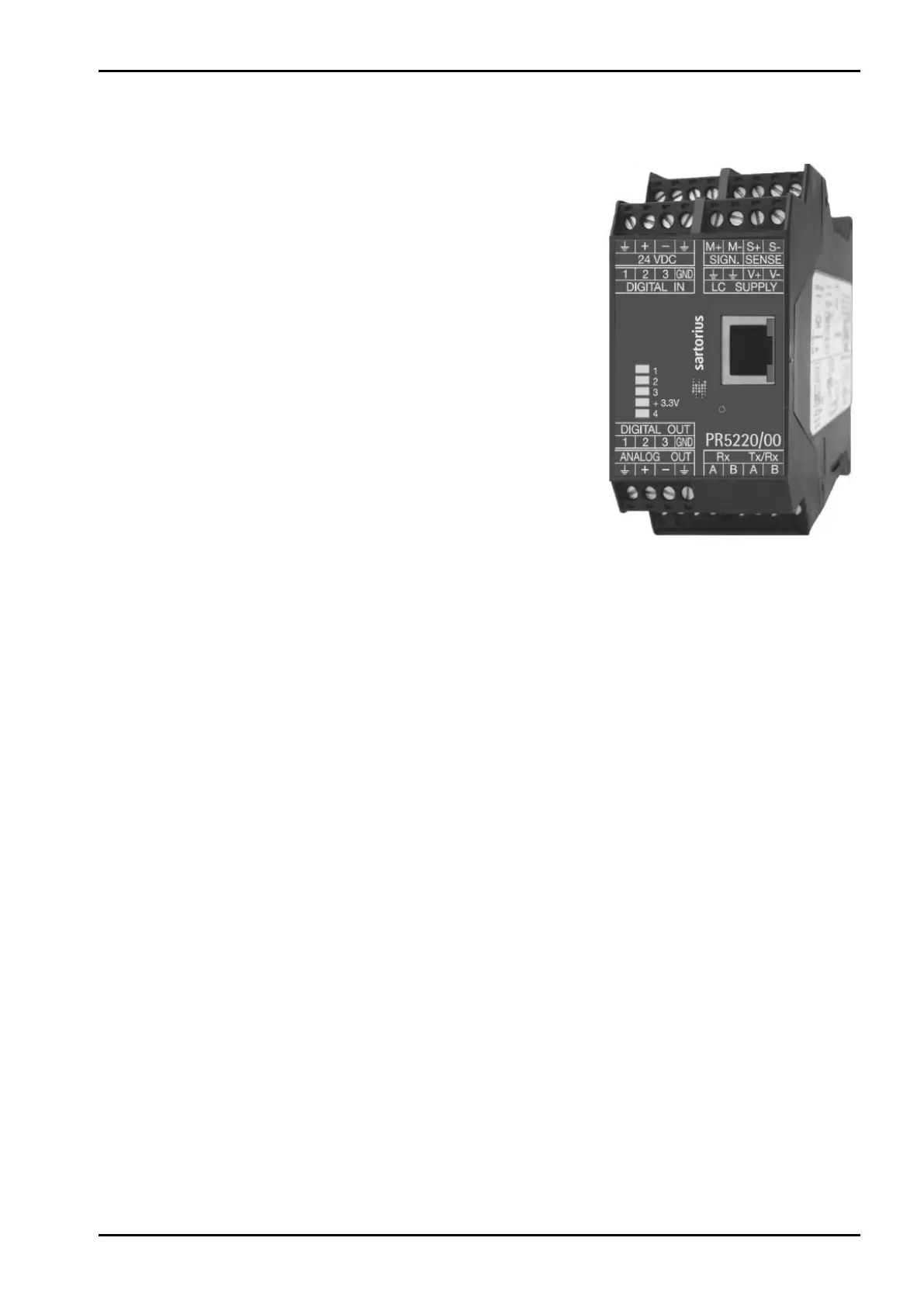

2.2 Overview of the Instrument
-
Accuracy 10,000 e @ 6 samples/sec
- Internal resolution: 7.5 million counts
- Linearity: < 0.002%
- Sampling rate: 6 ... 100/sec selectable
- Digital filter with selectable characteristic
- Electrically isolated interfaces
- 3 programmable pairs of limit values
- 24 VDC supply voltage connection
- Connection using plug-in terminal blocks
- Socket for LAN adaptor
- The instrument is provided for snap-on mounting on a standard
rail.
- 5 status LEDs für supply voltage, communication, error detection
Calibration and configuration of the instrument are menu guided using a PC.
- Calibration with weight, using the mV/V method or with load cell
data (“smart calibration”)
- 0/4 ... 20 mA analog output, configurable for gross/net weight
- Analog value via fieldbus
- 3 digital input channels, electrically isolated
- 3 digital output channels, electrically isolated
Communication protocols
For the internal RS-485:
- Remote display protocol
- SMA protocol
- xBPI protocol
For the internal LAN:
- ModBus-TCP
- Ethernet-TCP/IP
- OPC
Fieldbus slave:
- PR 5220/01 ProfiBus-DP
- PR 5220/04 DeviceNet
- PR 5220/06 ProfiNet I/O
- PR 5220/07 EtherNet-IP
