3.1.3 Analog Output
Connection method
4-pin plug-in terminal block
Number of outputs
1 current output,
output voltage via external resistor
Output
Gross, net weight or via ProfiBus
Range
0/4 ... 20mA, configurable
Resolution
e.g. 0 - 20 mA in max. 40,000 counts
Linearity error
@ 0 - 20mA: <0,05 %
@ 4 - 20 mA: <0,025 %
Temperature effect
<100 ppm/K
Load
0 ... max. 500 ¥
Protected against short
circuit
yes
Electrical isolation
yes
Cable length (shielded)
150 m (current output)

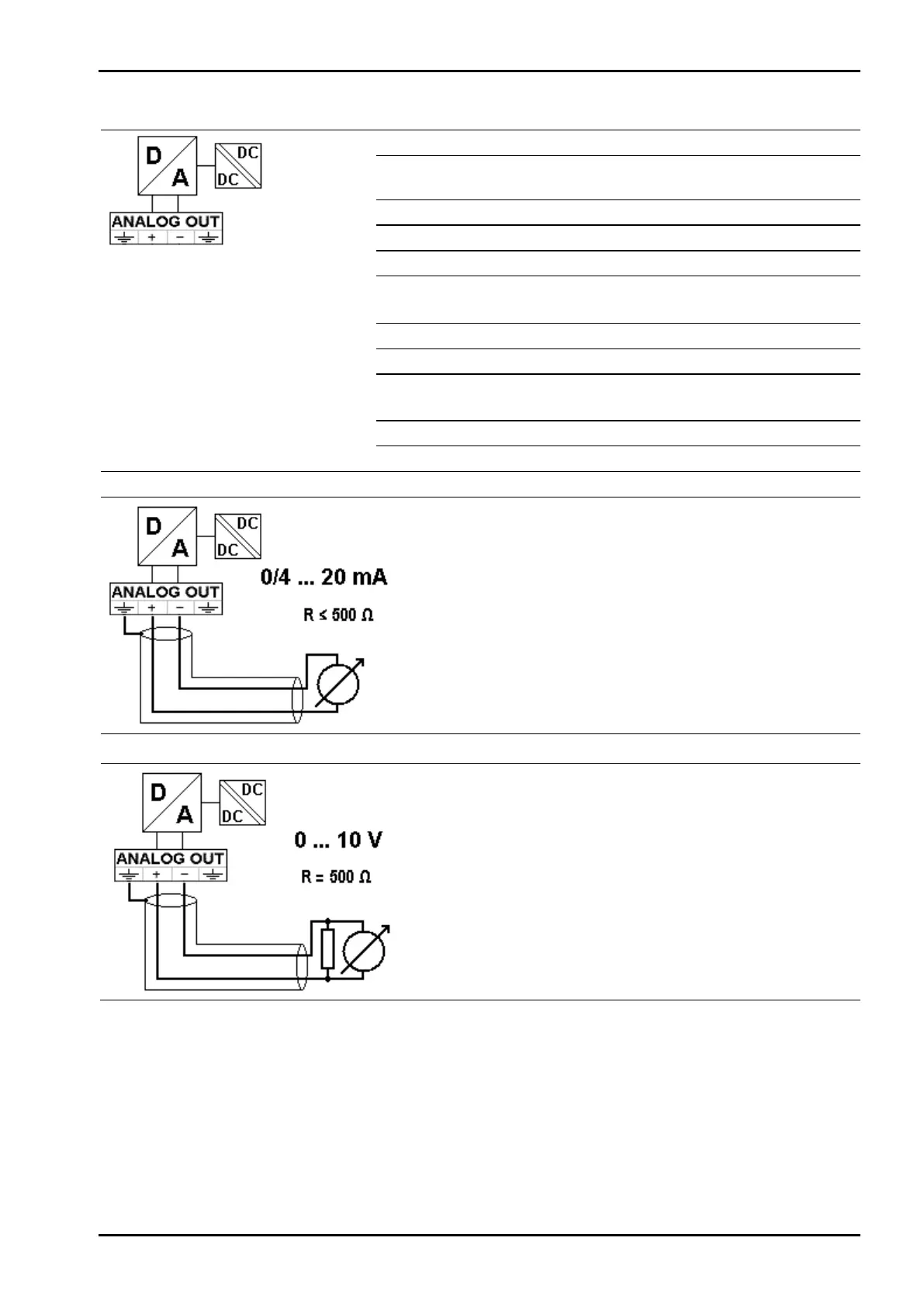

0/4…20mA
Analog signal,
current output
The current is supplied directly via
the terminals.
0…10V
Analog signal,
voltage output
The voltage level corresponds to the
voltage drop across the 500 ¥
(10 ppm/K) resistor.
