1.4.1 Installation
The instrument is designed for mounting on standard rails (35 mm, acc. to DIN 46277).
Caution!
Excessive heat may reduce the instrument lifetime!

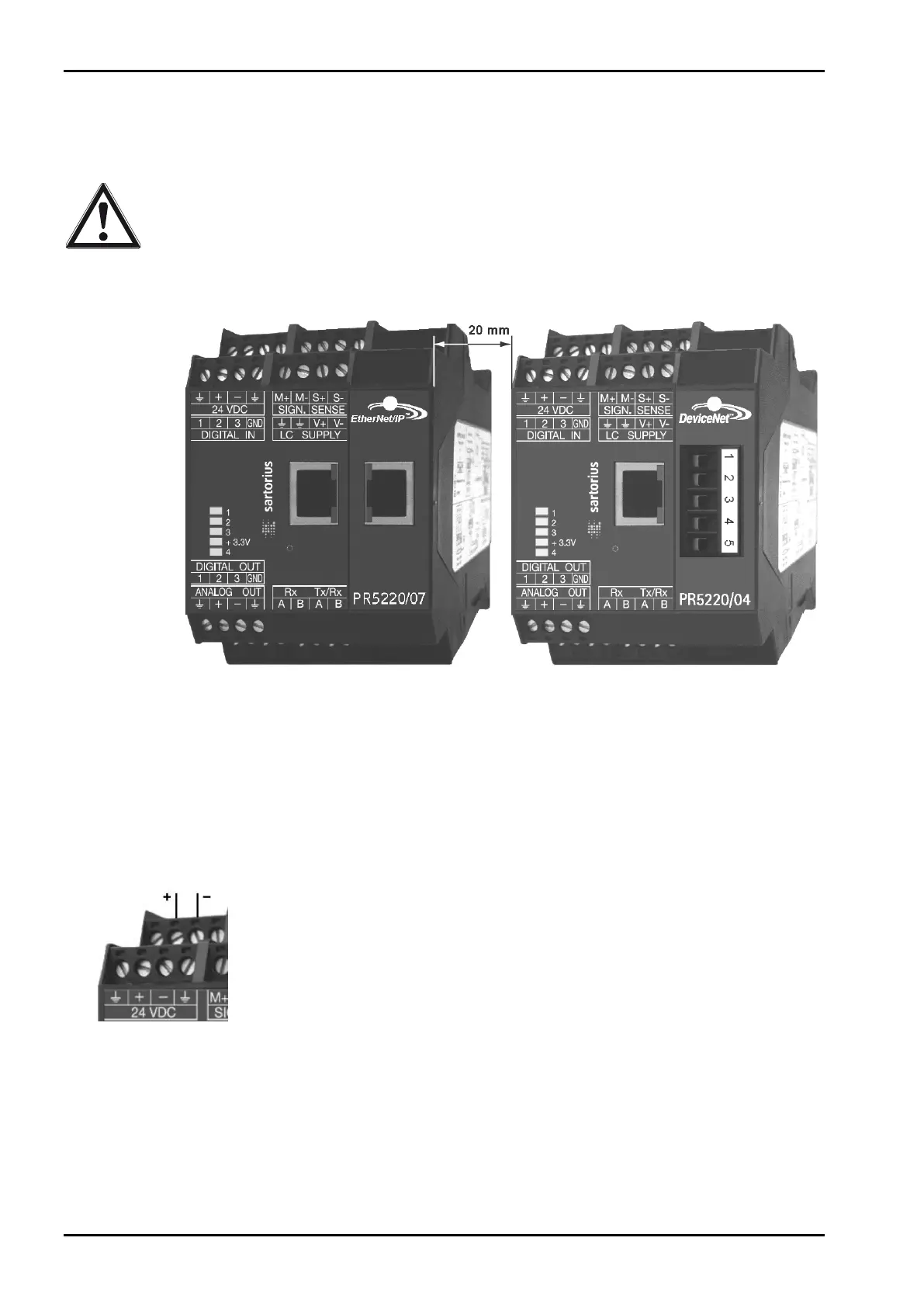

When mounting on the rail, make sure that the distance from other instruments left
and right of the module is at least 20 mm.
1.4.2 Electrostatically Sensitive Components
This instrument contains electrostatically sensitive components. For this reason, an equipotential bonding
conductor must be connected when working on the open instrument (antistatic protection).
1.4.3 Protective Earth
Connection to protective earth must be performed via the mounting rail.
1.4.4 Supply Voltage Connection
The supply voltage is 24V DC +10% / -15%.
Max. power consumption of
- PR 5220/00: 6.5 W
- PR 5220/01: 8.5 W
- PR 5220/04: 8.5 W
- PR 5220/06: 8.5 W
- PR 5220/07: 8.5 W
For connection to 230/115 V AC, an external power supply
(e.g. Sartorius PR 1624/00 or Phoenix Mini Power) is required.
