2.5 Display and Controls
2.5.1 Status LEDs

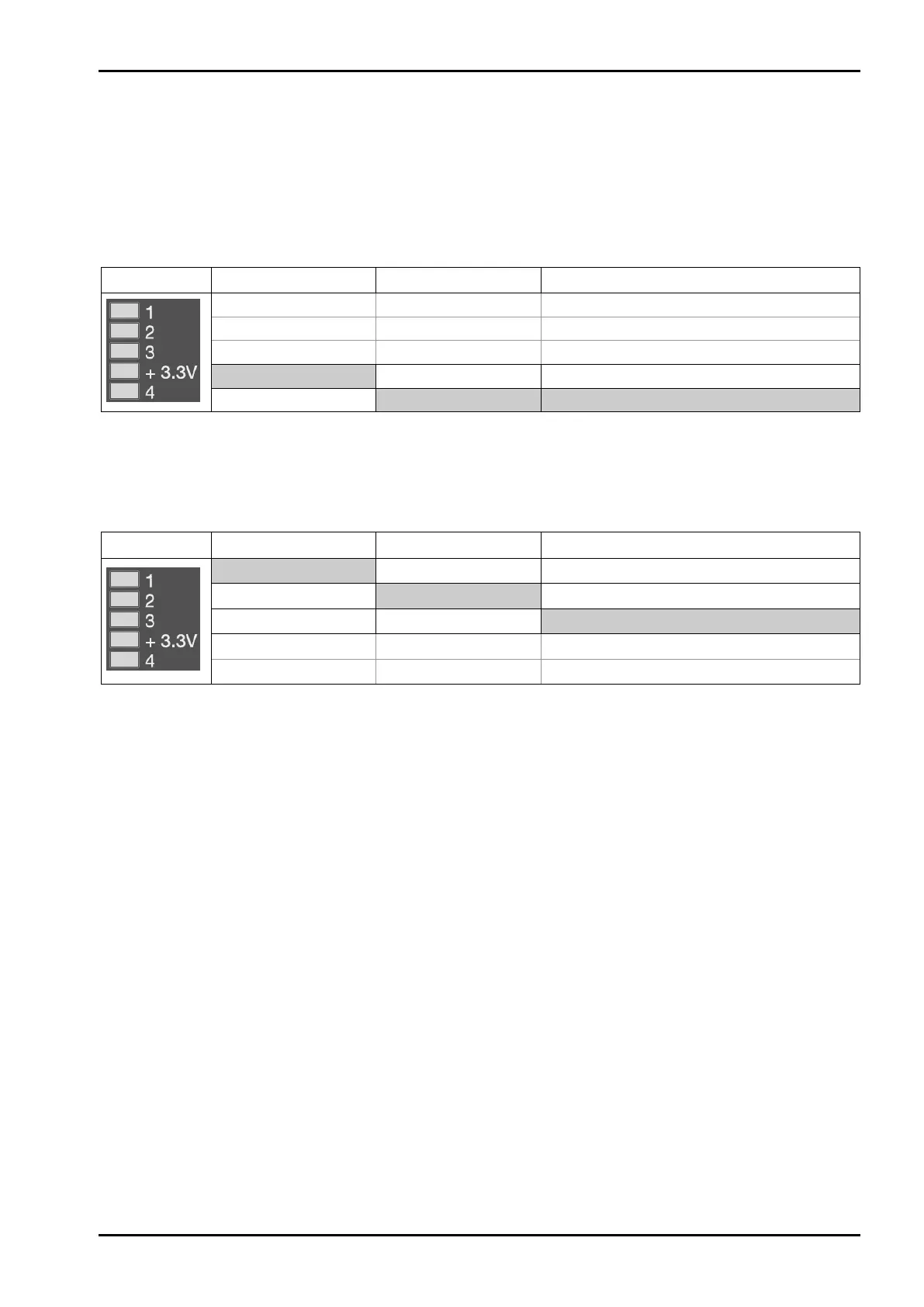

The instrument has 5 green LEDs for display of the operating or error status.
2.5.1.1 Power Supply, Bus Connection
Power on
Bus
Bus connection not provided
lit
lit * blinks 1 Hz
* The LED for the bus activity (PR 5220/01 a. PR 5220/04) is lit as soon as there is a connection. It continues
being lit, also when there is no communication, or when the physical connection is cut.
2.5.1.2 Weight Status Indicator
Standstill
Center zero
Below zero or above max. capacity
lit
lit
lit
Note:
The weight error status sees in Chapter 13.2.
