PR 5220 Instrument Manual Installing the Instrument
Sartorius EN-29
Testing the Measuring Circuit

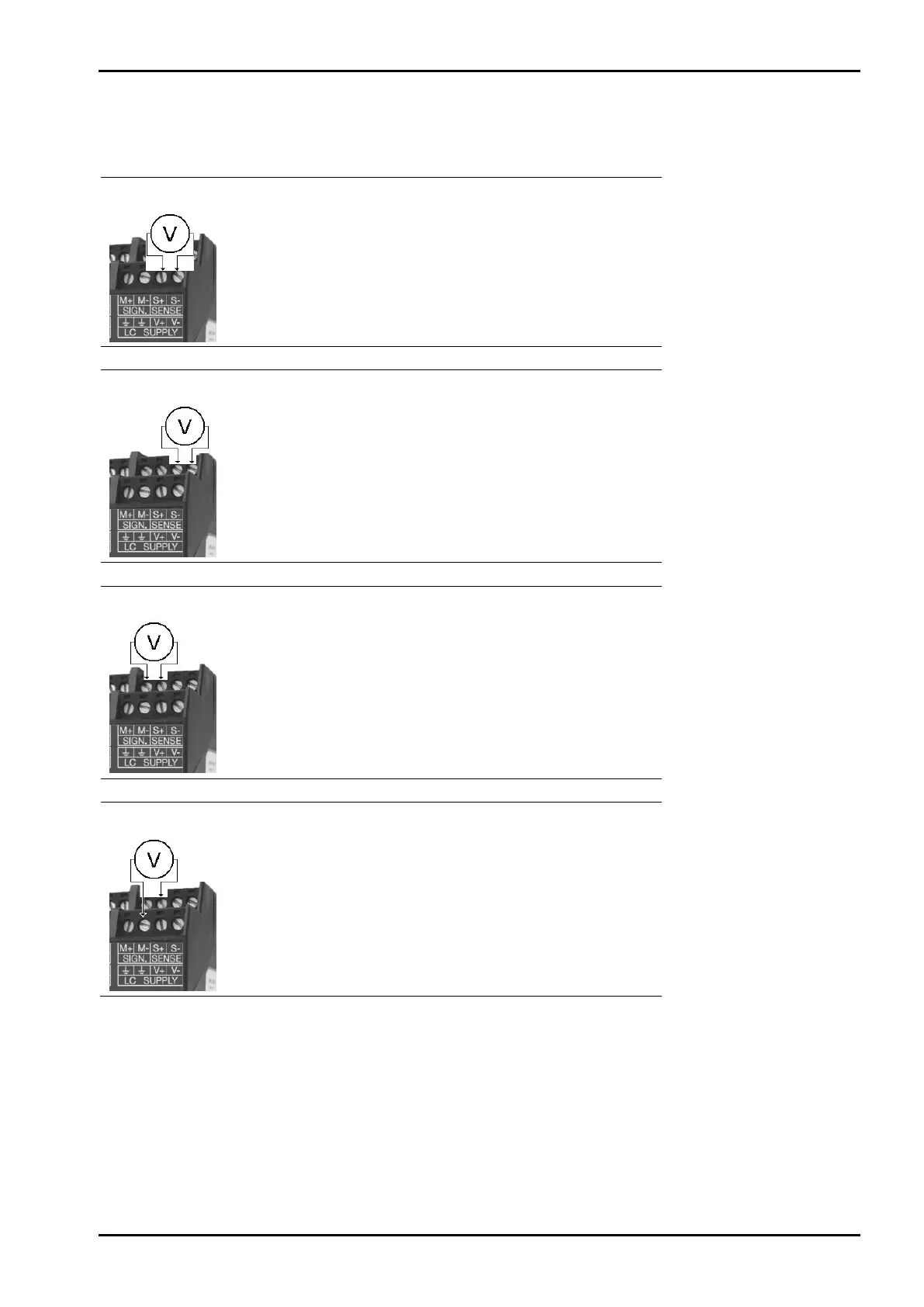

A simple test with the load cells connected can be carried out with a multimeter
(not with external supply or intrinsically safe load cell interface):
Supply voltage
12 V ±0,8 V
(symmetrical to housing GND)
Sense voltage
12 V ±0,8 V
(symmetrical to housing GND)
Measuring voltage
0 - 12 mV @ WZ mit 1,0 mV/V
0 - 24 mV @ WZ mit 2,0 mV/V
Measuring voltage
0 V ±0,5 V
