SLT12 User Manual
89

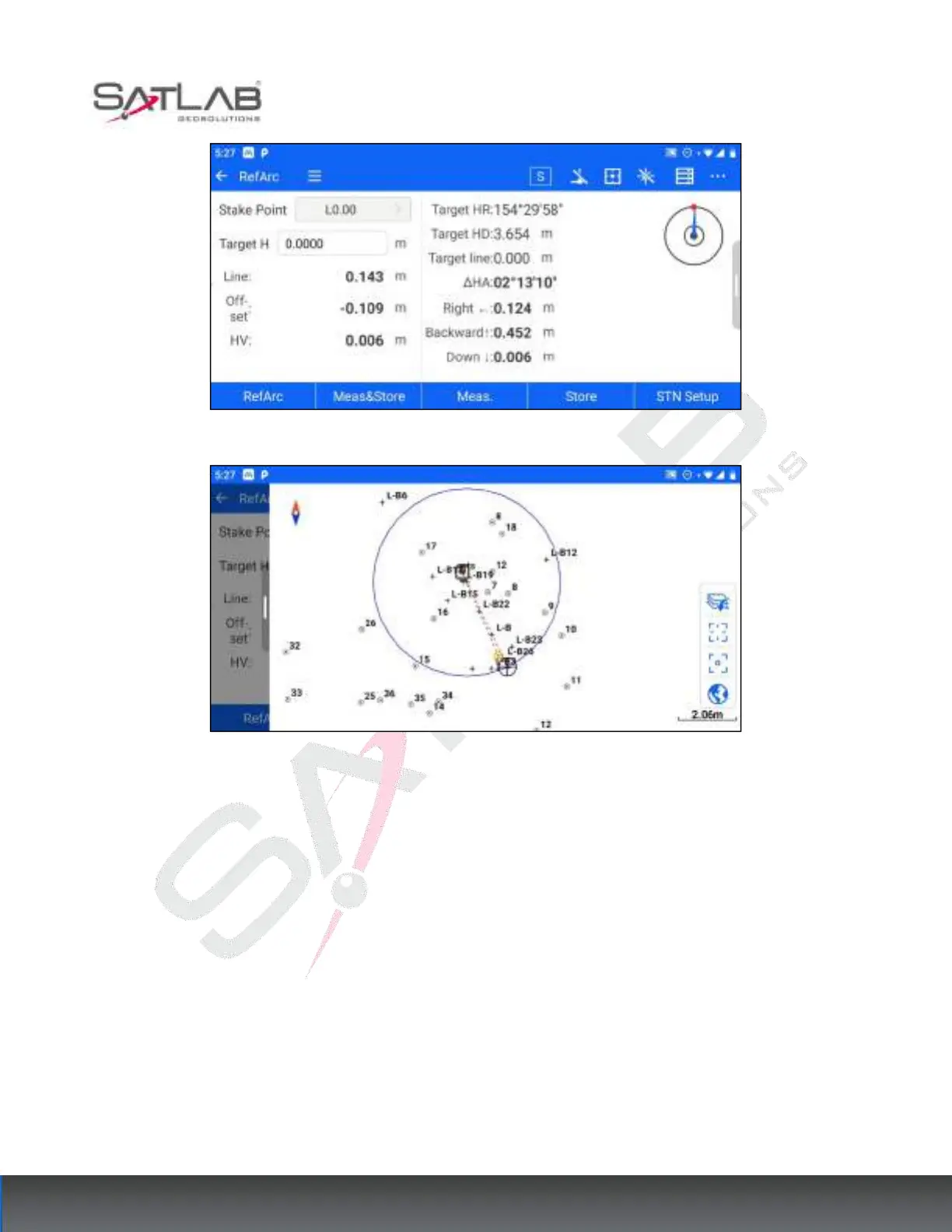

Figure 8- 37
Figure 8- 38
Stakeout chord
Select the chord item, set the closing difference, starting chord length, diameter distance, chord increment, and
other parameters, and then click OK to jump to the reference arc stakeout interface, click Save/Measure/ Store to
calculate the stakeout information, and expand the graphic interface on the right to display the current position,
prism points and the position relationship between the stakeout points.
"Misclosure ": see the parameters of the stakeout arc term.
"Start chord length": set to e, then the starting stakeout point is the position of the starting point in the reference
arc clockwise offset from the chord length e corresponding to the arc length, and 0 < e < diameter.
"Offset": see the parameters of the stakeout point item.
"Chord increment": set to f, then the stakeout interface can switch the stakeout point in steps of chord increment
f by the up point down point button, and 0<f< diameter.
